Benelli TRK 502 User Manual

EN
6
6 - 22
Periodic maintenance and adjustment

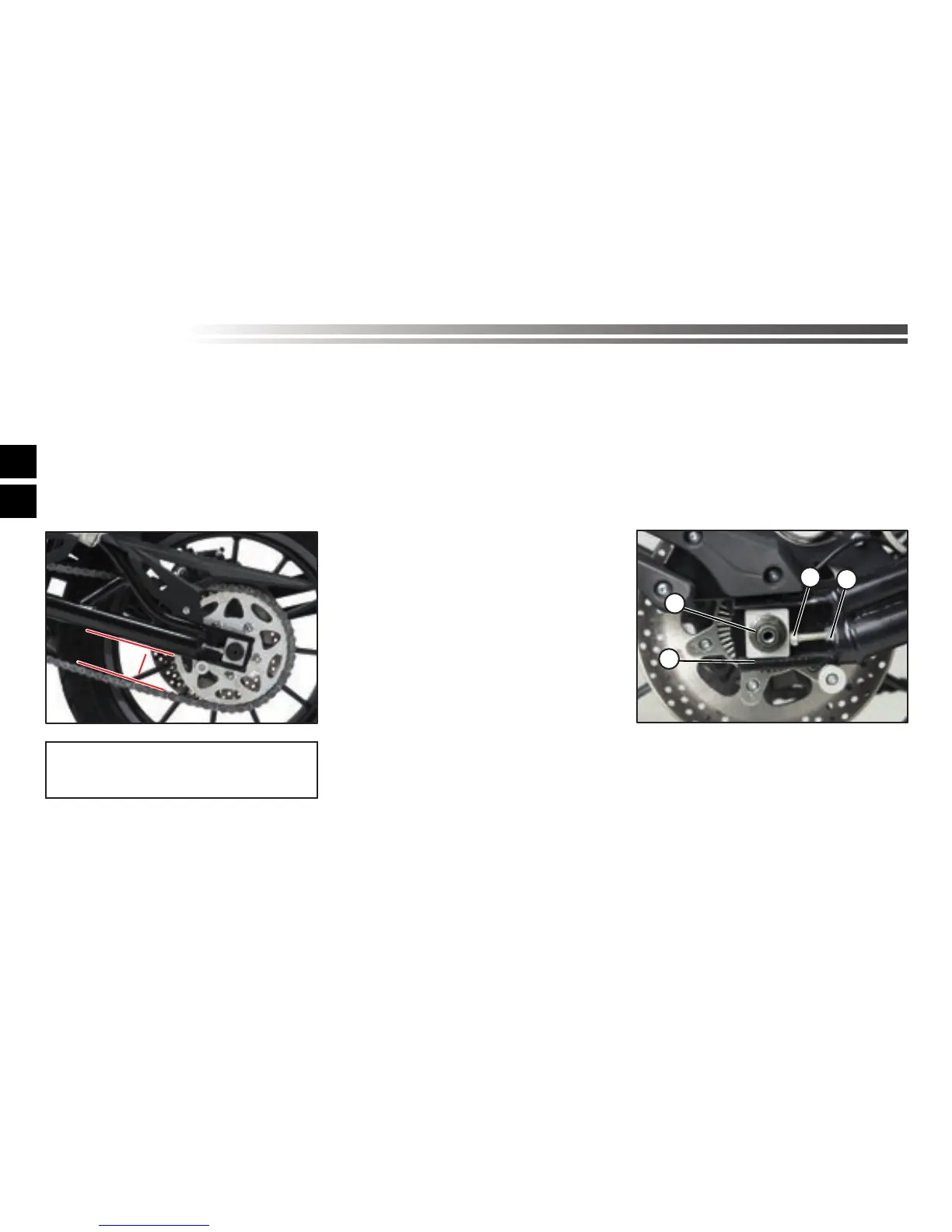

Drive chain slack
The drive chain slack should be checked befo-
re each ride and adjusted if necessary.
To check the drive chain slack
1. After stopping the engine, place the vehi-
cle on a rear stand on a horizontal surface and
with the gear in neutral.
2. Measure the drive chain slack as shown.
3. After running the rear wheel forward occur
else where in the free play chain: it must be
constan.
4. If the drive chain slack is incorrect, adjust it
as follows.
NOTICE
Using the motorcycle with the chain in bad
condition and badly adjusted may cause
accidents.
If you notice any operating anomaly on the
chain, such as excessive or suspicious noi-
ses, or excessive slack, go to an authorised
Benelli workshop.
If you suspect that there is a serious mal-
function with the chain, stop the bike im-
mediately and call your nearest Benelli au-
thorised workshop.
To adjust the drive chain slack
1. Loosen the wheel pin nut and lock nut on
each side of the swingarm.
2. To tension the transmission chain, turn the
tension adjustment bolt on each side of the
swingarm (clockwise).
3. To loosen the transmission chain, turn the
tension adjustment bolt on each side of the
swingarm (anticlockwise) and push the rear
wheel forwards.
1. Axle nut
2. Locknut
3. Drive chain slack adjusting bolt
4. Distance
Drive chain slack:
10 - 15 mm (0.40 - 0.60 in)
1
3
2
4

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
