Instrument and control functions
3 - 3
EN
3

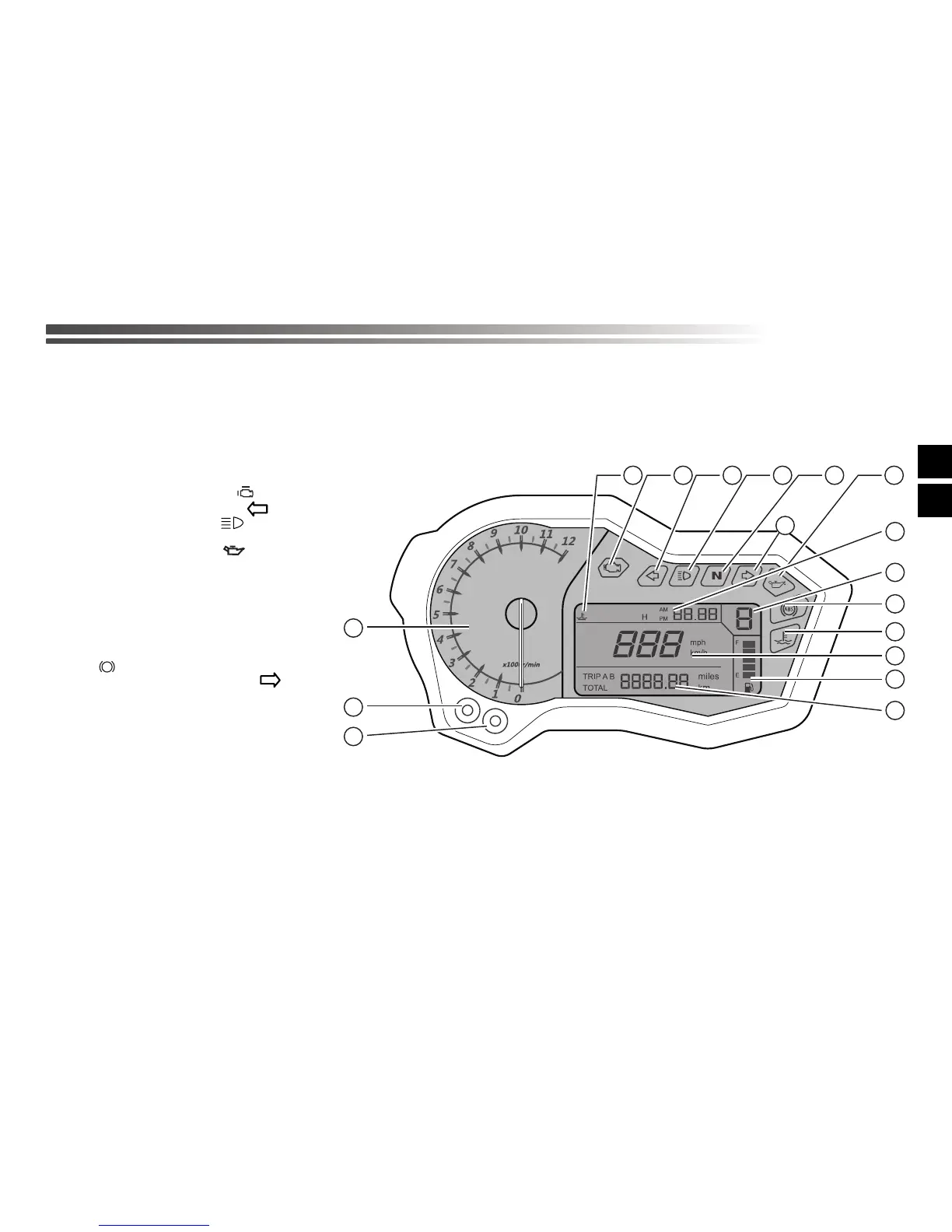

Multi-function meter unit and Indica-
tor lights and warning lights
1. Tachometer (3-4)
2. “SELECT” button (3-5)
3. “RESET” button (3-5)
4. Coolant temperature (3-4)
5. Engine trouble warning light “ “(3-4)
6. Left turn signal indicator light ” “ (3-4)
7. High beam indicator light “ “ (3-4)
8. Neutral indicator light “N” (3-4)
9. Oil pressure warning light “ “ (3-4)
10. Digital Clock (3-4)
11. Transmission gear display (3-5)
12. Total/partial kilometre counter (3-5)
13. Water temperature alarm
14. Speedometer (3-4)
15. Fuel gauge (3-4)
16. Anti-lock Brake System (ABS) warning
light “ “ (3-5)
17. Right turn signal indicator light “ “ (3-4)
54 6 7 8 9
16
11
10
13
14
15
12
2
1
3
17
ABS

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
