Benelli TRK 502 User Manual

3 - 6

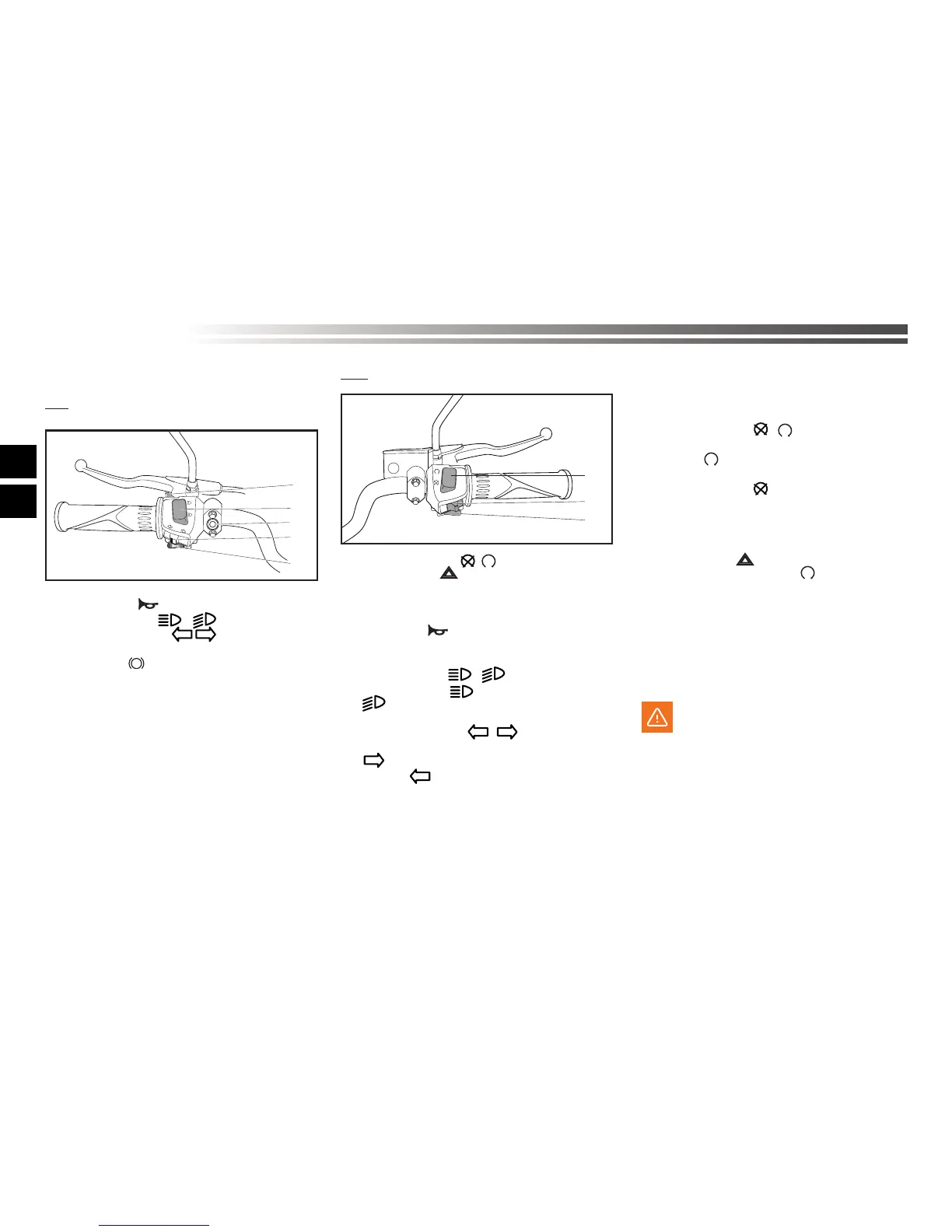

Instrument and control functions
EN
3
Handlebar switches
Left
1. Horn switch “ ”
2. Dimmer/switch “ / “
3. Turn signal switch “ “
4. Passing button
5. ABS switch
Righ
1. Run/Start switch “ / “
2. Hazard switch “ “
3. Electric ignition button
Horn switch “ “
Press this switch to sound the horn.
Dimmer/switch “ / “
Set this switch to “ ” for the high beam and
to “ ” for the low beam.
Turn signal switch “ / “
To signal a right-hand turn, push this switch
to “ “. To signal a left-hand turn, push this
switch to “ ”. When released, the switch
returns to the center position.
To cancel the turn signal lights, push the swi-
tch in after it has returned to the center po-
sition.
Passing button
Press this button (daytime) to enable lashing
lights.
Run/Start switch “ / ”
To crank the engine with the starter, set this
switch to “ ”, See page 5-1 for starting in-
structions prior to starting the engine.
Set this switch to “ ” to stop the engine in
case of an emergency, such as when the vehi-
cle overturns or when the throttle cable is
stuck.
Hazard switch “ “
With the ignition key set to “ ” use this switch
to switch on the emergency lights (simultane-
ous lashing of all of the direction indicators).
The emergency lights are used in case of
emergency, to advise the other road users
that your vehicle is about to stop in dange-
rous trac areas.
WARNING
Do not use the emergency lights when
the engine is o; this is to stop the battery
from becoming at.
Electric ignition button
Press this button to start the engine with the
starter device.
1
2
3
2
5
4
3
1
ABS
ABS

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
