Benelli TRK 502 User Manual

3 - 14
Instrument and control functions
EN
3

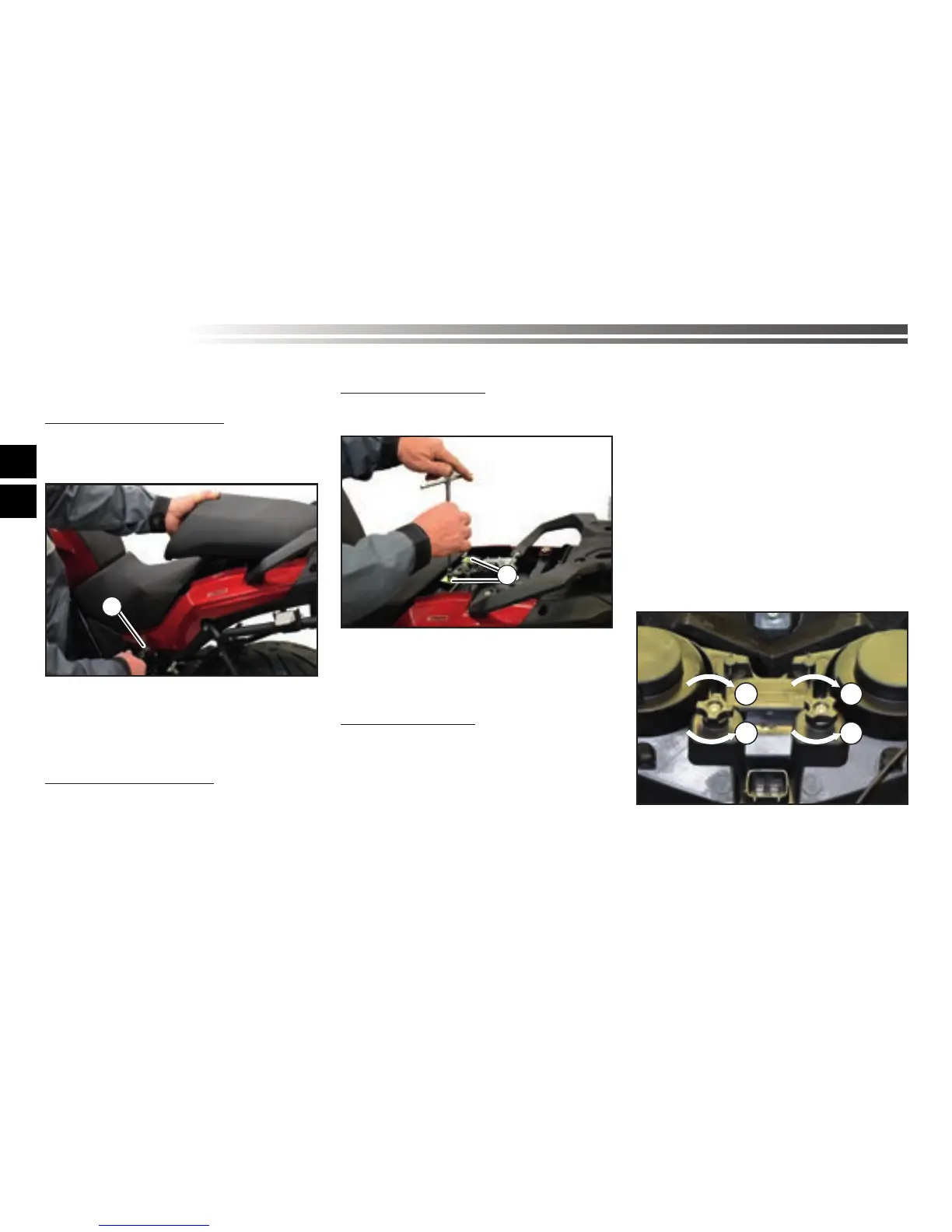

Seats
Passenger seat
To remove the passenger seat
1. Insert the key into the seat lock, and then
turn it clockwise.
1. Seat lock
2. Lift the front of the passenger seat and pull
it forward.
To install the passenger seat
1. Insert the projections on the rear of the pas-
senger seat into the seat holders as shown,
and then push the front of the seat down to
lock it in place.
Rider seat
To remove the rider seat
1. Remove the passenger seat.
2. Unscrew the 2 screws.
3. Remove the rider seat.
To install the rider seat
1. Proceed in reverse order.
Adjusting the headlight beams
The headlight beam adjusting knobs are used
to raise or lower the height of the headlight
beams. It may be necessary to adjust the he-
adlight beams to increase visibility and help
prevent blinding oncoming drivers when car-
rying more or less load than usual.
Obey local laws and regulations when adju-
sting the headlights.
To raise the headlight beams, turn the knobs
in direction (A).
To lower the headlight beams, turn the knobs
in direction (B).
1
1
1
2
A A
B B

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
