If the torque values for a previous motorised movement have been stored in memory, these values
can be viewed in the next line for reference.
Example: in this example, the torque reading on the initial move-
ment was 12% and the torque on the most recent movement
is 18%.
The two values can be compared to determine whether any
preventive maintenance is required.
Storing motorised movement torque values
To save torque values for a motorised movement, select SAVE in the menu and then select:
torque => ref (yes).
Reference torque readings take the torque values for the most recent motorised movement.
If an error occurs, select: torque => ref (no) to restore the existing
reference torque values.
Values are only stored in memory when the user exits
the CHANGE menu confirms (change ok?)
Displaying the position / torque curve for the most recent motorised movement

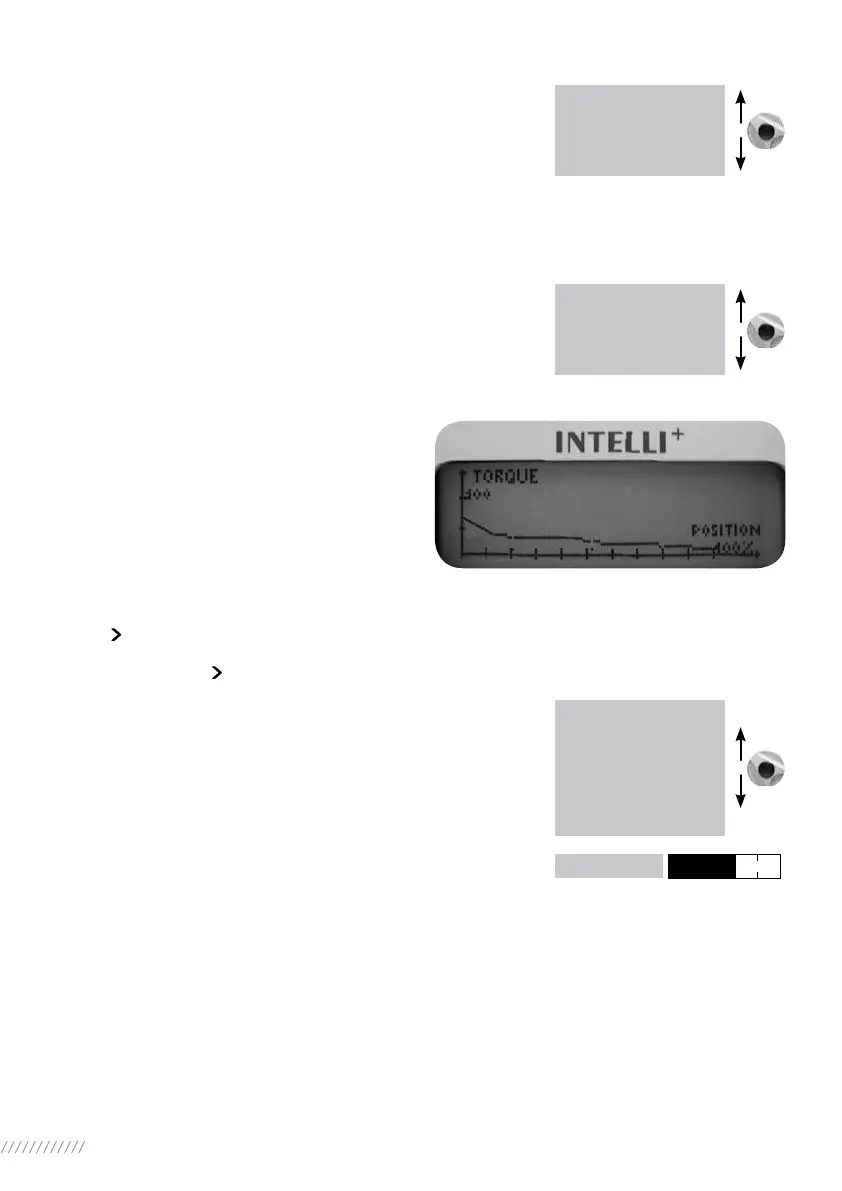

Select torque curve in the torque menu and
turn to OK to confirm.
Select open or close movement and then turn
to OK to confirm.
The curve is shown on the display screen
with position from 0 to 100% and torque from
0 to 100% (100% is the maximum torque value
on the actuator nameplate)
19 CUSTOMIZING STATUS AND CONTROL INDICATIONS
19.1
LOCAL INDICATION
The local display can be configured as follows:
Invert display: the display can be inverted (rotated 180
degrees). Select Change in the menu, then signaling, then local
then invert display (yes).
Display torque: select this option to have the real-time torque
value displayed on the actuator display at the same time as the
position.
Select Change in the menu, then signaling, then local then
display torque (yes).
Red & Green LEDs: in the standard configuration, the red light indicates that the valve is closed and
the green light means it is open. The assigned colours can be changes so that the red light indicates
that the valve is open and the green one means it is closed.
Select change in the menu, then signaling, then local then lights: Red=(open)
To keep the valve open and valve closed labels in the correct position on the
indicator, you must also open the cover with the window and turn round the display indicator plate.
CLOSING%
18
ref.12
SAVE
torque => ref (no)
torque => ref (yes)
LOC INDICATION
return
opposite display
torque display
lights
return
Torque 60%
