2 PRODUCT OVERVIEW
Manual override
All INTELLI+ actuators incorporate a handwheel for manual control with an automatic clutch system
with motor-drive priority. The direction of rotation is normally clockwise for closing unless otherwise
specified.

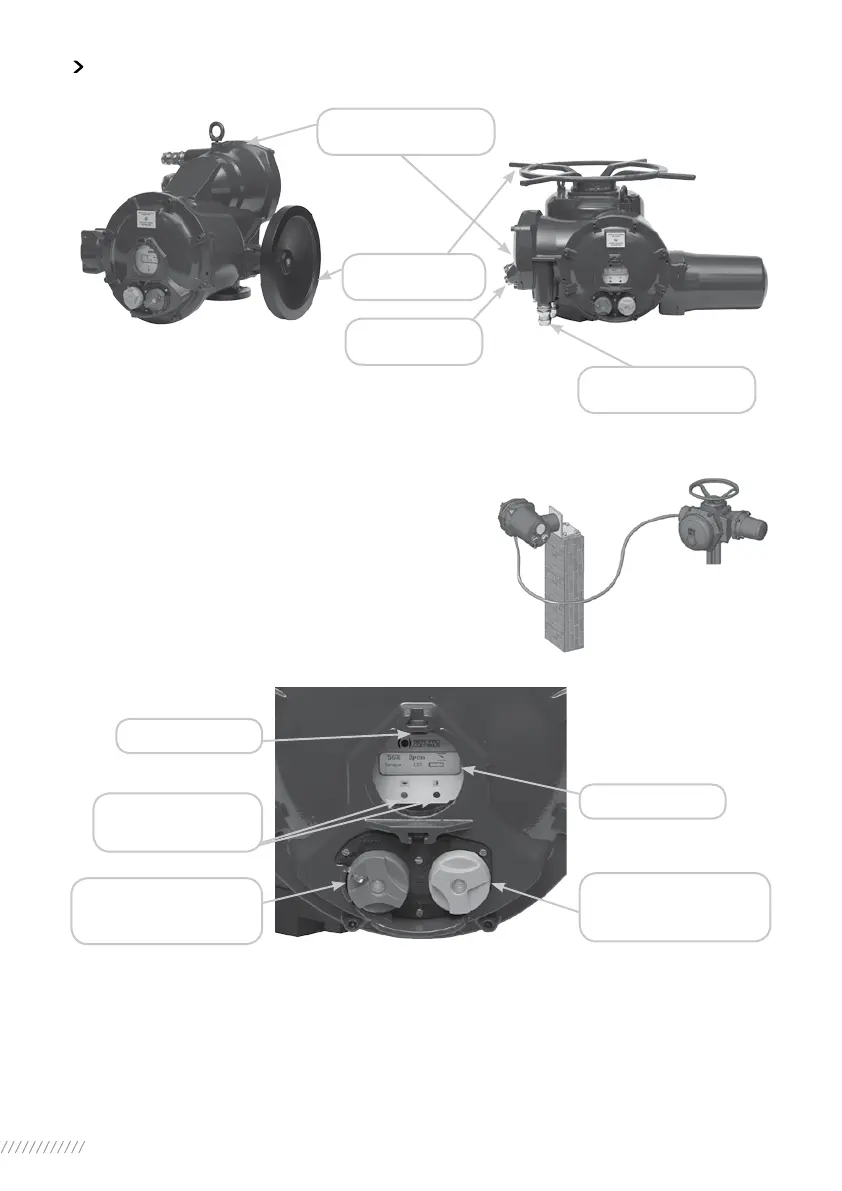

Remote control box configuration
Emergency
handwheel
Blue selector
Open/Close &
Up-Down Scroll
display
Infrared port
Open & closed
valve indication
LEDs
Red selector
Local/Distance/Stop
& validation (OK)
Terminal
compartment
Fieldbus
connection
Power and hardwired
controls connection
