Digital inputs (DI) Assignment
Device settings | Setup | Inputs | Digital Inputs | Assignment
The menu Assignment determines which function is executed when the digital in-
put is switched. In the "ACTIVE" state, the selected function is executed. The active
state is initiated by closing the digital input.
The functions Standard Adjust / Lower Adjust / Upper Adjust are used for external
control of the adjustment. The parameters of the adjustment function are thereby
used (Device settings | Setup | Calibration | Adjust).
1
2
3
4
5
DI-2 Assignment: Selection of function
DI-1 Assignment: Selection of function
DI-1 Assignment state
DI-2 Assignment state
Selection box Function

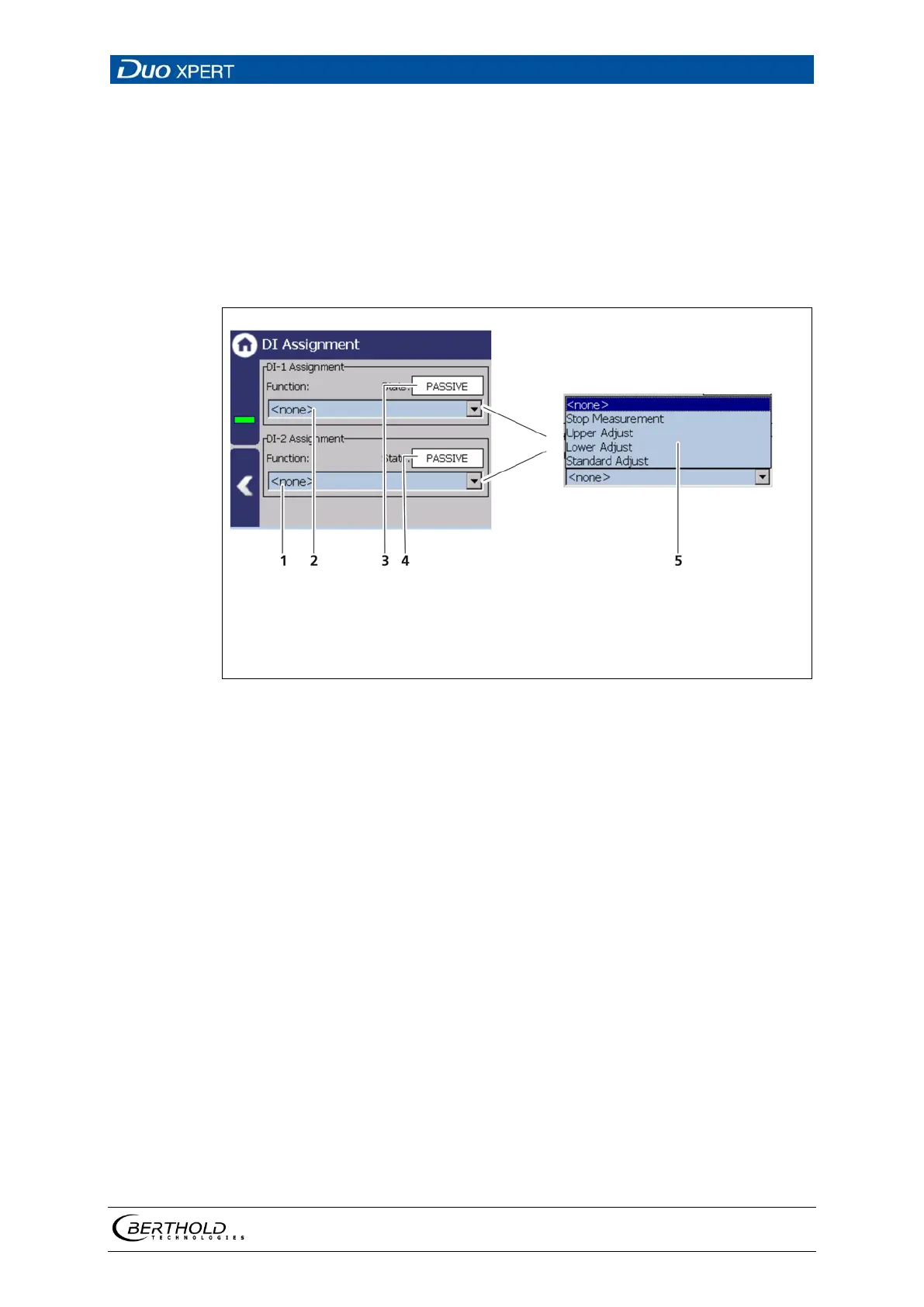

Fig.
115 DI Inputs Assignment
