Berthold Duo Xpert - Assignment clamp block slave module

5 Electric Installation LB 470 Level
56
56925BA2 Rev. 03, 11/2017
5.6.3 86BAssignment clamp block slave module

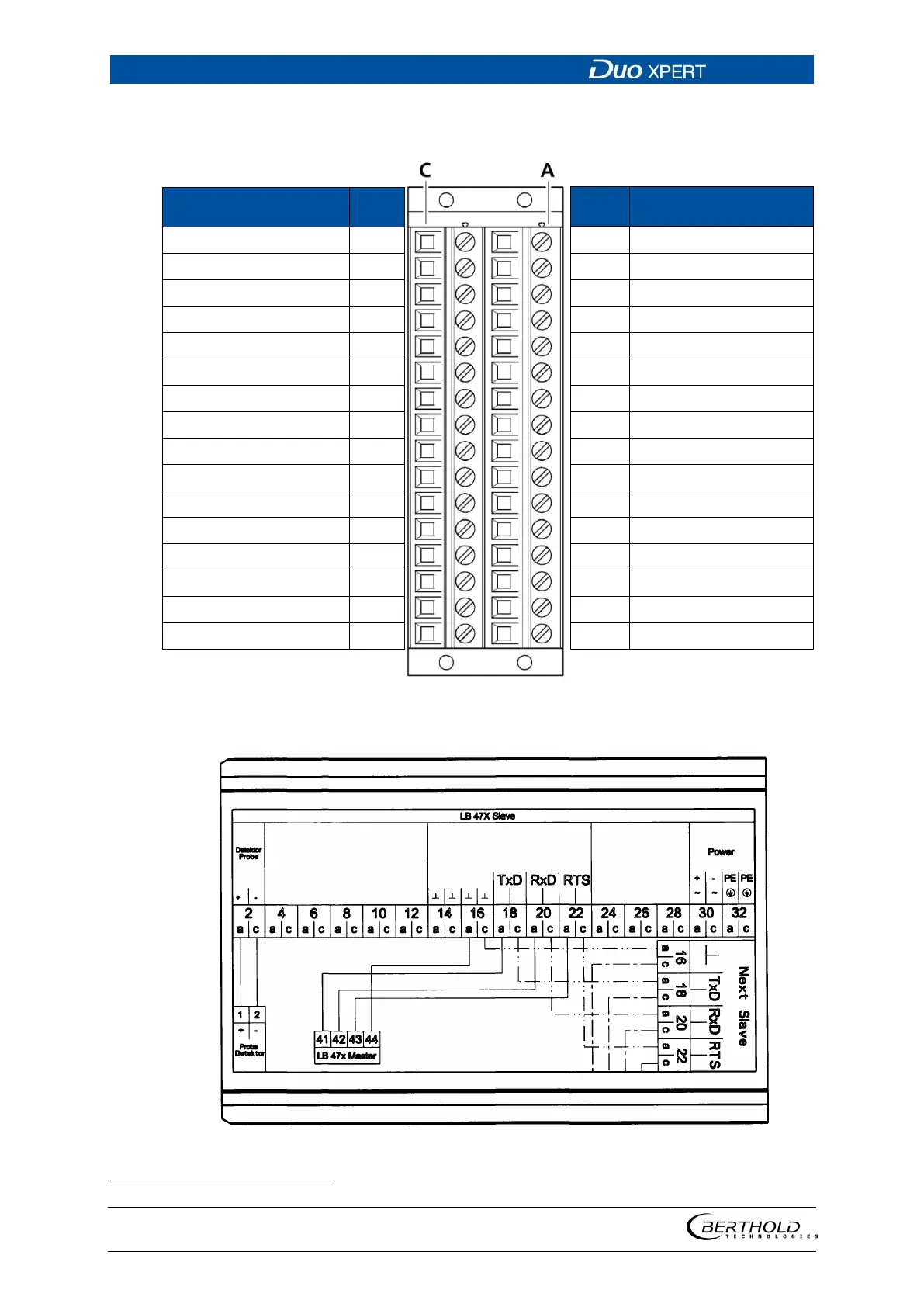

Fig. 28 Assignment clamp block slave module
Fig.29 Terminal assignment (display on slave module)
1
optional
Pin
Signal
A - 2 DETECT. SLAVE +15 V
A - 4 not assigned
A - 6 not assigned
A - 8 not assigned
A - 10 not assigned
A - 12 not assigned
A - 14 GND
A - 16 GND
A - 18 RTS to MASTER/SLAVE 0F
1
A - 20 RxD to the MASTER/SLAVE
A - 22 TxD to the MASTER/SLAVE
A - 24 not assigned
A - 26 not assigned
A - 28 not assigned
A - 30 Main AC, DC 24 V +
A - 32 Protective conductor PE
Signal
Pin
DETECTOR SLAVE GND C - 2
not assigned C - 4
not assigned C - 6
not assigned C - 8
not assigned C - 10
not assigned C - 12
GND C - 14
GND C - 16
RTS to the SLAVE C - 18
RxD to the SLAVE C - 20
TxD to the SLAVE C - 22
not assigned C - 24
not assigned C - 26
not assigned C - 28
Main AC, DC 24 V – C - 30
Protective conductor PE C - 32
