11.2 Decommissioning 19" subrack
1
2
3
RJ45 connector (network)
Clamps terminal board
Clamp blocks
4
5
PE cable
Screw Connections

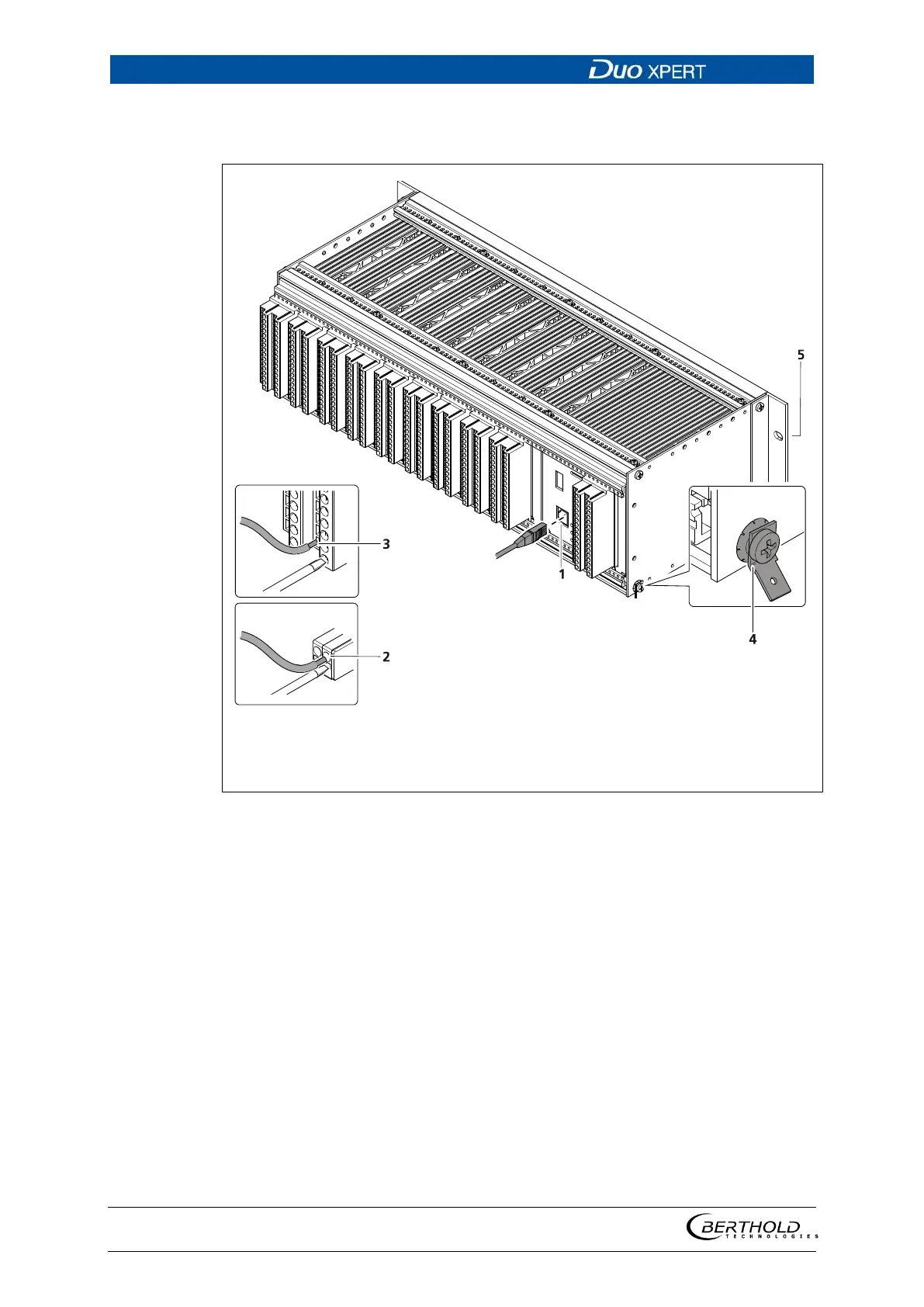

Fig.
150 Decommissioning wall housing
1. De-energise the device.
2. Remove the network plug (Fig. 150, item 1).
3. Remove all lines from the terminal board (Fig. 150, item 2) or the clamp
blocks (Fig. 150, item 3).
4. Remove the PE cable (Fig. 150, item 4).
5. Remove the connections (Fig. 150, item 5) and pull the subrack from the 19"
rack.
