Berthold Duo Xpert - Assignment clamp block master EVU

LB 470 Level 5 Electric Installation
56925BA2 Rev. 03, 11/2017
55
5.6.2 85BAssignment clamp block master EVU

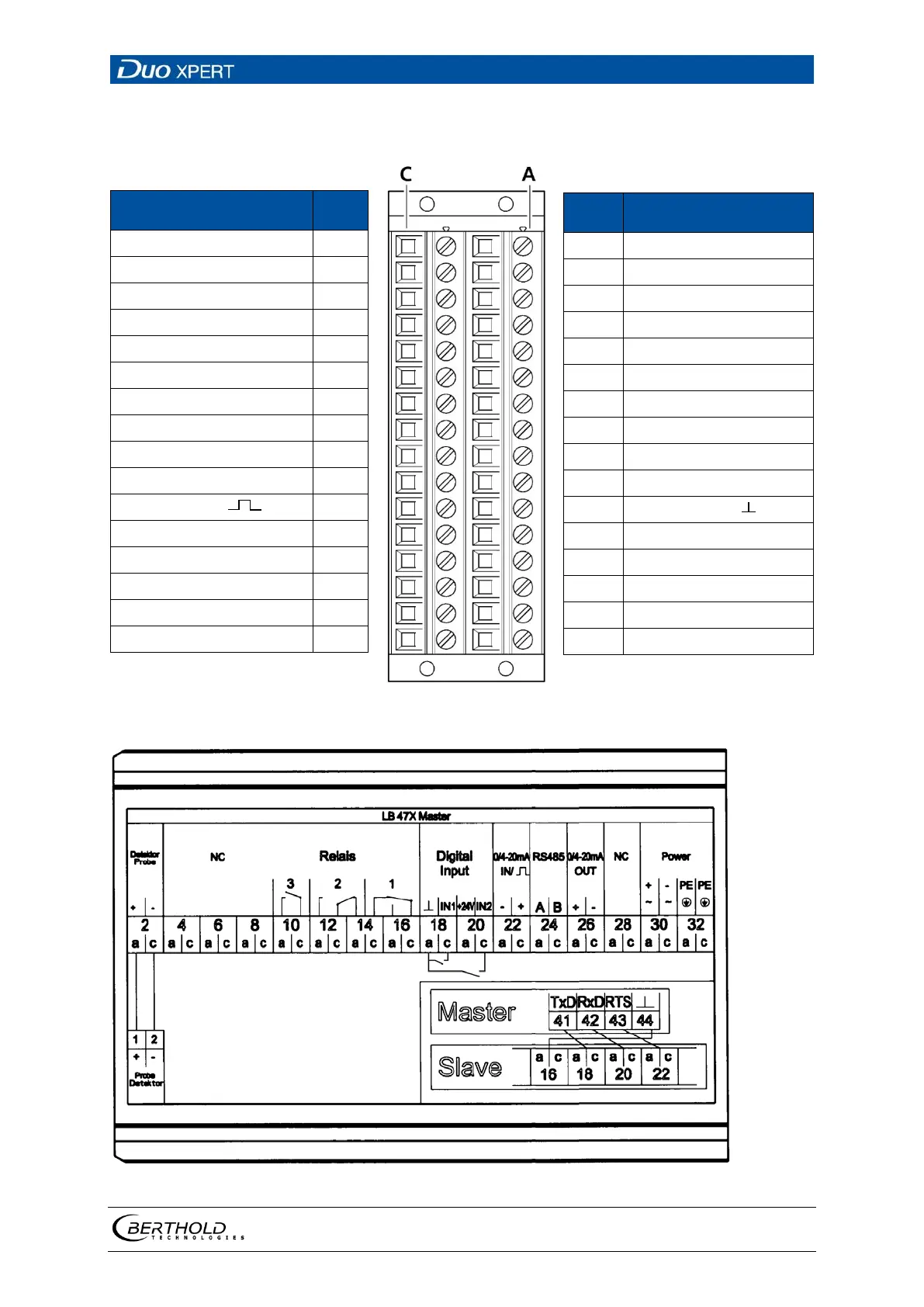

Fig. 26 Assignment clamp block master EVU
Fig. 27 Terminal assignment master EVU (display on the module)
Pin
Signal
A - 2 DETECTOR +
A - 4 not assigned
A - 6 not assigned
A - 8 not assigned
A - 10 RELAY 3 NO
A - 12 RELAY 2 NO
A - 14 RELAY 2 NC
A - 16 RELAY 1 NO
A - 18 DIGITAL IN GND
A - 20 + 24 V
A - 22
CURRENT IN – ( )
A - 24 RS 485 A
A - 26 CURRENT OUT +
A - 28 not assigned
A - 30 100-240 V AC, 24 V DC +
A - 32 Protective conductor PE
Signal
Pin
DETECTOR GND C - 2
not assigned C - 4
not assigned C - 6
not assigned C - 8
RELAY 3 COM C - 10
RELAY 2 COM C - 12
RELAY 1 NC C - 14
RELAY 1 COM C - 16
DIGITAL IN 1 C - 18
DIGITAL IN 2 C - 20
CURRENT IN + ( )
C - 22
RS 485 B C - 24
CURRENT OUT – C - 26
not assigned C - 28
100-240 V AC, 24 V DC – C - 30
Protective conductor PE C - 32
