3 System Description
3.1 Overview
The level measuring device LB 470 is an industrial measuring system for the con-
tactless and continuous determination of the level of a product in a container.
A complete measuring system consists of the following components:
• Evaluation unit DuoXpert LB 470
• Source
• Shields
• Point detector / rod detector(s)
These instructions concern the operation of the evaluation unit DuoXpert LB 470
(Fig. 1, item 6). The operation of other system components is part of the independ-
ent instructions of the respective system components.
The EVUs are standard equipment in switch rooms with 19" subracks or switch-
boards.
1
2
3
4
5
6
7

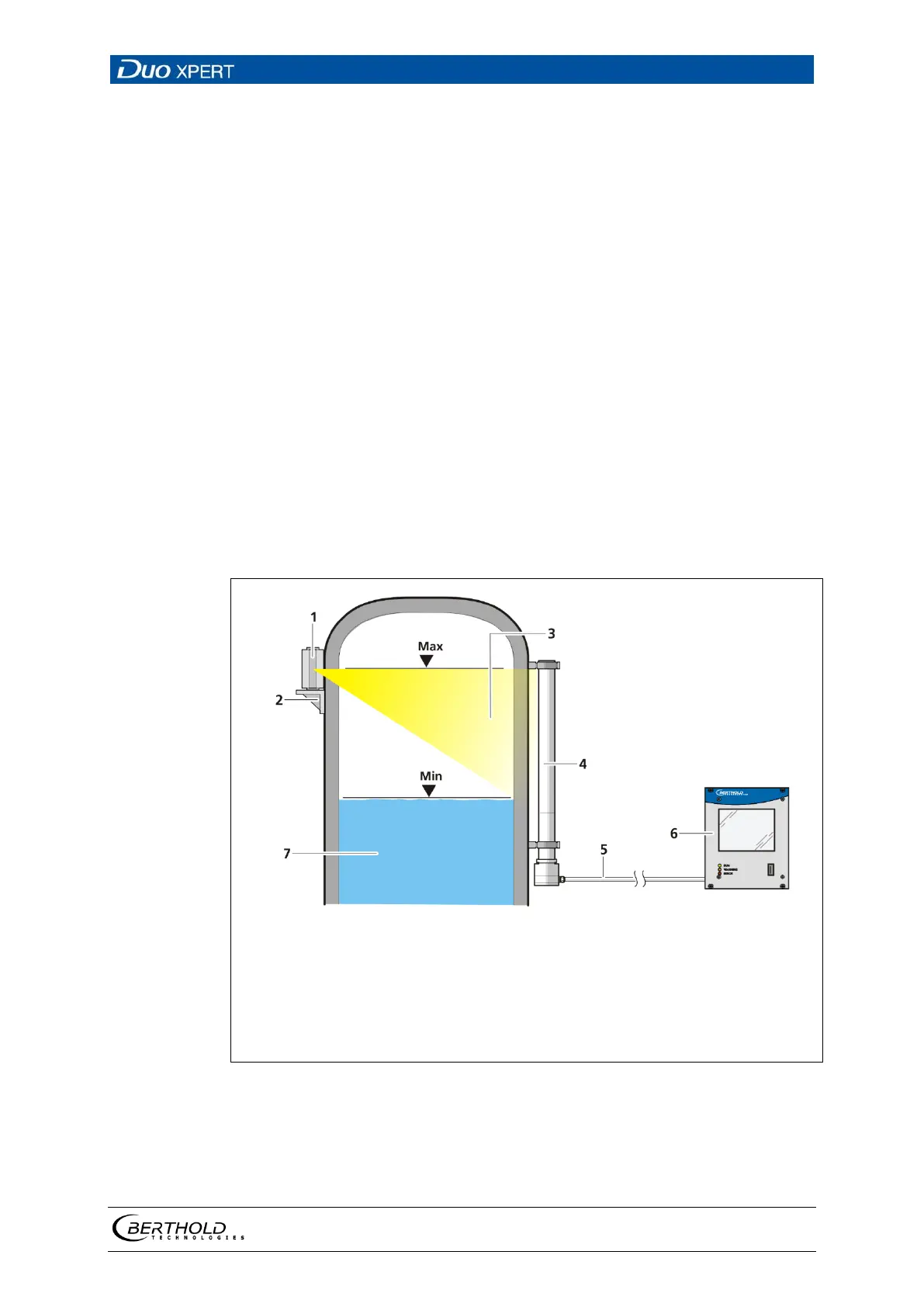

Point source shield
Mounting base
Radiation beam
Rod detector
Measurement line to master EVU
Master EVU
Product
Fig.
1 Example measurement arrangement
