5.2 Electric connection in the wall housing
j DANGER
Danger to life from electric shock!
 The installation may only be carried out by a qualified electrician.
 Please adhere to the relevant safety regulations.
 Installation/maintenance may only be carried out if the device has been de-
energised.
 Only open the device when free of voltage.
In case of an electric shock, carry out first aid measures and immediately call an
emergency service.
1
2
3
4
5
Fixing screws
Locking
Marked voltage supply
Opening terminal connection
Stripped wire
6
7
8
9
Cable gland
Counternut cable gland
Plugs
RJ45 connector (network)
Fig.

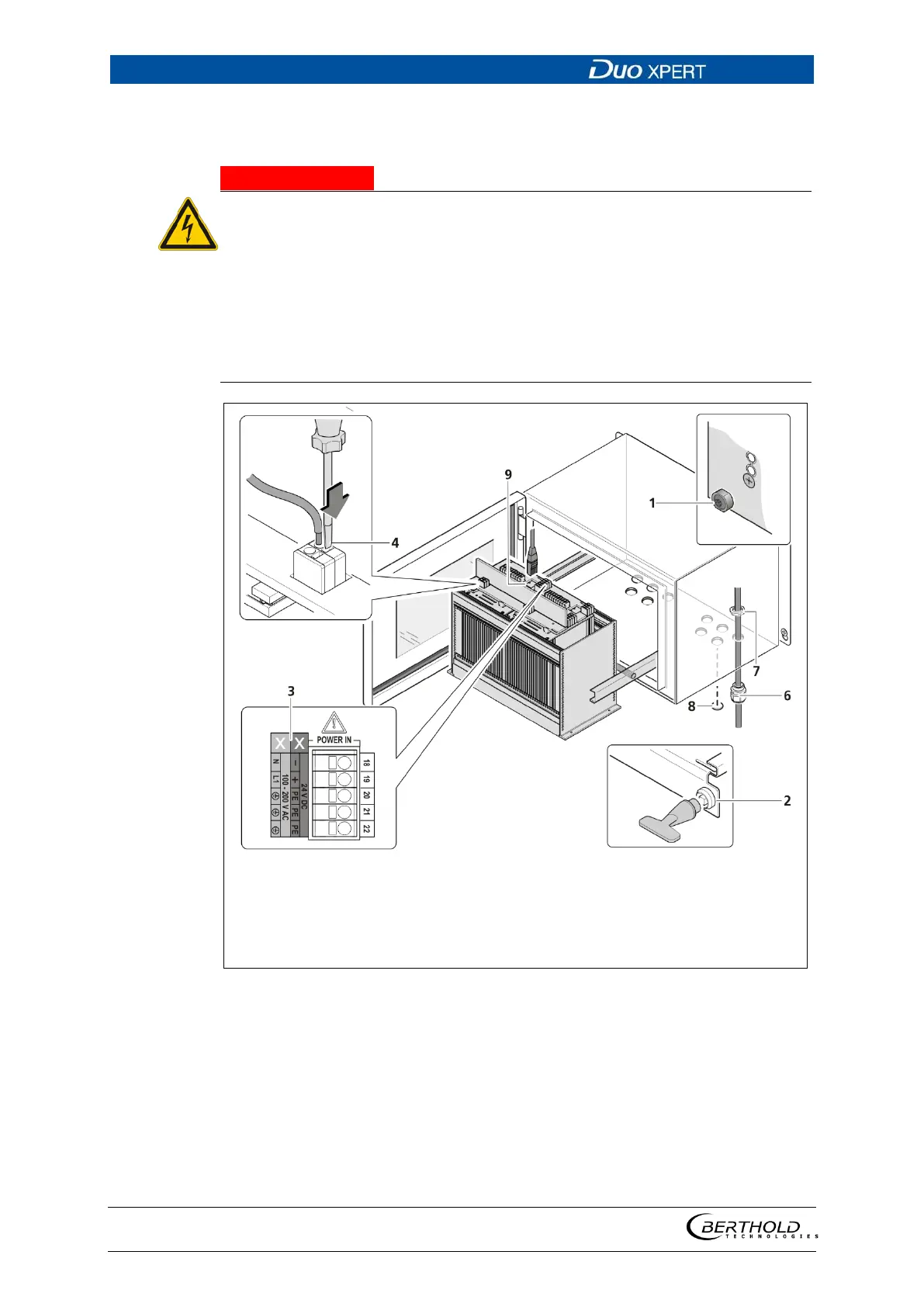

20 Electrical connection in the wall housing (Ex.: master-master)
1. Make sure that the locking bolts (Fig. 20, item 1) of all modules are tight-
ened in order to prevent slipping.
2. Loosen the lock (Fig. 20, item 2) using the supplied square key and pull the
subrack out.
3. Fold the subrack downward cautiously.
4. Run the cables through the cable glands (Fig. 20, item 6) through the open-
ings of the wall housing and through the counternut cable glands (Fig. 20,
item 7).
