Berthold Duo Xpert - 5 B F Ront;Rear View Master EVU

LB 470 Level 3 System Description
56925BA2 Rev. 03, 11/2017
23

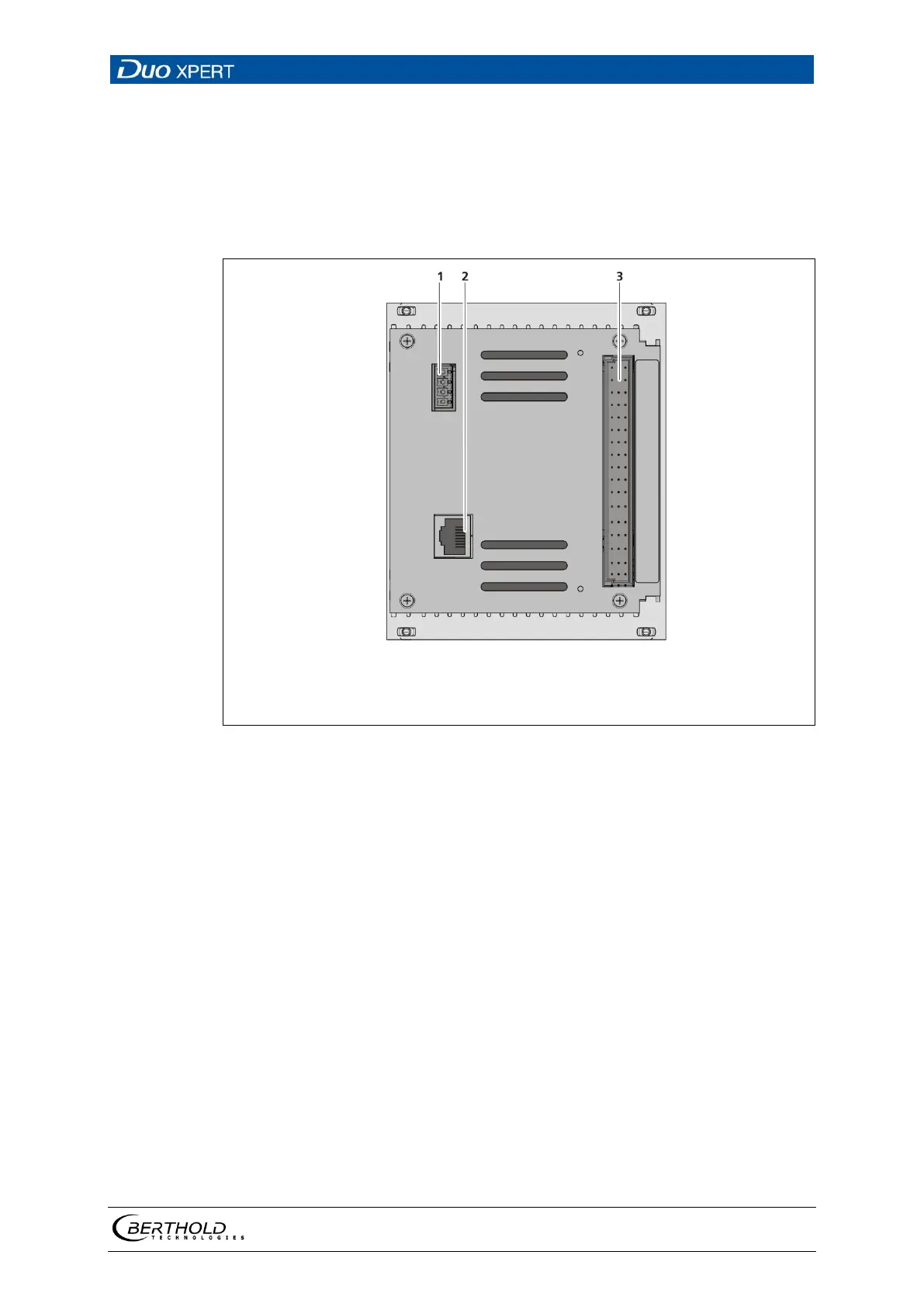

Rear view master EVU
The following connections are located on the back of the EVU:
• Master/slave connector, 4-pin
• RJ45 socket for Ethernet
• 32-pin plug connector
1
2
3
Master/slave 4-pin connector
RJ45 socket for Ethernet
32-pin plug connector
Fig.
4 Front/rear view master EVU
