BestCode Next Series 8 Technical Manual October 2022 Page 231 of 290

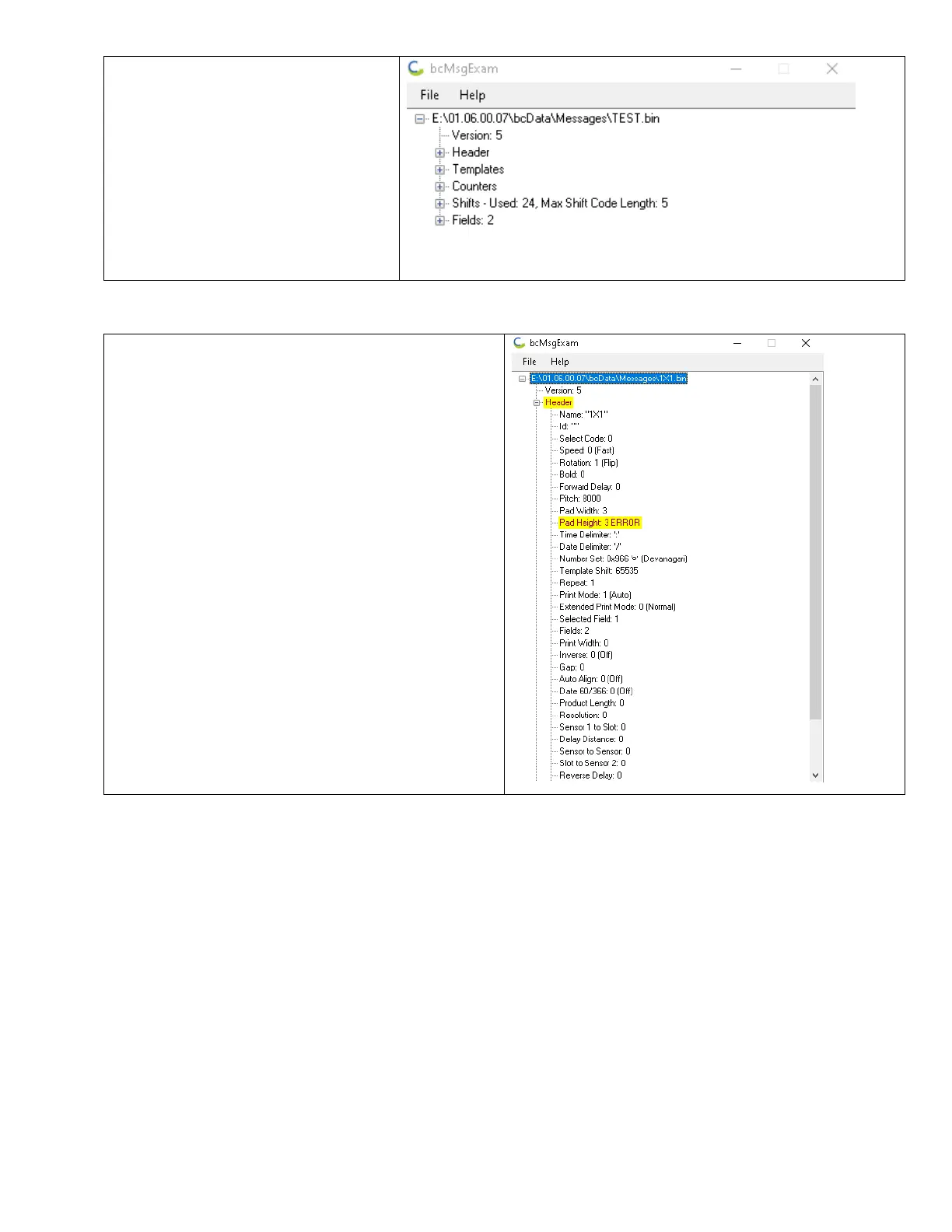

3. Message Exam view

Identifying erroneous message files

1. Bad message files will have Red text and Yellow

highlighting when viewed in the Exam tool.

2. Erroneous message files should be deleted from the

Printer and recreated identically. If the new message is

also corrupt, contact BestCode Support.
