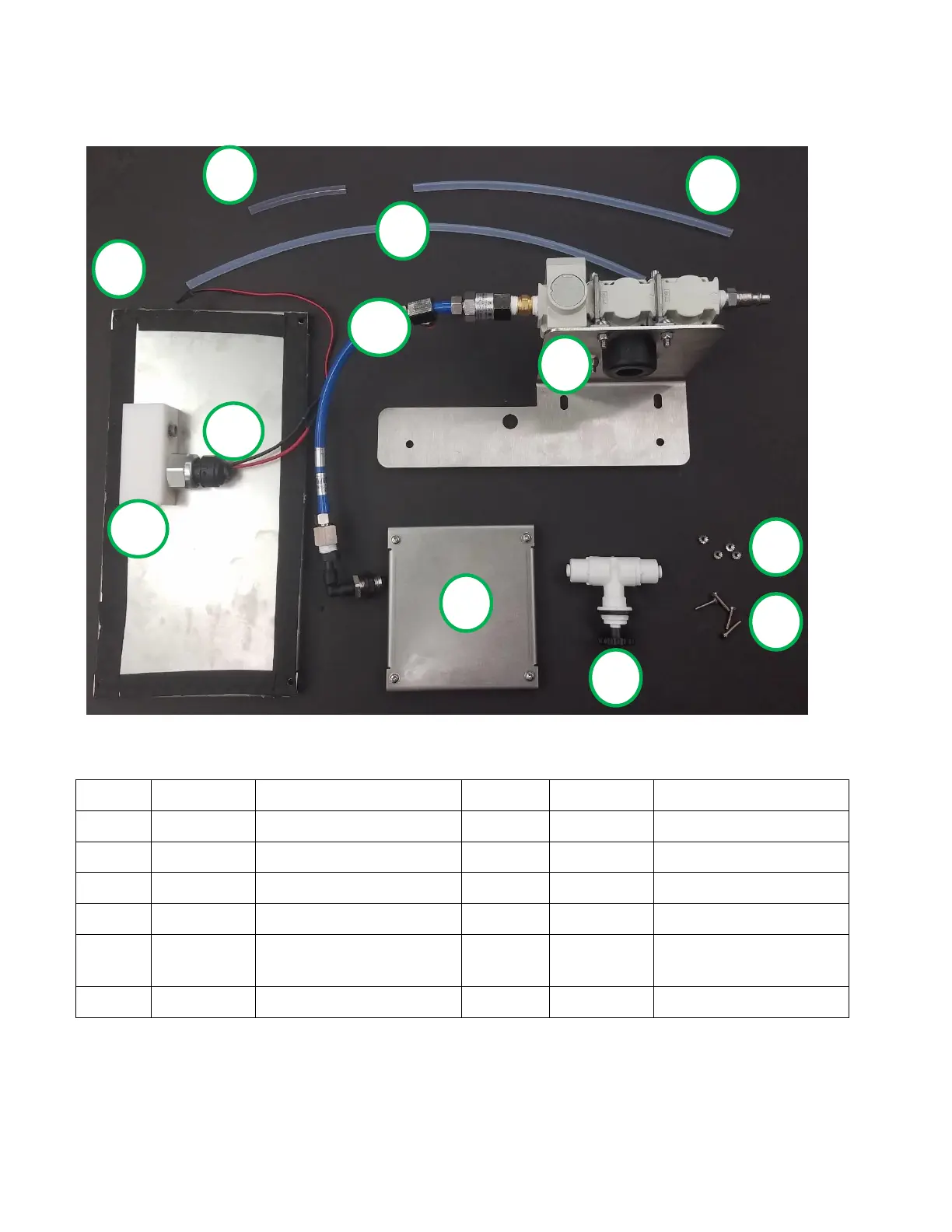

Factory Air Dryer-Enclosure/Printhead Pressurization Kit
44-5051-01: Factory Air Dryer-Enclosure/Printhead Pressurization Parts List
Number
Part Number
Description
Number
Part Number
Description
1
X
Filter blank
7
36-0002-01
Tubing, 1/4in X 1/8in ID
2
25-0054-01
Fan Blank
8
36-0002-01
Tubing, 1/4in X 1/8in ID
3
X
Air Dryer
9
36-0008-02
Tubing, 1/4in X 3/16in
4
X
M3x0.5 Lock Nut
10
X
Air Distribution Manifold
5
X
M3x0.5x12 Screw
11
34-0004-01
Pressure Switch, Air Dry
Cab
6
35-0022-01
Valve, Printhead Air Flow
12
46-0005-01
Filter, Air Dry Kit
1
9
8
7
3
12
4
5
6
2
10
11
