ENGINE CHECKS AND ASSEMBLY
3.14 INSERTION OF CLUTCH
ROD AND PINION SPACER

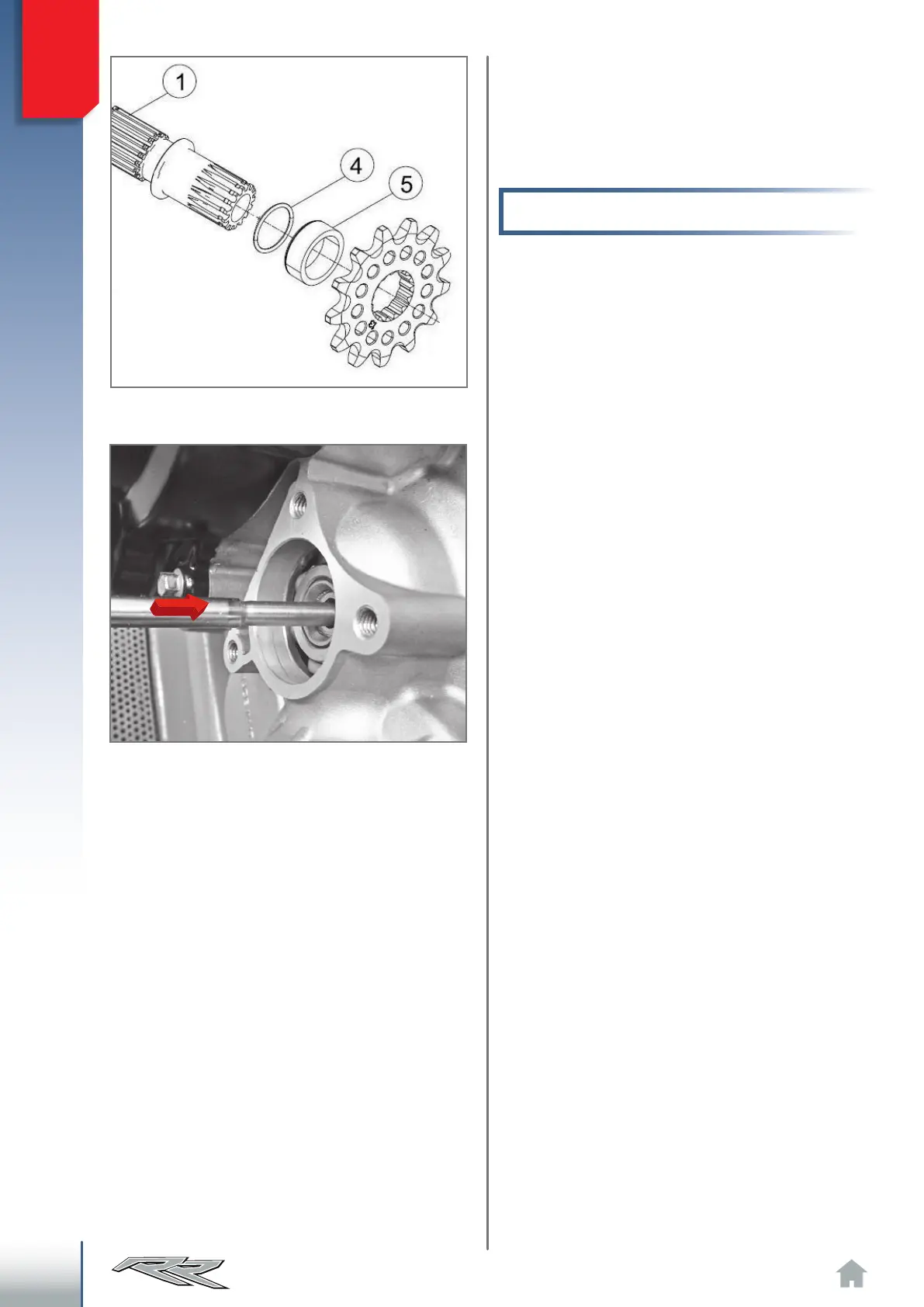

Apply the pinion spacer 5 to the secondary of the
gearbox 1, so that the groove is facing inside the
engine.
Note: check the O-ring 4 is present. If so, apply it.
Insert the gearbox rod in its seat from the lower
diameter side.
Insertion of clutch rod.
