ENGINE CHECKS AND ASSEMBLY
3.7 KICKSTARTER DEVICE -
OPTIONAL
Before coupling the kickstarter to the crankcase
half, some checks must be carried out.
3.7.1 CHECKING THE KICKSTART
SHAFT UNIT AND ASSEM-
B LY
In order to disassemble all the parts of the kick-
start shaft, pull off the washer 11 at the end of
the shaft (on the spring side 16), the spring 16,
the kickstart sleeve 14, and the lever return spring
8, which must be pulled in the radial direction
so that it is extracted from its hole in order to be
released from the shaft.

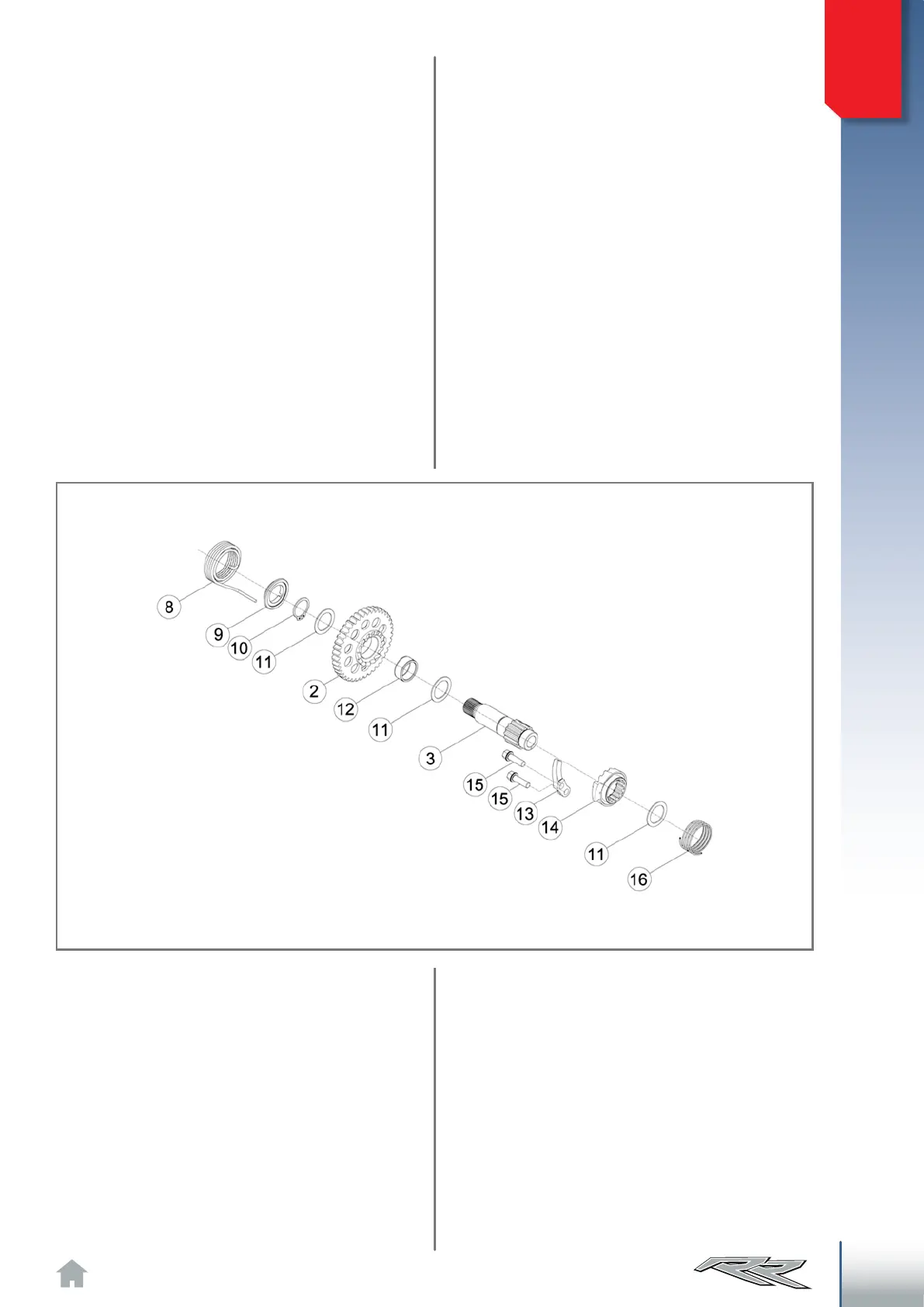

EXPLODED VIEW OF COMPLETE KICKSTART SHAFT:
2) Kickstart gear;
3) Kickstart shaft;
8) Kickstart return spring;
9) Kickstart spacer;
10) 20E circlip;
11) Washer thickness 20x28x1 DIN 988;
12) K20x24x10 roller bearing;
14) Kickstart sleeve;
16) Spring.
