ENGINE DISASSEMBLY

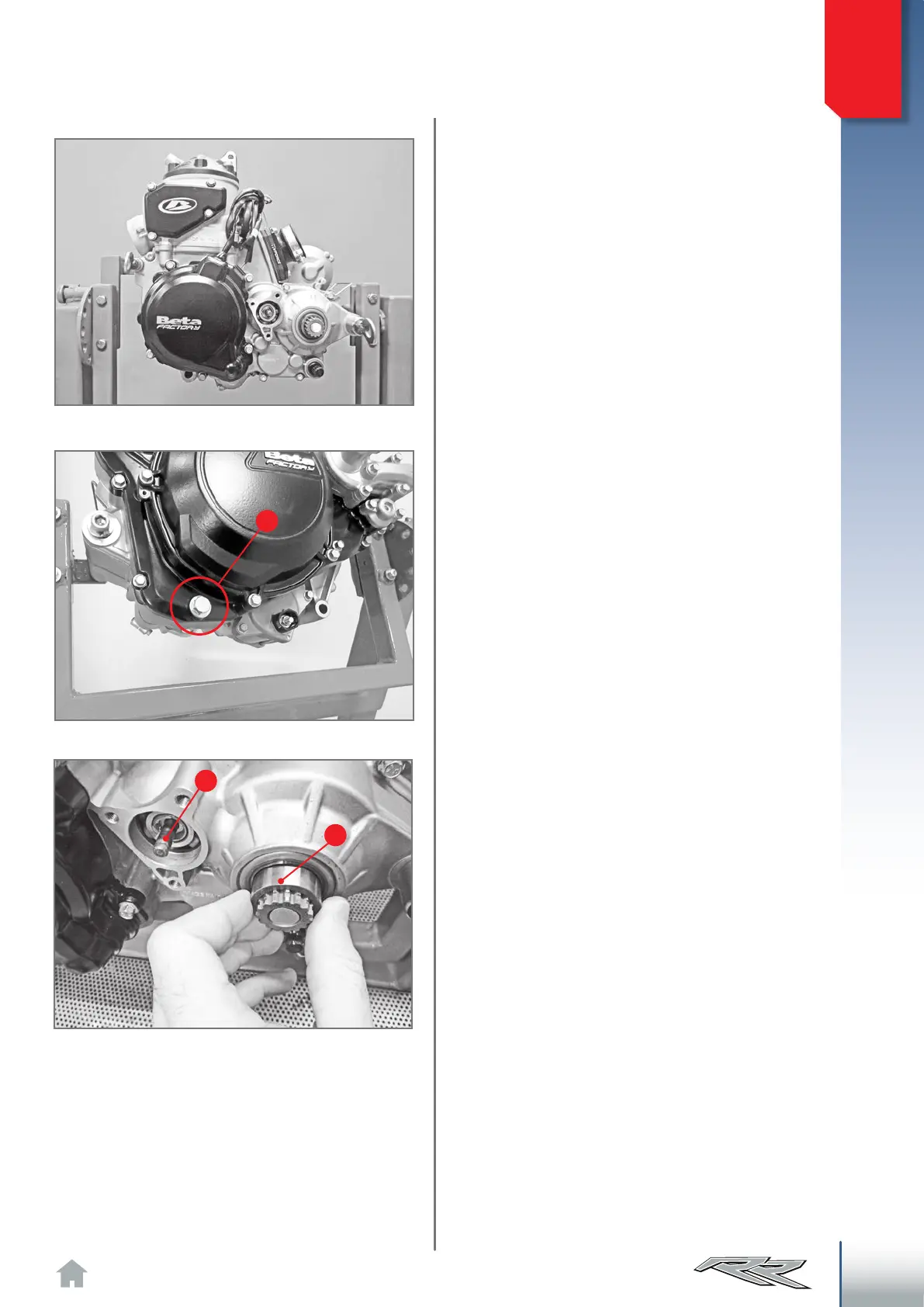

Secure the engine to the specific support stand
code 3625132000 by means of the front fixing
code 026140030 000, in order to work in comfort
and safety. Then proceed as follows.
2.1 CLUTCH/GEAR OIL DRAIN
Remove screw 1 and let the oil drain.
2.2 REMOVAL OF CLUTCH
CONTROL ROD AND PIN-
ION SPACER
Pull out the spacer 1.
Pull out the clutch control rod 2.
2 ENGINE DISASSEMBLY
