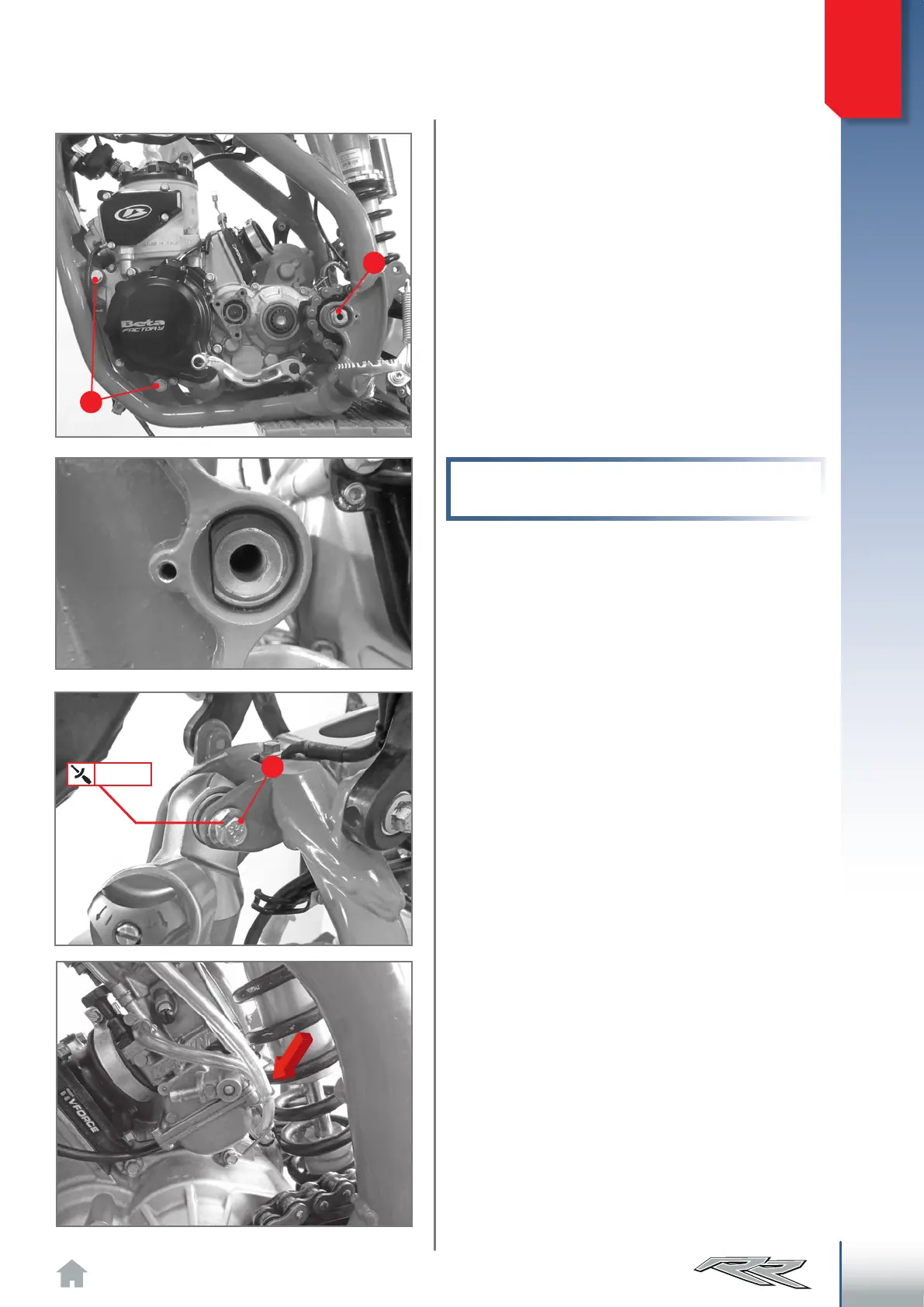

ENGINE REASSEMBLY IN THE VEHICLE
4 ENGINE REASSEMBLY IN THE VEHICLE
∙ Insert the engine in the frame. We recommend
insertion from the frame’s left side.
∙ Insert the engine pins 1 and the swingarm pin
2.
∙ Insert the upper shock-absorber pin 3. Fasten
the shock absorber pin to the indicated torque.
∙ Apply the spark plug and fasten it at 28Nm.
∙ Apply the carburettor to the manifold making
the breather tubes pass in the appropriate
metal cable gland.
Note: pay attention that the notch on the pin
head is aligned with the notch on the frame.
