ENGINE DISASSEMBLY
2.6.2 REMOVAL OF CENTRIFU-
GAL UNIT AND LEVERAGE

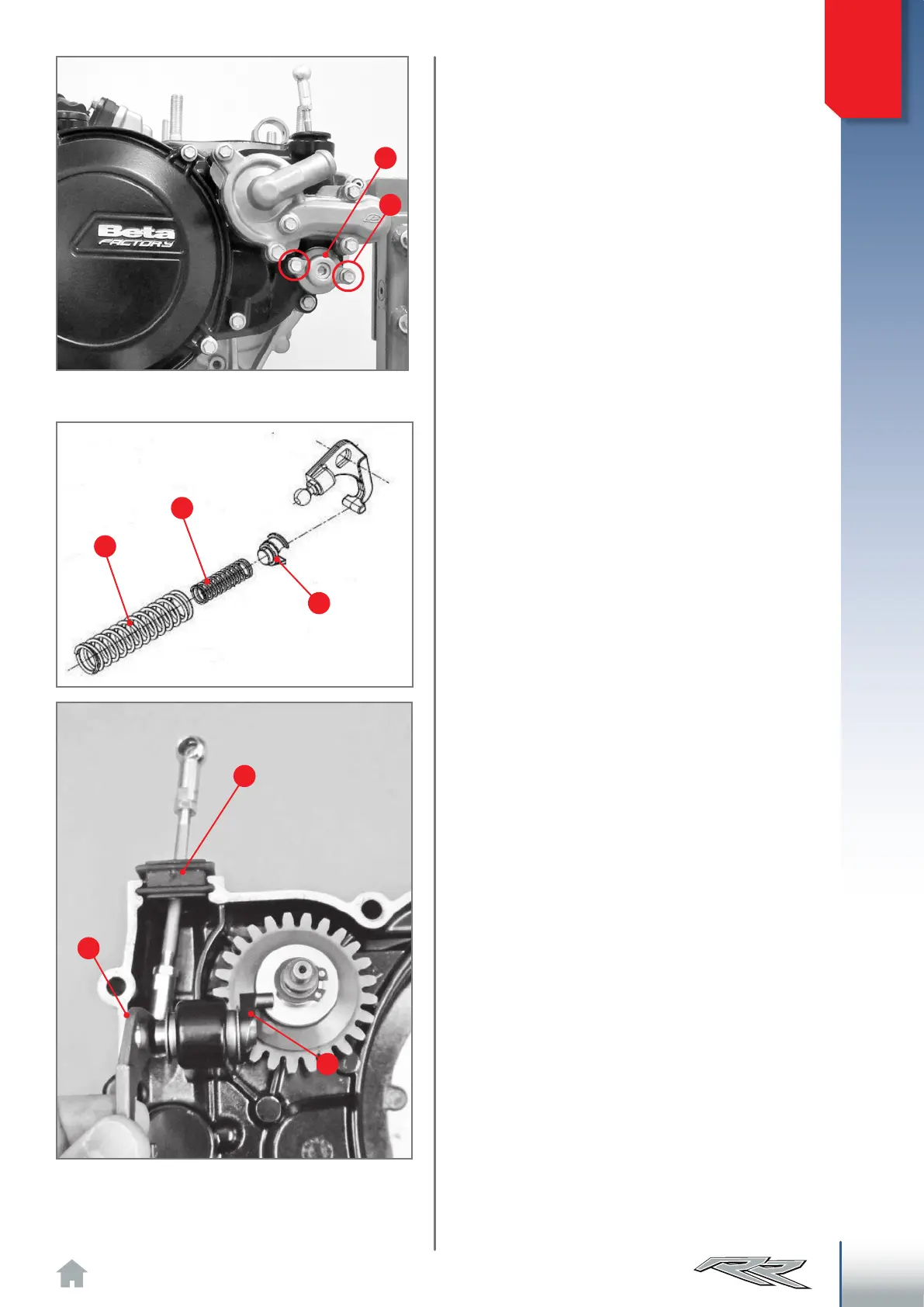

Access the centrifugal unit and linkage by removing
the inner clutch cover. Disassemble the adjustment
cover 1 by removing the two screws 2, once the
pump impeller has been removed (par. 2.6.1).
Removal of centrifugal adjustment cover.
Remove the unit consisting of adjusting springs 3,
auxiliary springs 4 and the spring guide 5.
After removing the screw fixing the rocker arm 6 to
the centrifugal control lever 7, extract the rocker arm
with control rod and gasket 8.
Disassembly of control rod-rocker arm unit.
