Beta RR250 - Application of Right Crankcase Half Parts

3
48
3
2
1
4
6Nm
6
5
7
8
ENGINE CHECKS AND ASSEMBLY

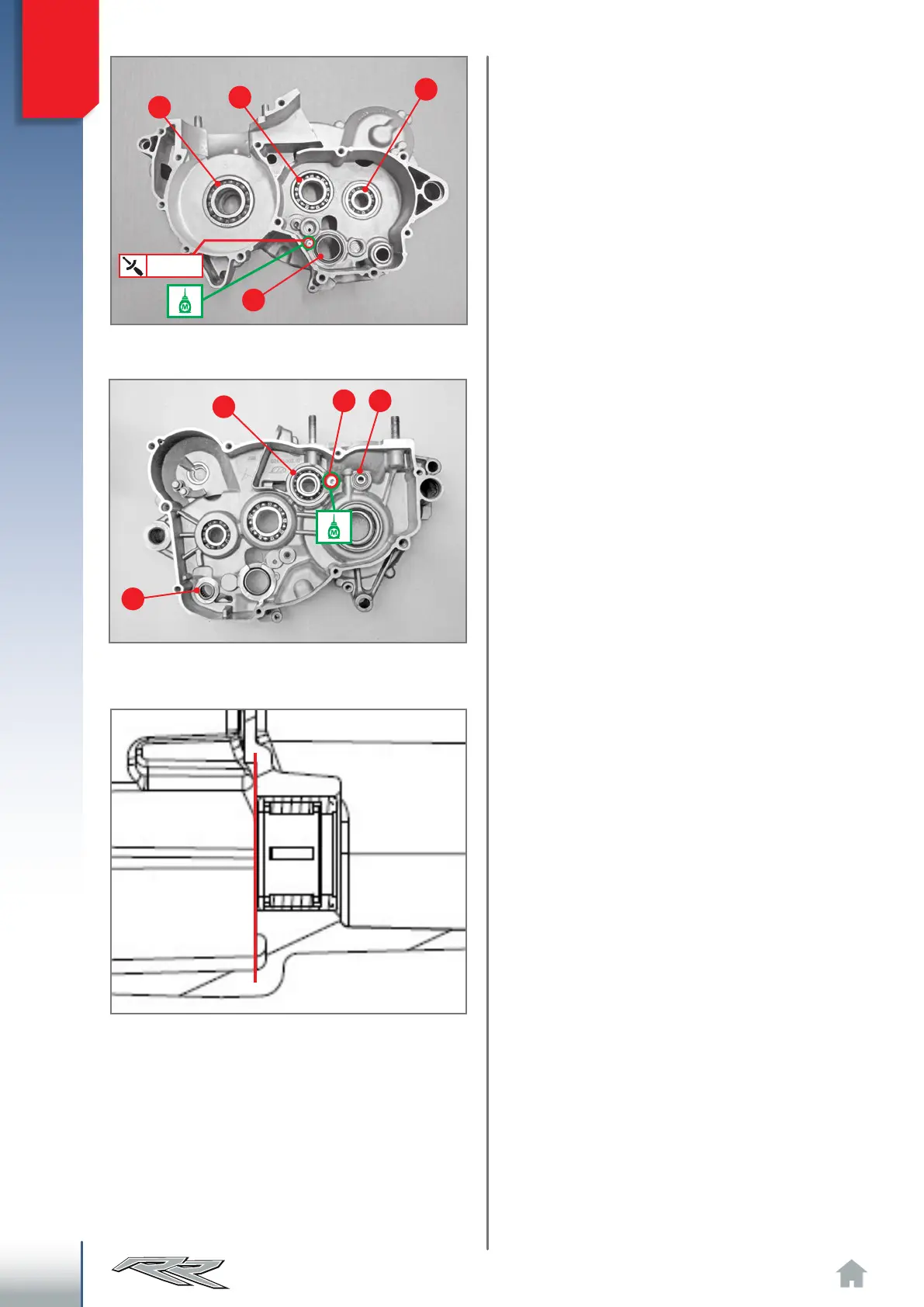

Positioning of the right crankcase half bearings.
Application of bearings from the right crankcase half
external side.
Position of right crankcase half gearshift shaft bearing.
3.1.1 APPLICATION OF RIGHT
CRANKCASE HALF PARTS
Apply the bearings 1, 2, 3 and 4 until flush.
Block bearing 4 with the specific screw by depositing
the threadlockers. Tighten to the specified torque.
Apply the bearing 5 from the crankcase half external
side, until it is flush, and bearing 6 as shown in the
drawing.
Apply new oil seals, to be pressed all the way until
fully seated.
Apply the bearing 7 until flush. Apply the plate 8 and
fasten it with a screw after applying medium strength
threadlocker. Tighten to the specified torque.
