ENGINE CHECKS AND ASSEMBLY

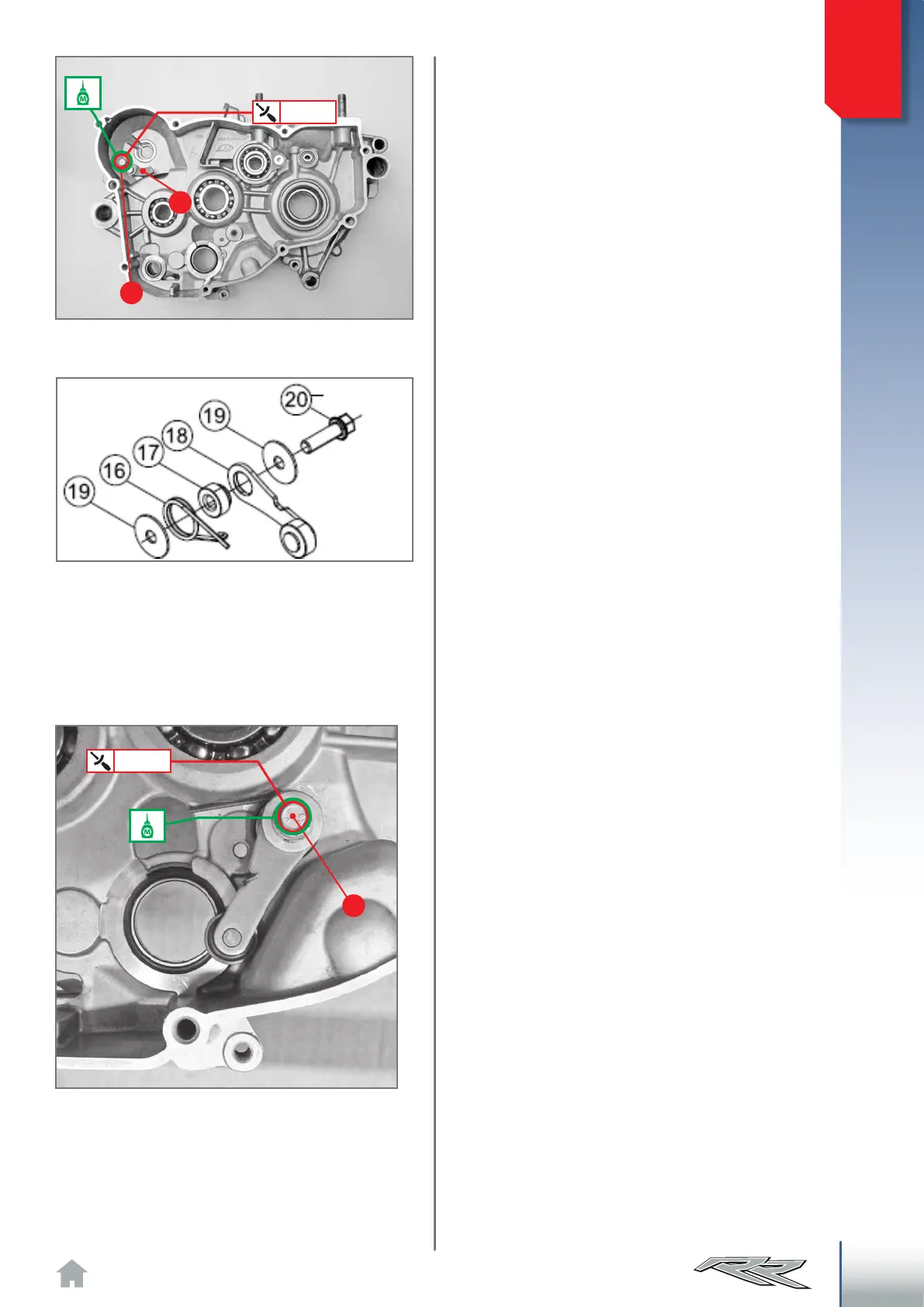

Application of kickstart ramp.
Application of cam stop lever.
If present (optional), apply the kickstart ramp 9
and fasten the screws 10 at 10Nm, by depositing a
medium strength threadlocker.
Apply the gear stopping device as follows.
Keeping the tightener on lever 18 facing towards the
crankcase half, apply the spacer 17 onto it, inserting
the smaller diameter segment in the lever. Apply the
spring 16 so that the hook fits into the groove on
the lever 18 and then apply the washers 19 and the
M6x20 screw 20, after spreading medium strength
threadlocker on the thread.
Apply the entire device on the crankcase half so
that the straight segment of the spring rests on the
bearing seat. Tighten the screw to the indicated
torque.
EXPLODED VIEW OF GEAR STOPPING DEVICE:
18) Lever;
16) Spring;
17) Spacer;
19) 6x20x1 washer;
20) Screw M6x20
