ENGINE DISASSEMBLY
2.6.4 PEDAL KICKSTART - OP-
TIONAL
The pedal kickstarter consists of the pedal which,
attached to the kickstarter shaft 1, moves the
kickstarter gear 2. This gear moves the idler wheel 3,
which engages in its turn with the clutch case.
The device recoils thanks to the spring 4.

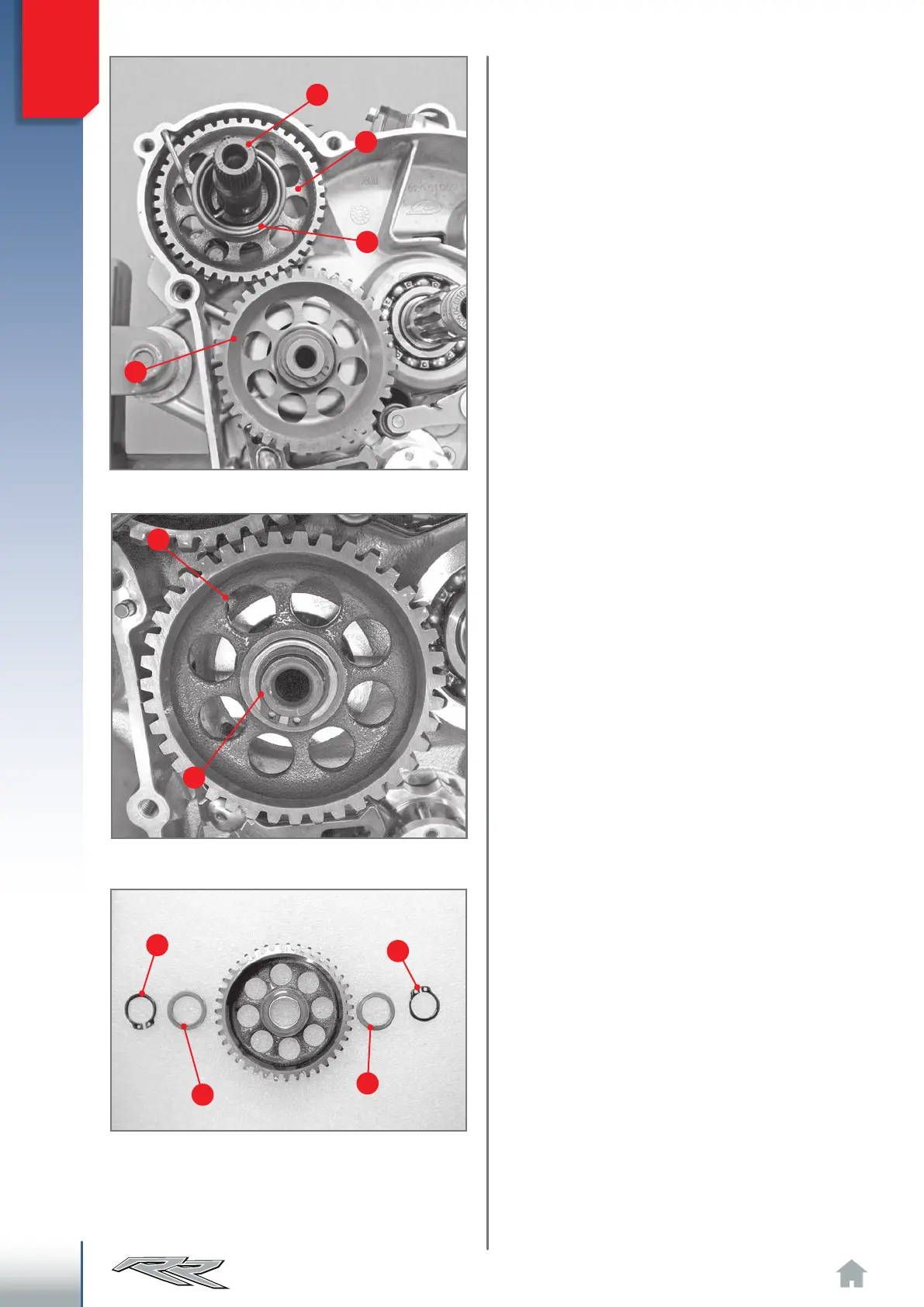

The pedal kickstart.
Removal of circlip 5 of idler gear 3.
Two circlips 5 and 8 and thrust washers 6 and 7.
Remove the external circlip 5 and extract the external
thrust washer 6, the idler gear 3, the internal thrust
washer 7 and the second circlip 8. The circlips and
thrust washers are interchangeable.
