3.6 EXTERNAL GEARSHIFT
Before reassembling the external gearshift, check
its state of use. While for the stop cam it is enough
to make sure it is free from abnormal wear or
meshing, the gearshift drive shaft needs more in-
depth inspections.
3.6.1 CHECKING THE COMPLETE
DRIVE SHAFT
With the complete device, make sure that the dis-
tance between the movable pawl and the drive
shaft is between 0.35÷0.80mm.
Should the distance be greater, replace the mov-
able pawl.

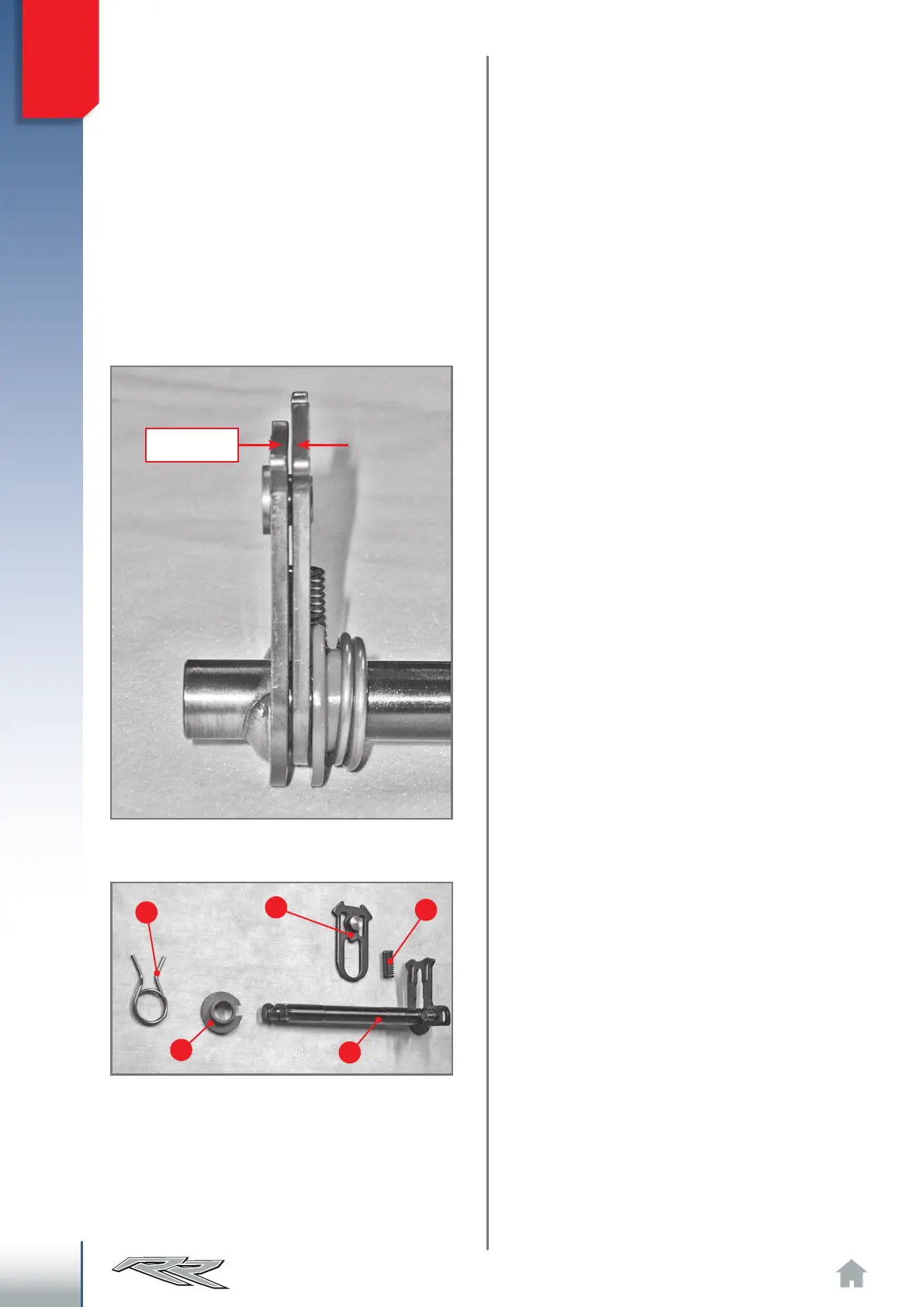

Allowed distance between shaft and pawl.
In order to replace the movable pawl 1, disassem-
ble the return spring of the gearshift 2, the spring
guide 3, the spring 4 (which must be compressed
and pulled out of its seat) and the pawl, moving
it completely towards the shaft 5.
Complete drive shaft: 1) Movable pawl; 2) Gearshift
return spring; 3) Spring guide; 4) Spring; 5) Gearshift
drive shaft.
