ENGINE CHECKS AND ASSEMBLY

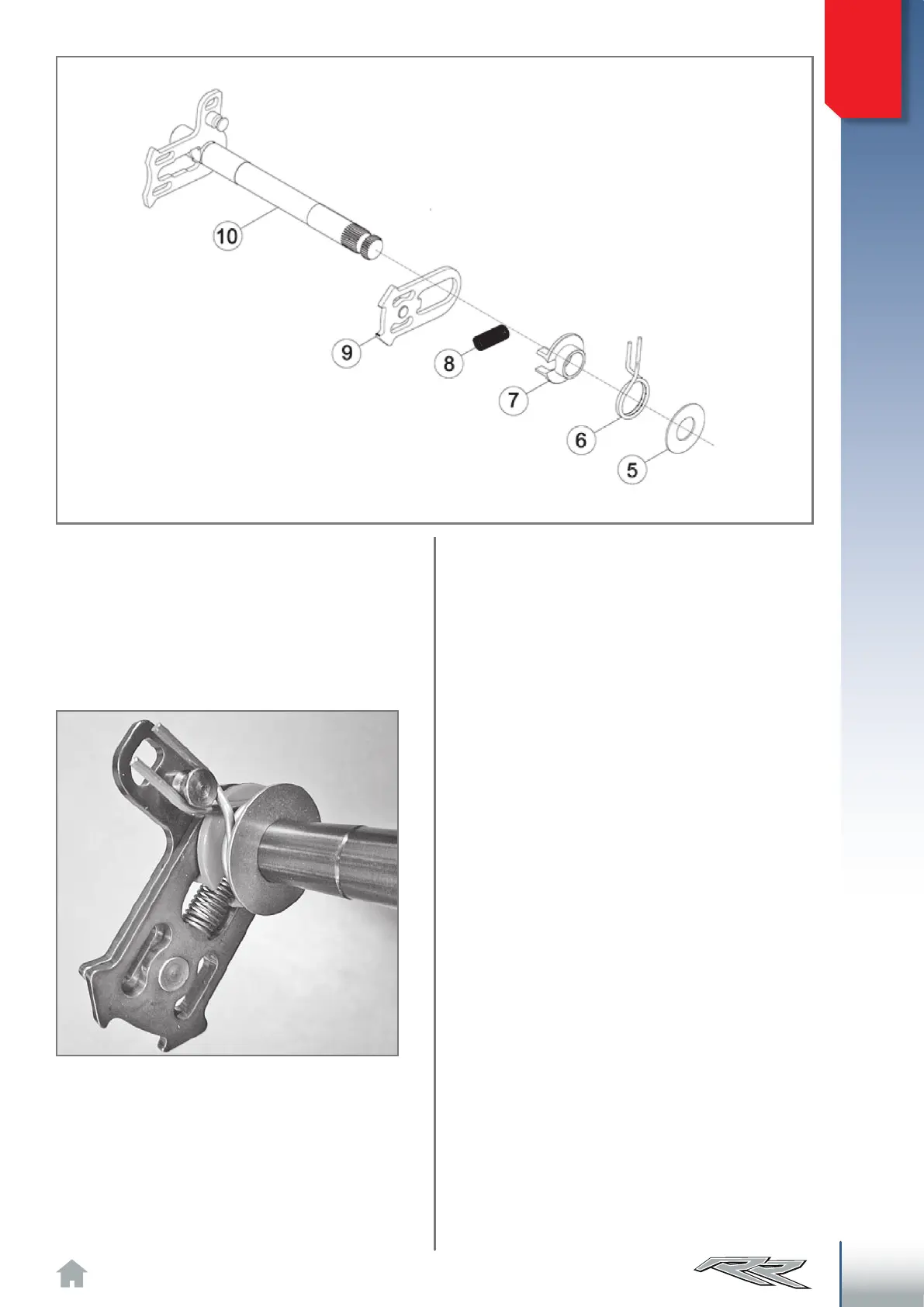

Exploded view of gearshift.
5) 14x30x1 thrust washer;
6) Gearshift return spring;
7) Spring guide;
8) Pawl return spring;
9) Movable pawl;
10) Gearshift shaft.
Gearshift drive shaft: note the gearshift return spring
position.
For reassembly, couple the movable pawl 9 to the
drive shaft 10 and, while compressing it, insert
the spring 8 between the movable pawl and the
drive shaft. Then apply the spring guide 7, the
gearshift return spring 6 and finally the thrust
washer 5 (14x30x1).
The gearshift return spring must be positioned as
in the figure to be able to carry out its function.
