ENGINE CHECKS AND ASSEMBLY
3.1.2 APPLICATION OF LEFT
CRANKCASE HALF PARTS
Apply the bearings 1, 2, 3 e 4 from the crankcase half
internal side, until flush.
Apply the bearing 5 from the crankcase half external
side, as shown in the drawing.
Apply the crankshaft oil seal, gear secondary shaft
and gearshift shaft.
Apply the bush with collar 6.
Apply new oil seals, to be pressed all the way until
fully seated.
Apply new oil seals, to be pressed all the way
until fully seated.

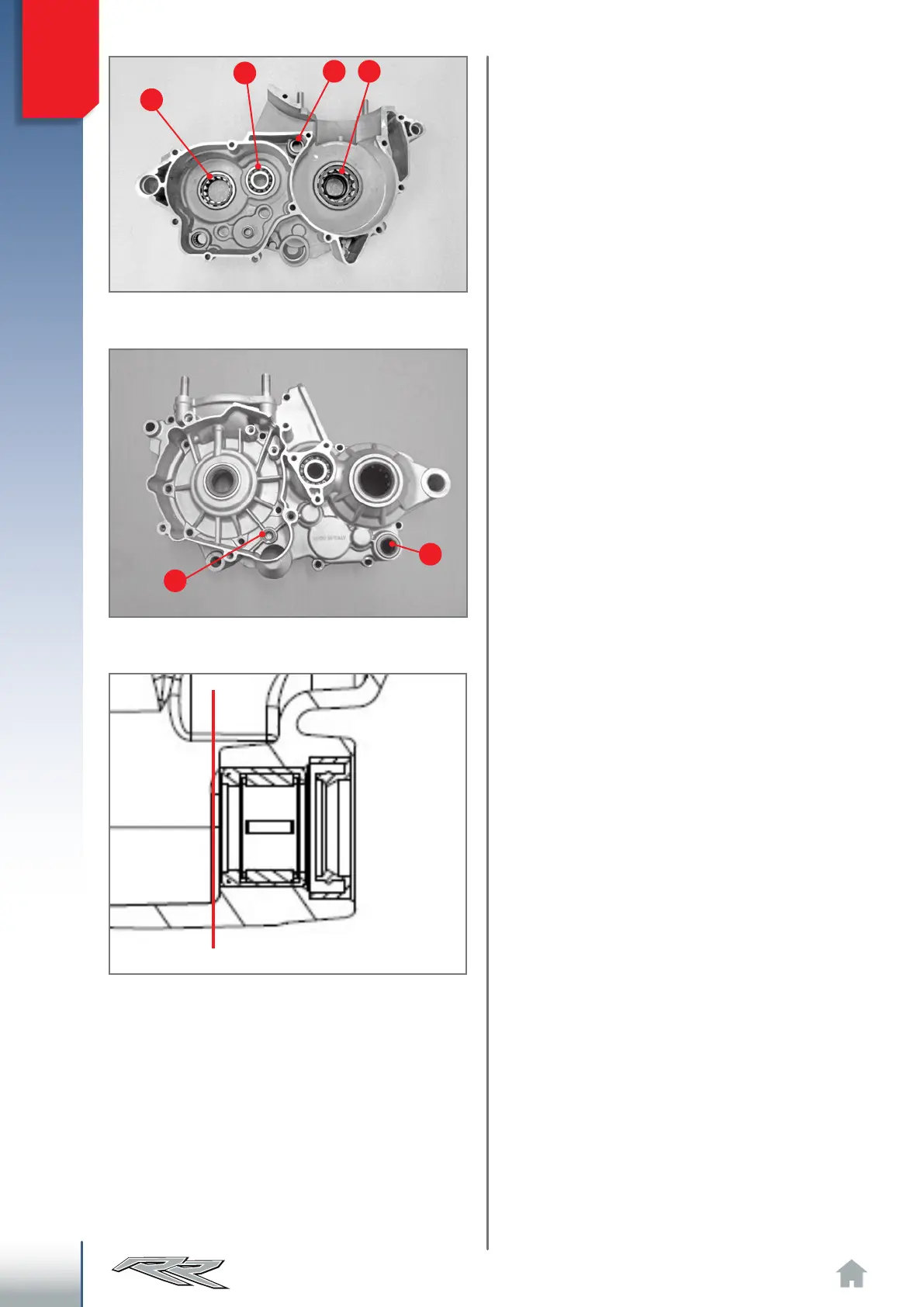

Application of left crankcase half bearings.
Application of left crankcase half parts.
Position of left crankcase half gearshift shaft bearing.
