ENGINE DISASSEMBLY

2.6.1 REMOVAL OF COOLANT

LIQUID PUMP

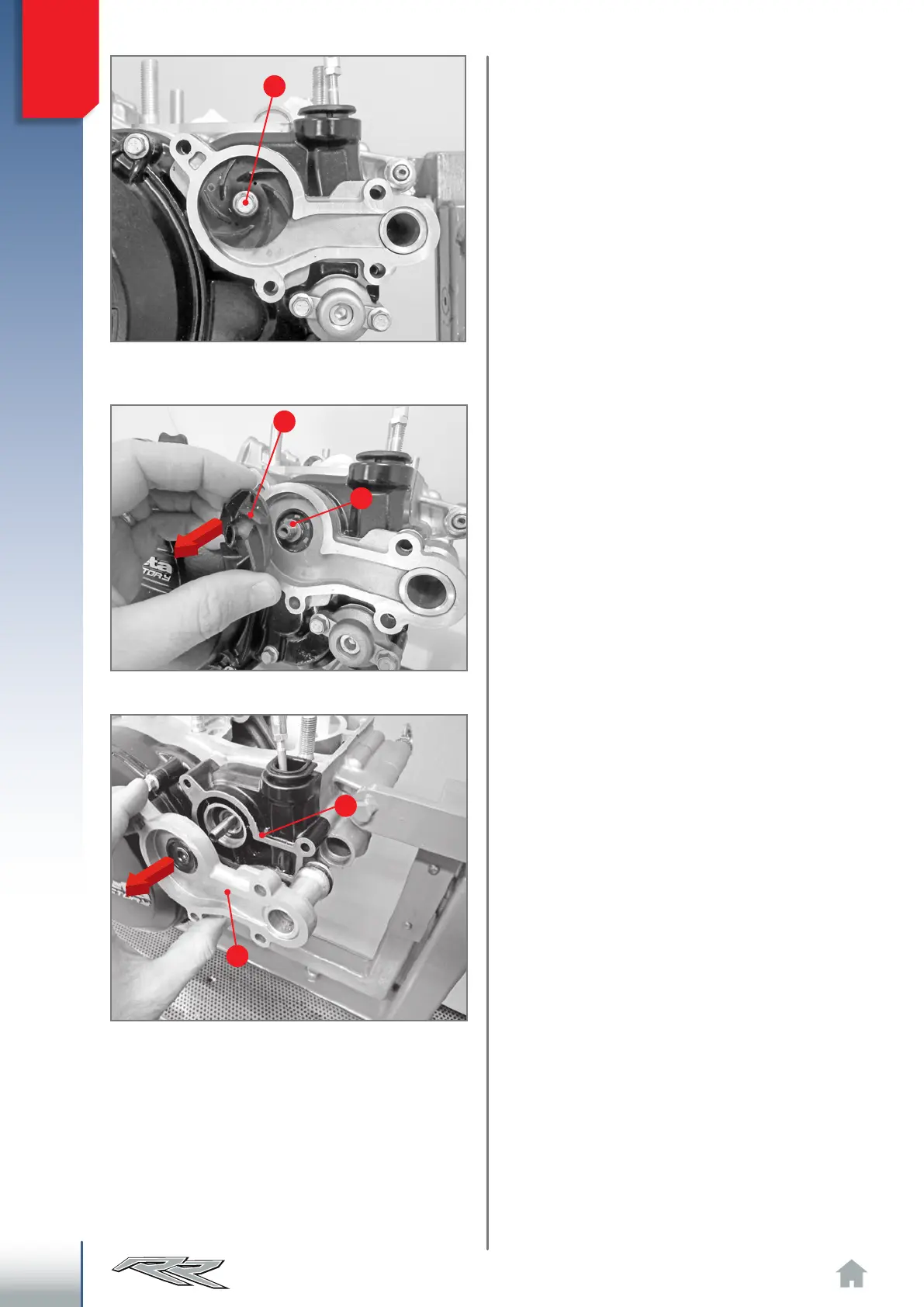

Loosen fixing screw 1 once the coolant liquid pump

cover has been removed.

Cooling pump fixing screw.

Removal of impeller.

Removal of pump body and gasket.

Extract the impeller 2 and the thrust washer 3.

Extract the complete pump body 4 and remove

gasket 5.
