Beta RR250 - Disassembly of Clutch Unit and Countershaft Counterweight

2
32
A
2
3
6
7
5
4
10
9
8
1
ENGINE DISASSEMBLY
2.6.3 DISASSEMBLY OF CLUTCH
UNIT AND COUNTERSHAFT
COUNTERWEIGHT

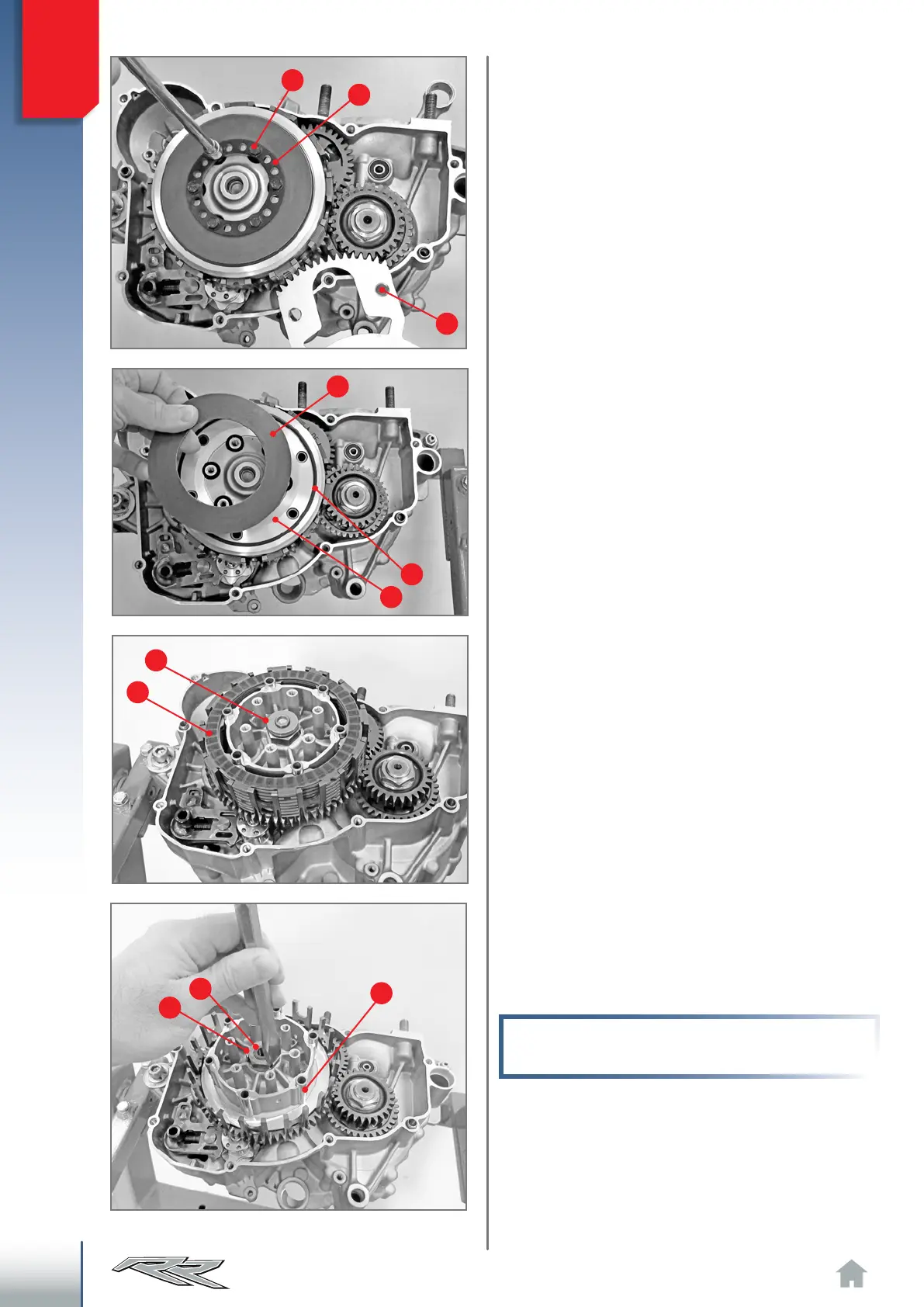

Keeping the clutch unit locked using the special tool
A (code 037.14.002.50.00) remove the screws 1 that
join the ring 2 to the clutch drum.
Remove the spring washer 3, the pressure plate 4
together with the ring 5.
In order to complete disassembly of the clutch unit,
open the safety washer 8 by using a chisel and
remove the nut 9.
Extract the complete pressure plate unit 6 and the
clutch disc pack 7.
WARNING!
Do not remove the sliding pins 10 .
