ENGINE DISASSEMBLY
2.4 REMOVAL OF IGNITION
UNIT
The ignition unit is made up of the flywheel (or
rotor), the pick-up unit and the stator, which is
one with the flywheel cover.
2.4.1 REMOVAL OF FLYWHEEL
COVER

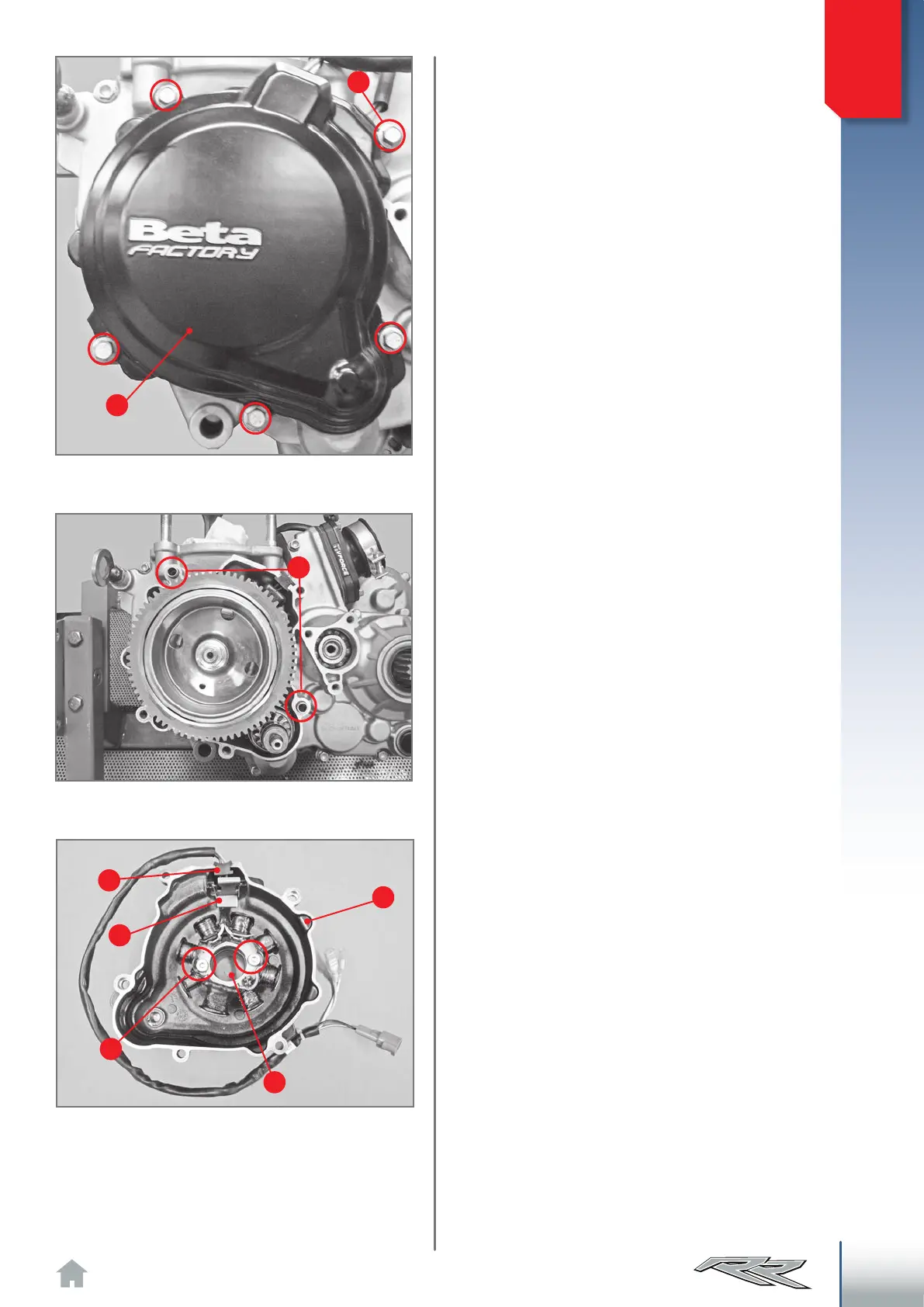

Remove the five screws 1 fastening the flywheel
cover 2 to the left crankcase.
Remove the flywheel cover and the gasket placed
between the crankcase and the cover.
Fixing screws 1 of flywheel cover 2.
The two designated reference pins 3 for the flywheel
cover.
2.4.2 Stator removal
Remove the two screws 1 fixing the stator 2 to the
flywheel cover 3. Extract the plate 4 and the cable
gland 5 from the cover and take out the stator.
Disassembly of stator from cover.
Pay attention to the two centring pins 3 on the
crankcase.
