ENGINE DISASSEMBLY

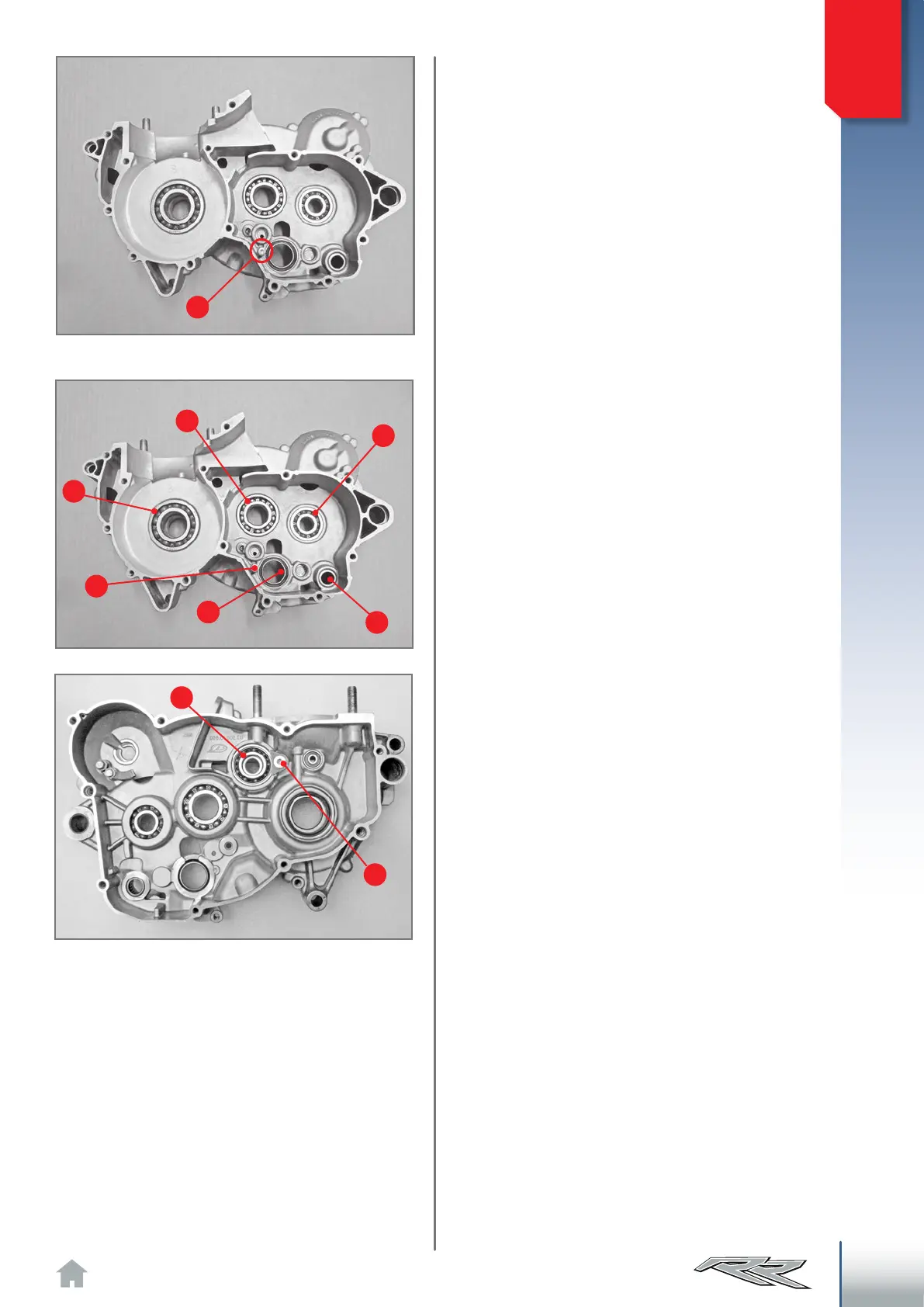

Bearing safety screw.
Remove the desmodromic control bearing seal screw
4 on the inside.
The bearings 5, 6, 7, 8 and 9 are removed from the
outside inwards.
To disassemble bearing 9 remove the fixing screw
10.
The centrifugal shaft bearing can be removed by
using a universal extractor that must rest onto a
purposely created metal plate.
The bearing 11 is removed from the outside using
a universal extractor, after removing the fixing plate
12.
