ENGINE CHECKS AND ASSEMBLY

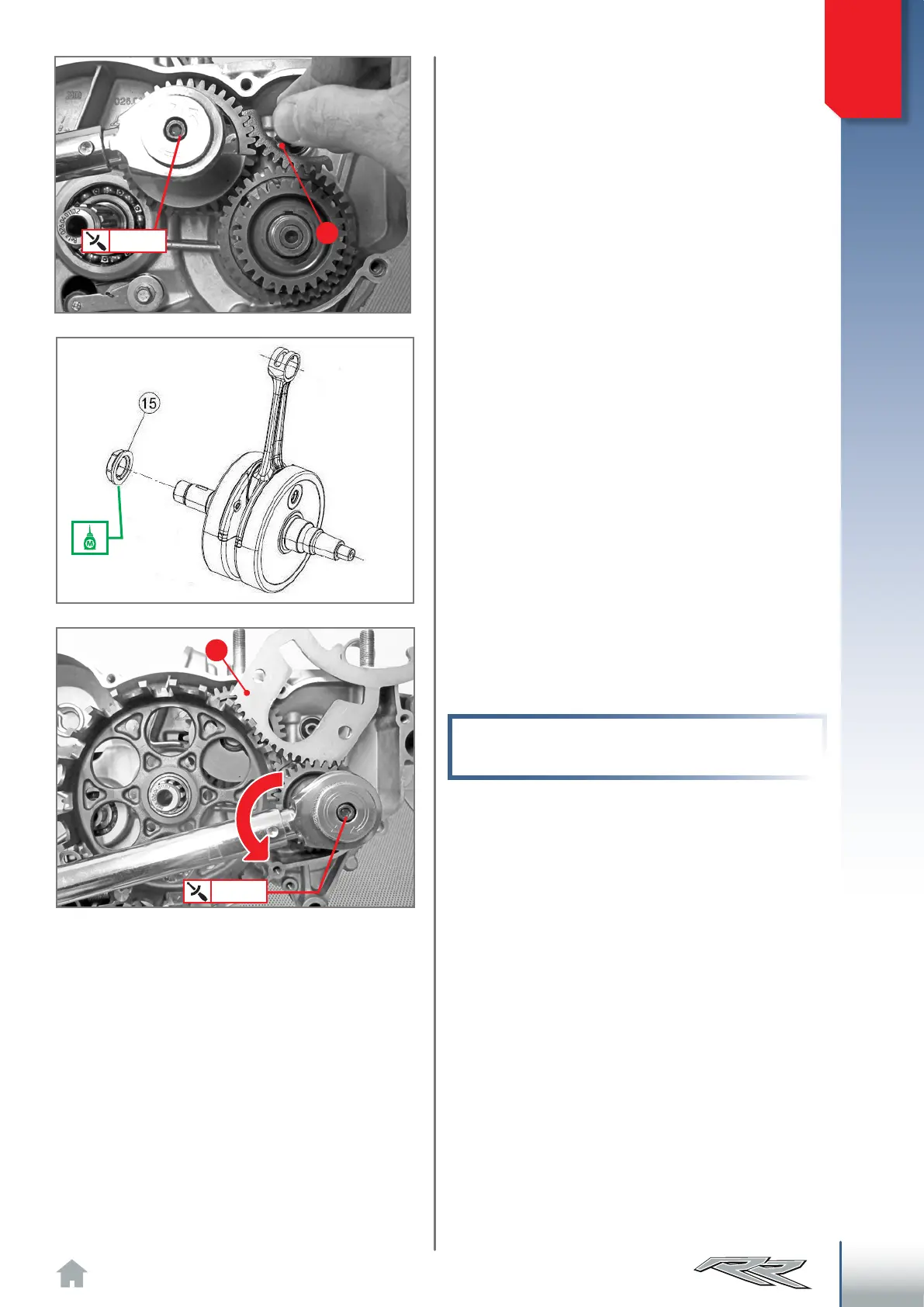

Keeping the primary gear/counterweight cou-
pling firmly in place with a special tool B (code
026.14.012.50.00), tighten the screw 2 to the in-
dicated torque.
Apply the lock nut 15 after applying medium
strength threadlocker; tighten at the indicated
torque.
This is possible once the clutch case is in-
serted using the primary special tool C (code
029.14.002.50.00). See Par. 3.8.3 to apply the
clutch case.
ATTENTION!
The nut is fastened anti-clockwise
