Big Backyard F23073C - Page 42

 42  support@solowavedesign.com
Wood Parts
Hardware
70 x #8 x 1-1/2” Wood Screw
1 x CE Gap Board 1 x 4 x 38-3/4”
2 x End Board 1 x 6 x 38-3/4”
8 x Cedar Floor Board 1 x 5 x 38-3/4”
1 x Cedar Gap Board 1 x 5 x 38-3/4”
2 x Middle Gap Board 1 x 5 x 38-3/4”
2136
S2
Step 13: Floor Assembly
Part 2
D: Place1(2147)EndBoardatSwingWallsidetightto(2126)SWFloorand(2134)CedarGapBoardonSlide
Wallsidetightto(2122)SLFloorEnd.
E:StartingontheSwingWallsideplace3(2158)CedarFloorBoardsfollowedby1(2104)MiddleGapBoard
sothegapintheboardtsaroundthe(2154)FrontPost,thenthe(2136)CEGapBoard,another(2104)Middle
GapBoard,3more(2158)CedarFloorBoards,1(2147)EndBoardandthenthelast2(2158)CedarFloor
Boards.Makesureallboardsareevenlyspaced.(g.13.2)
F:Attachallboardstoboth(2120)FloorFrontBacksand(2142)FloorJoistwith5(S2)#8x1-1/2”Wood
Screwsperboard.(g.13.2)

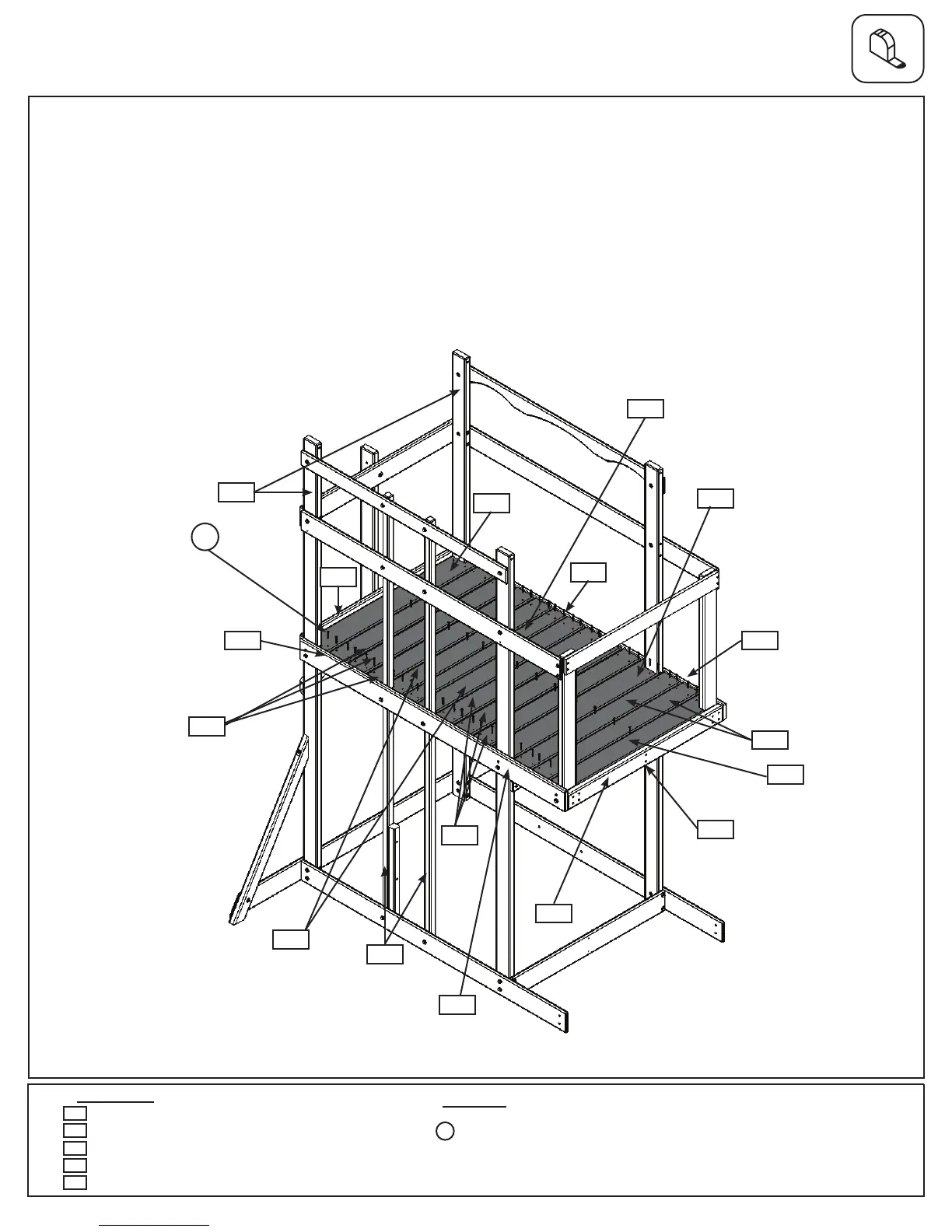

Fig. 13.2
2153
Swing Wall
x5per
board
Slide Wall
2120
(hidden)
Back Wall
Front Wall
2122
S2
2136
2147
2120
(hidden)
2134
2158
2142
(hidden)
2104
2124
2104
2134
2158
2147
2123
2126
2147
2154
2158
2158
