Big Backyard F23073C - Roof Assembly

 30  support@solowavedesign.com
Step 8: Roof Assembly
Part 1
A:Attach1(2146)RoofSupportRightto1(2132)RoofSupportLeftatthepeakusing1(S4)#8x3”Wood
Screw.Dothistwicesoyouhave2RoofSupportAssemblies.(g.8.1)
B:Attach1(2161)RoofJoisttoanotheratthepeakusing1(S4)#8x3”WoodScrew.(g.8.1)
C: PlacetheRoofSupportsandJoistAssembliesinthepatternshowning.8.1.
Wood Parts
Hardware
3 x #8 x 3” Wood Screw
S4
2146

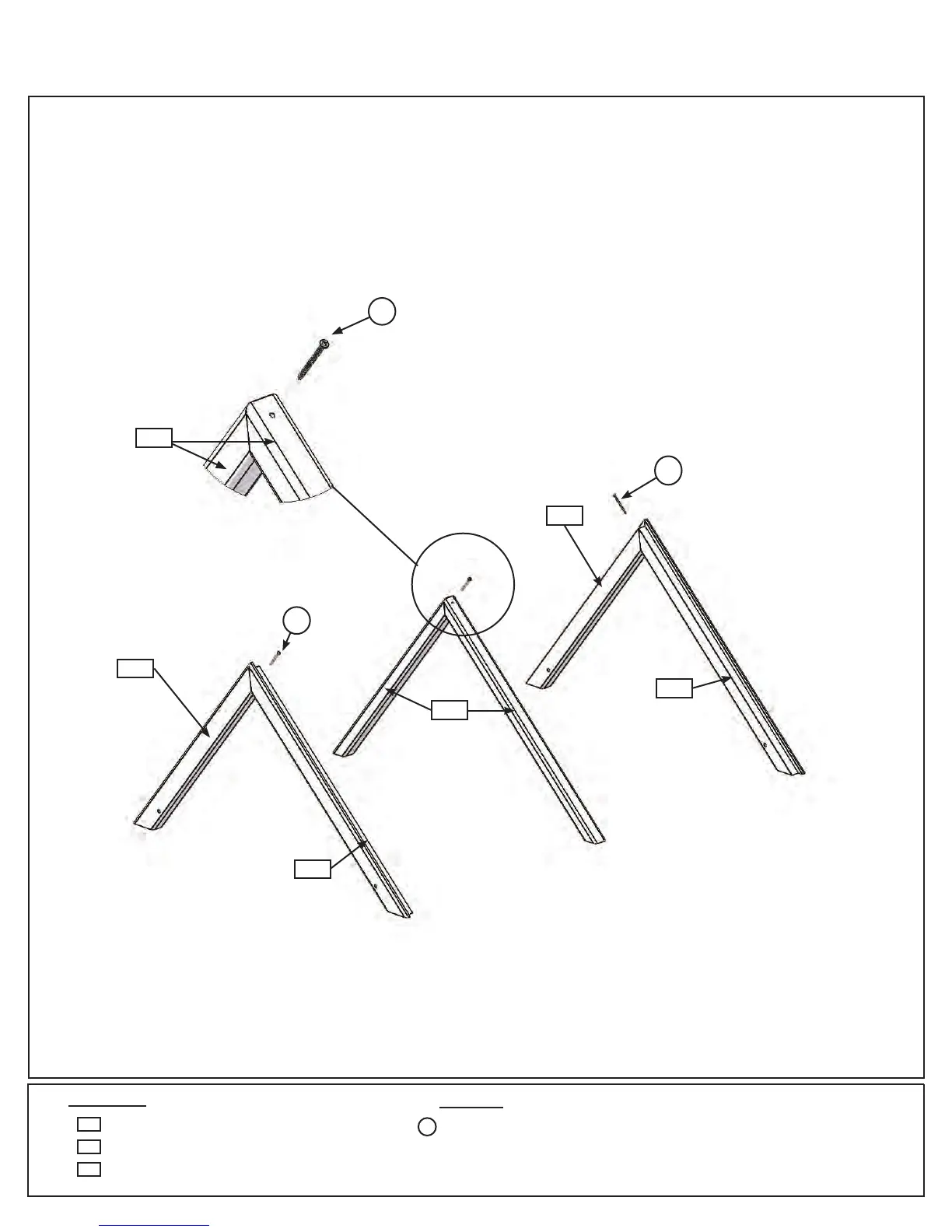

Fig. 8.1
2 x Roof Support Left 2 x 3 x 33-9/16”
2 x Roof Support Right 2 x 3 x 33-9/16”
2 x Roof Joist 2 x 2 x 32-5/16”
2132
2146
2132
2132
S4
2161
2161
2146
S4
S4
2161
