Big Backyard F23073C - Lower Front Wall Assembly

 52  support@solowavedesign.com
Hardware
Wood Parts
15 x #8 x 7/8” Truss Screw
6 x #8 x 1-1/2” Wood Screw
S0
1 x Window Frame 1 x 2 x 16-1/4”
1 x Narrow Siding 3/8 x 3 x 29-5/16”
1 x Trim 5/8 x 1-3/4 x 16-1/4”
4 x Siding 3/8 x 3-1/2 x 29-5/16”

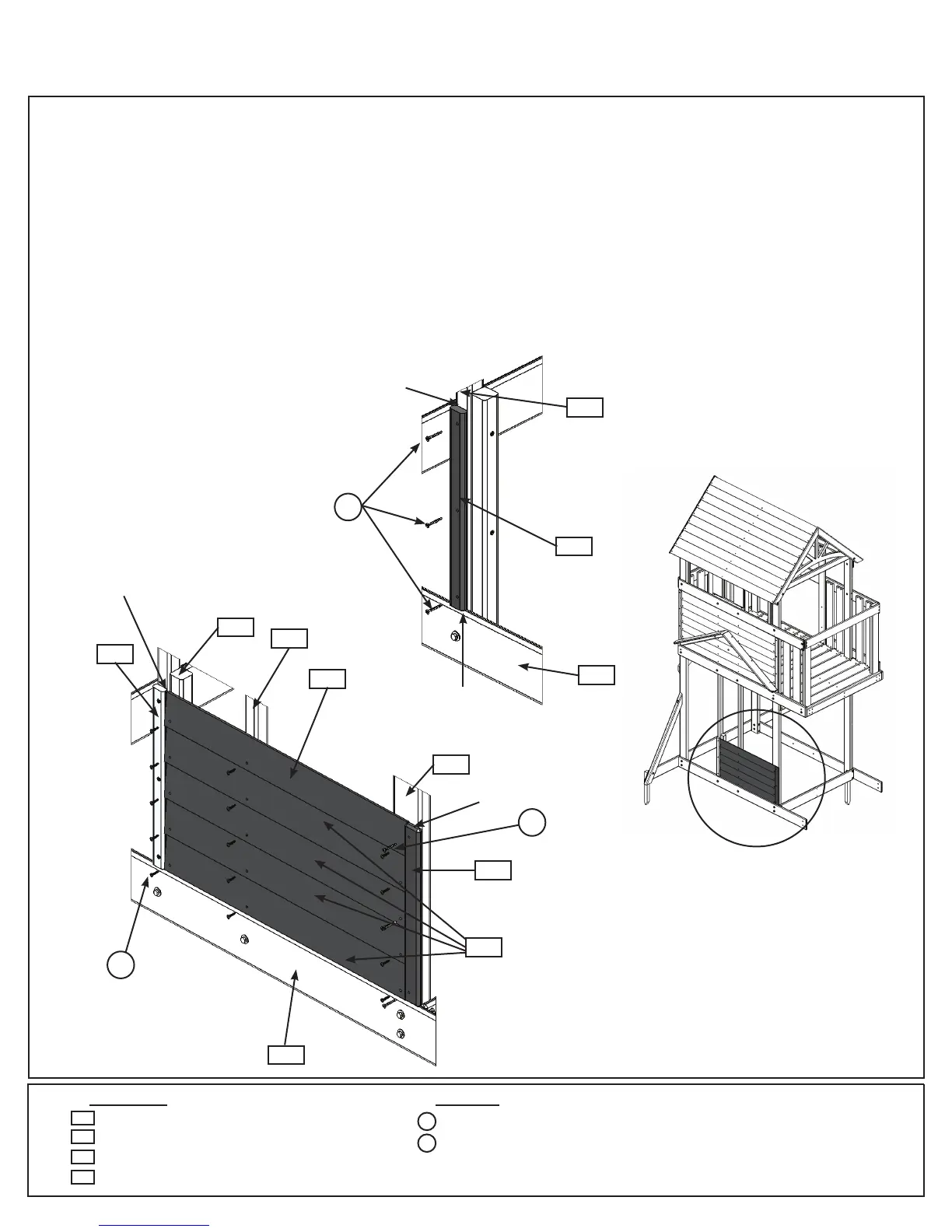

Step 19: Lower Front Wall Assembly
Part 1
A:Flushtotheoutsideedgeof(2154)FrontPostandtighttothetopof(2150)FrontBackGroundattach(0389)
WindowFrameto(2154)FrontPostwith3(S2)#8x1-1/2”WoodScrews.(g.19.1and19.2)
B: Flushtothetopandtighttotheinsideedgeof(0389)WindowFrameattach(2160)NarrowSidingto(2135)
WallSupport,(2154)FrontPostand(2153)Postwith3(S0)#8x7/8”TrussScrewsasshowning.19.3.
C:Tighttobottomof(2160)NarrowSidingandtightto(0389)WindowFrameattach4(2159)Sidingto(2135)
WallSupport,(2154)FrontPostand(2153)Postwith3(S0)#8x7/8”TrussScrewsperboard,asshowning.
19.1and19.3.Makesuretherearenogapsbetweenboards.Thebottom(2159)Sidingwillbetighttothetopof
(2150)FrontBackGround.
D:Tighttosidingandtopof(2150)FrontBackGroundattach1(2133)Trimto(2153)Postwith3(S2)#8x1-1/2”
WoodScrews.(g19.3)
0389
Outside View
Fig. 19.3
Fig. 19.1
2160
2135
2154
2153
2133
2150
2159
S2
x3
x3perboard
S0
S2
2160
2133
2159
Fig. 19.2
Flush
S2
2150
2154
0389
0389
Flush
Flush
Tight
