Big Backyard F23073C - Glider Assembly

 67  support@solowavedesign.com
Glider Rope
and Chain
Glider End
5/16 Flat
Washers
Glider Seat
5/16 x 6” Hex
Bolt
5/16 Flat
Washer-Zinc
5/16 Lock
Nuts
5/16 Flat
Washer-Zinc
5/16 Lock
Nuts
WARNING:Bolt must not
exceed 1/2 thread past the nut
5/16 Lock
Nuts
2 x Glider Ends
1 x Glider Seat
1 x Glider Rope and Chain (pkg of 4)
2 x 5/16 x 6” Hex Bolt
(5/16” at washer x 2, 5/16” lock nut)
8 x 5/16” Flat Washer
4 x 5/16” Lock Nut
Z
Hardware Other Parts

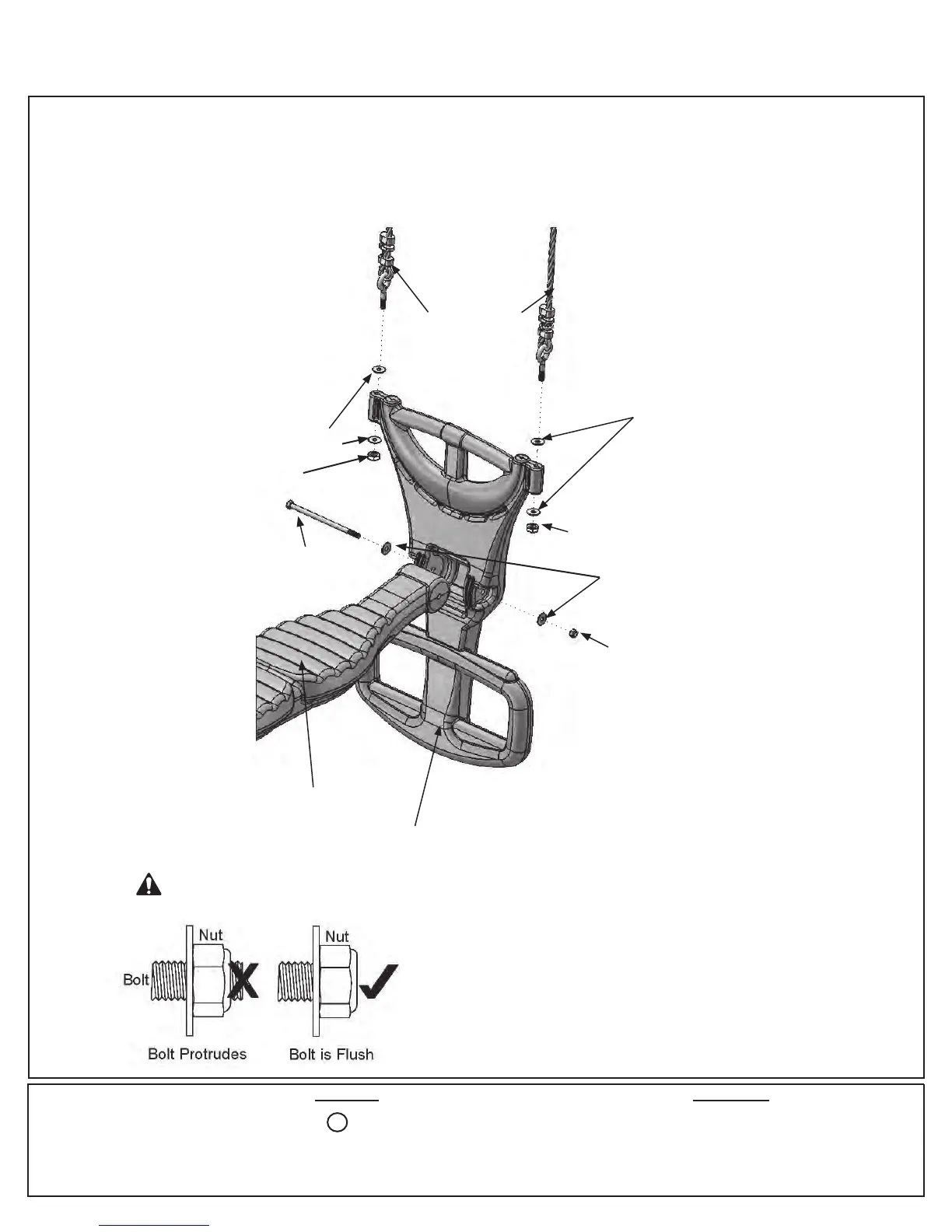

Fig. 30.1
Step 30: Glider Assembly
A:Attach1GliderEndtotheGliderSeatusing1(Z)5/16x6”HexBolt(with2atwashersand1locknut).
RepeatforthesecondGliderEnd.(g.30.1)
B:Install2GliderRopewithChainsintoeachGliderEndusing2-5/16”FlatWashersand1LockNutperrope.
(g.30.1)
