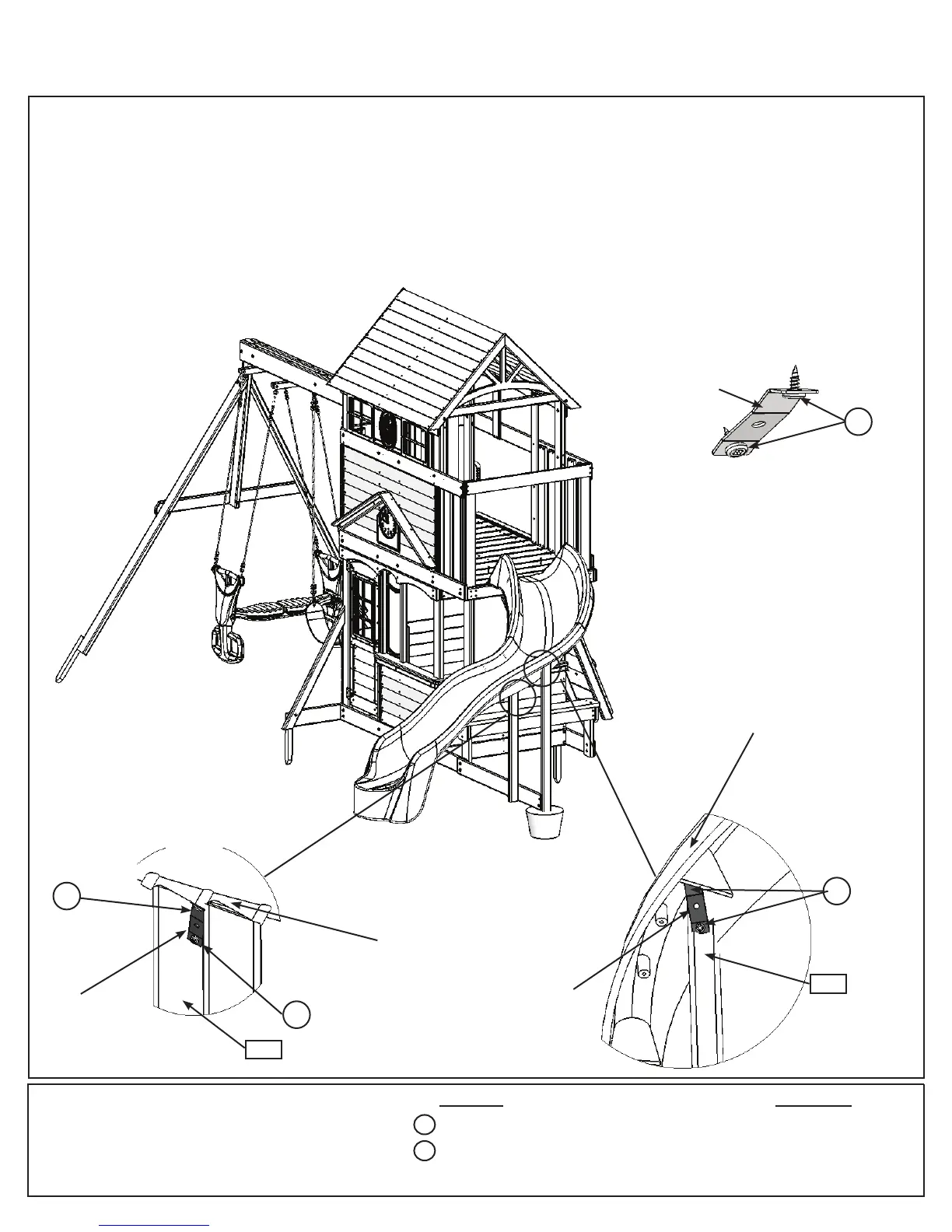

Step 34: Slide Support Assembly
Part 4
I: Seeg.34.9forSpiralWaveBracketexample.Bendbrackettotasnecessary.
J:Align(2137)SLUprightbetweenholesonundersideofBottomSectionoftheslideandattachusing1Spiral
WaveBracketwith2(S6)#12x1”PanScrewsasshowning.34.6and34.7.
K: AttachSpiralWaveBracketto(2140)ShortUprightwith1(S6)#12x1”PanScrewandtotheBottom
Sectionoftheslidewith1(S8)#12x3/4”PanScrewasshowning.34.6and34.8.
Hardware
3 x #12 x 1” Pan Screw
1 x #12 x 3/4” Pan Screw
S6
Other Parts
2 x Spiral Wave Brackets
Spiral Wave Bracket
3632140
Short Upright
spiral wave slide
#12 x 3/4" Pan
S8
1X
bracket
3X
S6
#12 x 1" Pan
spiral wave slide
bracket
3632137
Sl Upright
Fig. 34.6
Fig. 34.8
Fig. 34.7
Fig. 34.9
Bottom
Section
Bottom
Section
2137
SpiralWave
Bracket
SpiralWave
Bracket
SpiralWave
Bracket
S6
S6
S6
2140
S8
S8
