2.4 Chamber rear – KB / KB-UL 53 / 115 (E4)
(6)
(2)
(3)
(5)
(7)

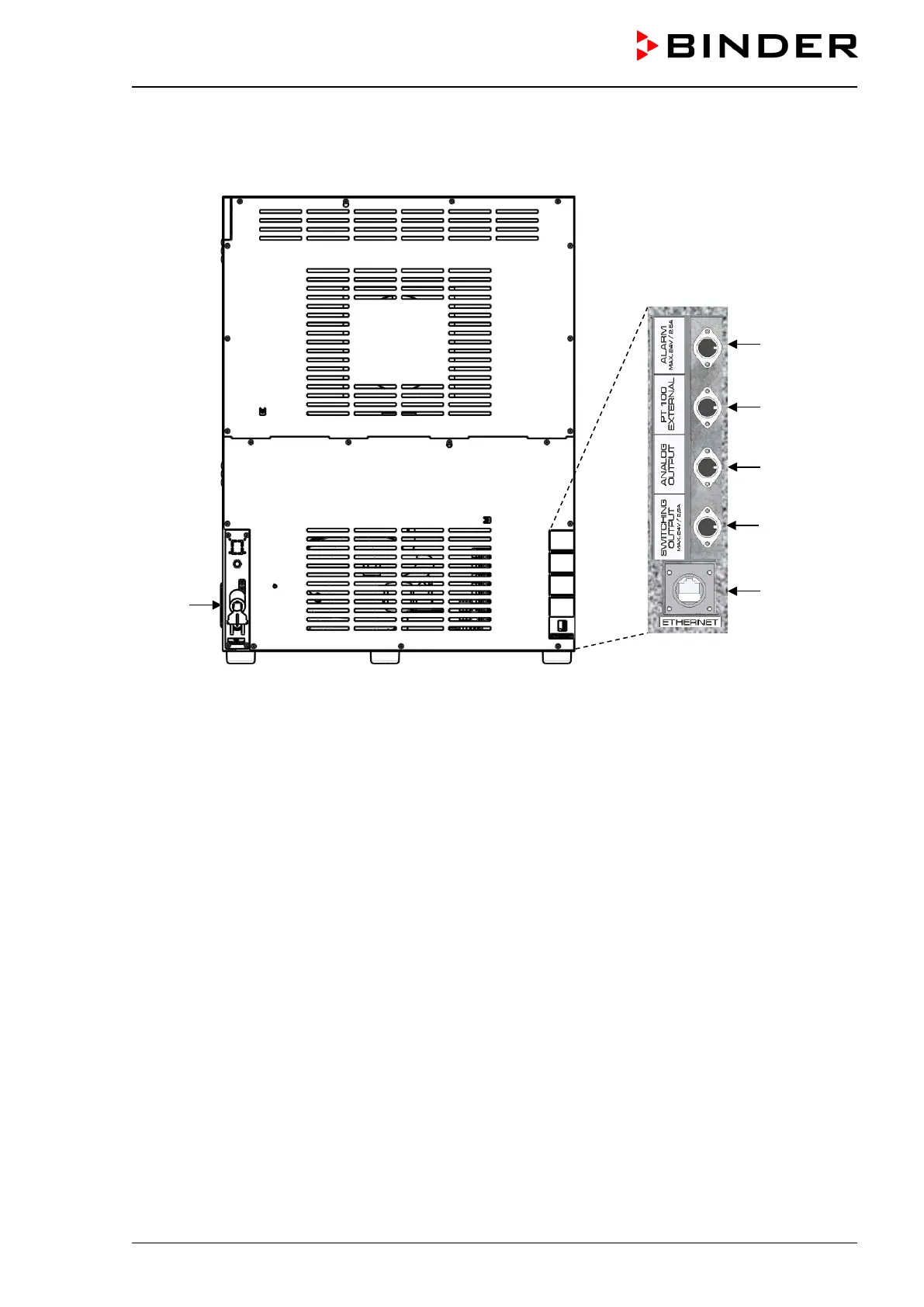

Figure 8: Chamber rear with position of options (example)
(2) DIN-socket for additional Pt 100 temperature sensor (may be available via BINDER INDIVIDUAL
Customized Solutions)
(3) DIN socket for analog output 4-20 mA (option)
(4) (not used)
(5) DIN-socket for zero-voltage relay control outputs (may be available via BINDER INDIVIDUAL Cus-
tomized Solutions)
(6) DIN-socket for zero-voltage relay alarm output (option)
(7) Ethernet interface for computer communication
(8) Power cable
