4.2 Mounting the flexible tilt protection kit
Use the supplied flexible tilt protection kit in addition to the spacers for wall distance (chap. 4.1). This will
prevent the chamber from tilting when the door is open.
NOTICE
Danger of damages caused by tilting of the chamber when the door is open.
Damage to the chamber.
 Fix the chamber to a wall with supplied flexible tilt protection kit
Scope of delivery:
• 4 Torx screws (spare parts)
• 4 tilt protection holders
• 4 securing straps (2 spare parts)
Mounting on device side:
• Remove two screws on the upper part of the rear wall (a)
• Fix two of the supplied tilt protection holders, each centrally with one of these screws (b).
Mounting on wall side
• Fix two of the supplied tilt protection holders in the appropriate distance, each with two screws Ø 6mm
suitable for the wall (c)
Connection with the securing straps
• On each side, thread one of the supplied securing straps through the provided slots of a device side
and a wall side tilt protection holder

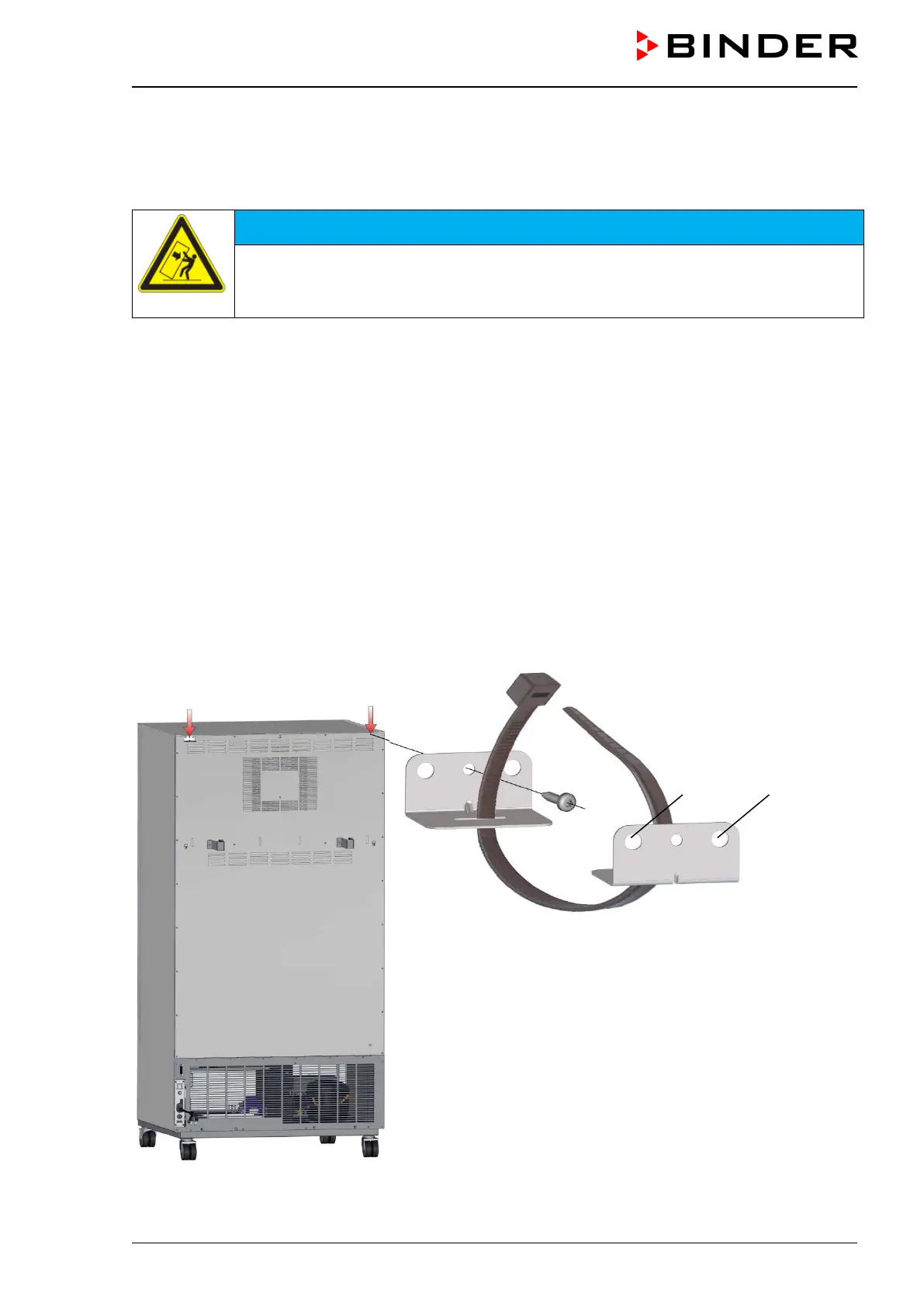

Figure 11: Rear chamber (example KB 400) and mounting the flexible tilt protection kit
(a)
(a)
(b)
(c) (c)
