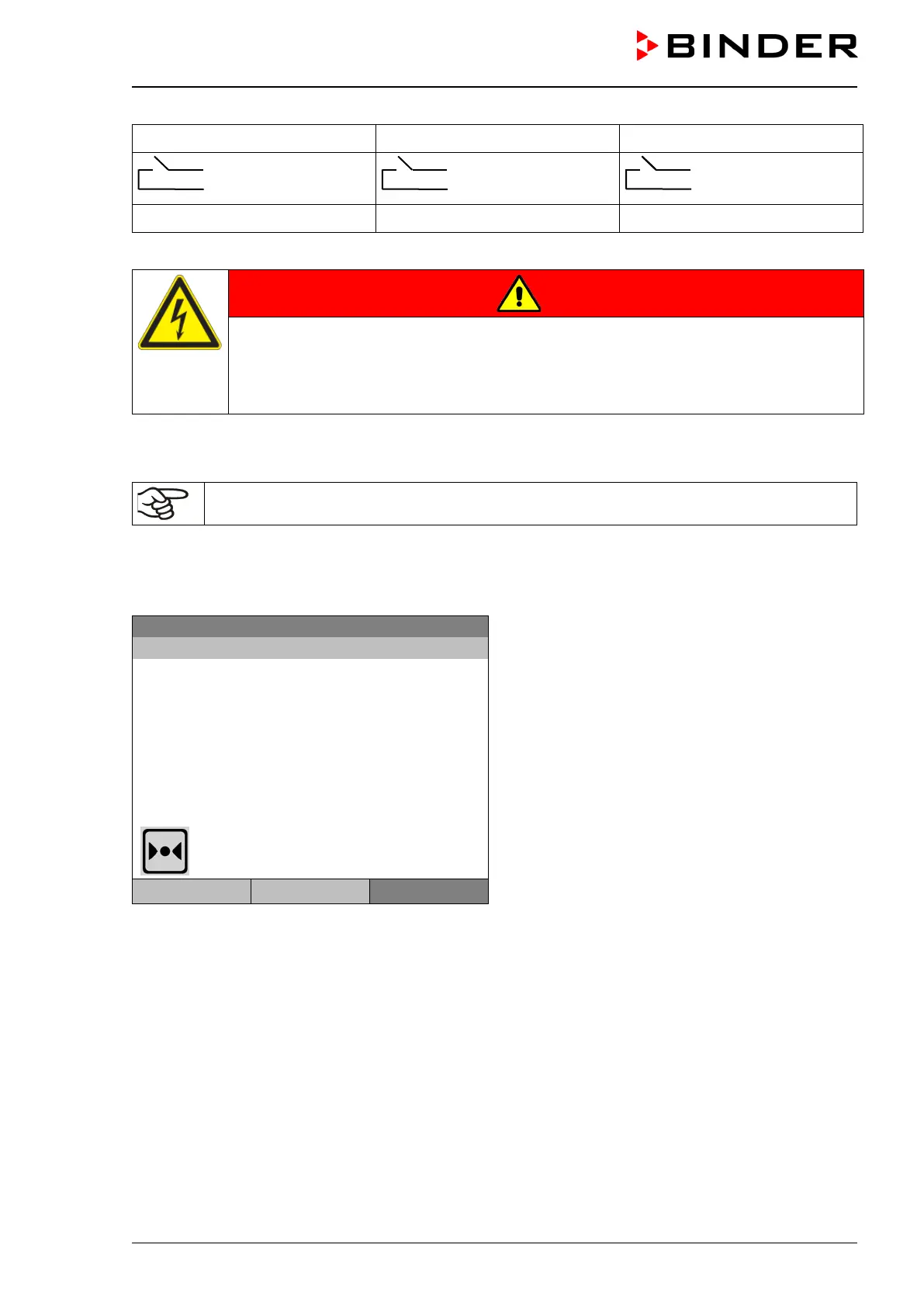

Relay output 1 Relay output 2 Relay output 3
Pin 1: Pin
Pin 2: Make
Pin 3: Pin
Pin 4: Make
Pin 5: Pin
Pin 6: Make
Switching state On: 1xx Switching state On: x1x Switching state On: xx1
Maximum loading capacity of the switching contacts: 24V AC/DC – 2.5 A
DANGER
Electrical hazard through overload of contacts.
Deadly electric shock. Damage to the switching contacts and connection socket.
∅ Do NOT exceed the maximum switching load of 24V AC/DC – 2.5A.
∅ Do NOT connect any devices with a higher loading capacity.
19.6 Object temperature display with flexible Pt 100 temperature sensor (option)
You can turn on and off the object temperature display via the controller menu (chap. 7.4).
The object temperature display enables the determination of the actual temperature of the charging material
during the whole process. The object temperature is measured via a flexible Pt100 temperature sensor and
can be viewed at the controller display. You can immerse the sensor top protective tube of the flexible Pt
100 into liquid substances.
Fixed value
08.03.2015 05:05:06
Initial view with object temperature display
(sample values)
Setpoint
Actual value
Temperature [°C]
25.0
25.2
Fan [%]
100.0
Obj. Temp [°C]
25.1
User Quick menu
Menu
The object temperature data are put out together with the data of the temperature controller and can be
documented by the APT-COM™ 4 Multi Management Software (option, chap. 19.1) developed by BINDER.
Technical data of the Pt100 sensor:
• Three-wire technique
• Class B (DIN EN 60751)
• Temperature range up to 320 °C / 608 °F
• Stainless steel protective tube with a length of 45 mm / 1.78 in, material no. 1.4501
