Analog Signal Settings
The Analog Signal Settings configure the scale factors and operating modes of the
analog signal outputs for velocity, torque, and position. With this configuration
capability, the analog signals can be custom tailored to provide the best and most
appropriate analog data for a wide variety of uses.

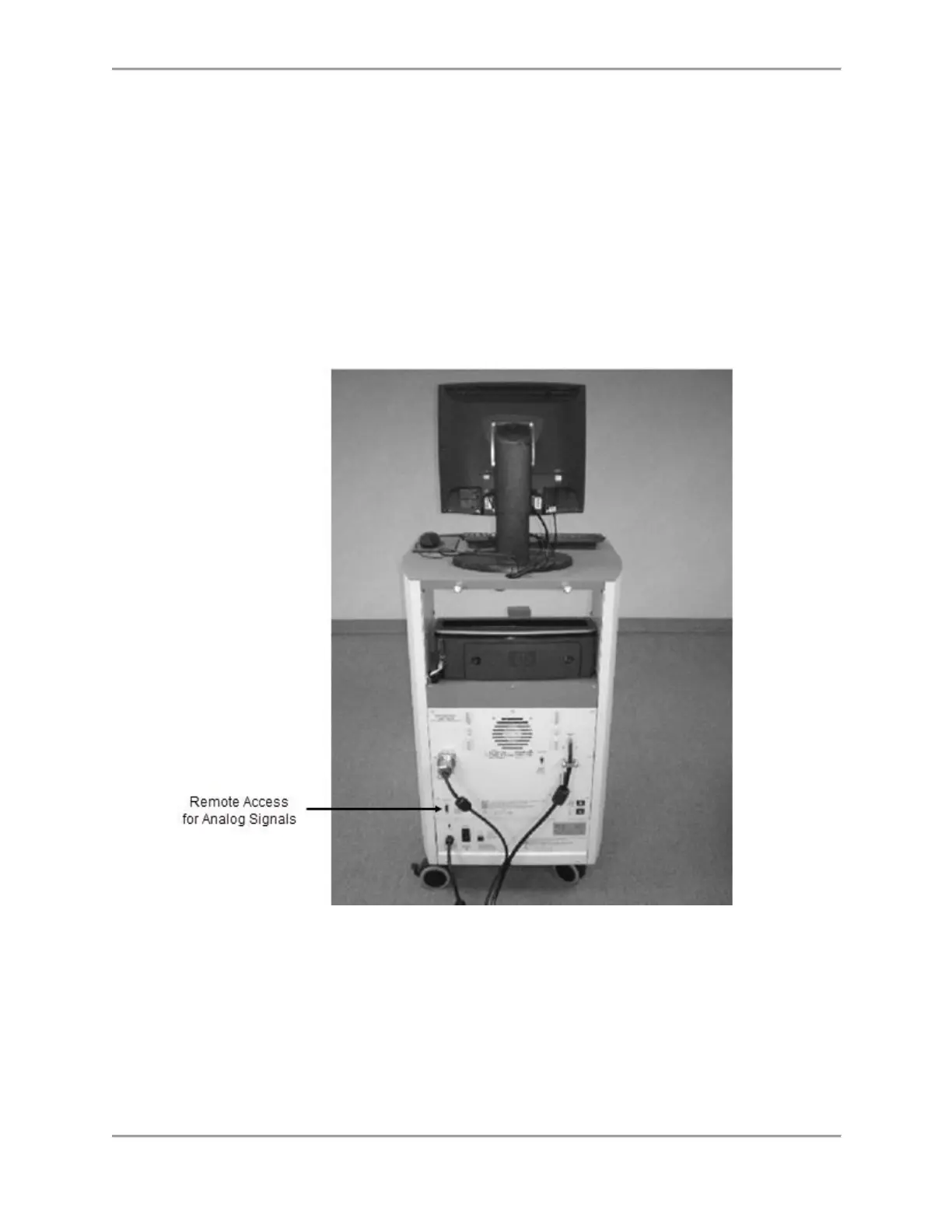

The Remote Access port is an output of analog signals of velocity, torque, and position
data in real-time directly from the monitor control Digital Signal Processor (DSP). In
addition, a synchronization pulse is issued whenever the real-time data is updated. This
alerts the monitoring equipment that the real-time data output has changed.
Once the settings are made, the Analog Signal Settings will be permanently set in the
System 4 even if the unit is completely shut down and restarted. The current settings
can always be verified by running the utility – it will show the current active settings.
Status information on the system is displayed on the top of the screen for reference. As
long as the status is “Initiated” (online), the current displayed Analog Signal Settings are
accurate.
