biosystems PhD Lite - Exploded View and Parts List

61

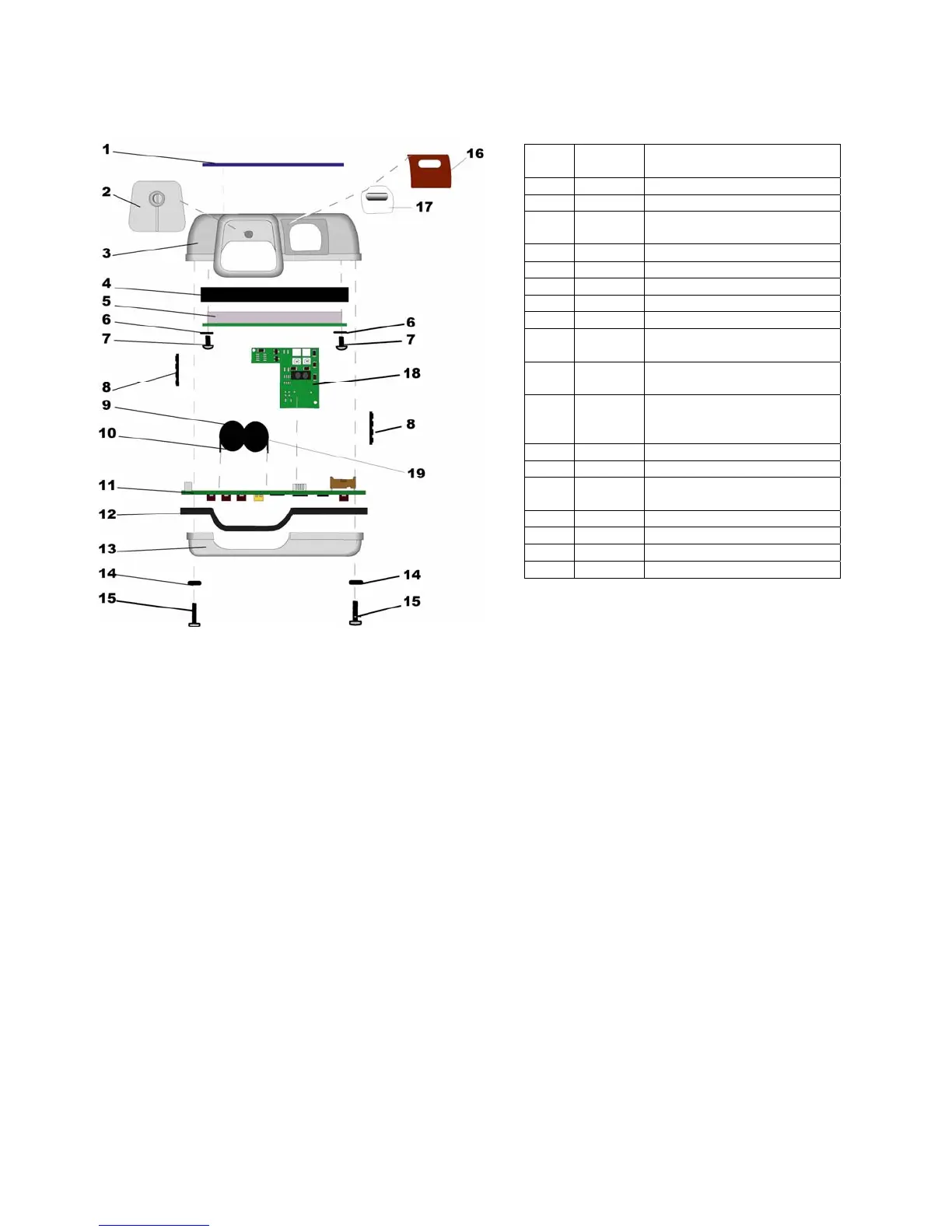

6.6 Exploded view and parts list
Chart 1
Ref
#
Part
Number
Description
1 27-114 Display Overlay
2 35-0188 Battery Door Assembly
3 35-0175
35-0205
Alkaline Top Case Assembly
NiMH Top Case Assembly
4 10-327 LCD Insulator
5 35-0187 Graphic LCD Display
6 05-1123 Polycarbonite Fiber Washer
7 05-1118 Screw For Display
8 10-331 Side Grip
9 10-334 Upper Alkaline Battery
housing
10 10-335 Lower Alkaline Battery
housing
11 35-0240
35-0241
Alkaline Main Board Phd
Lite
NiMH Main Board Phd Lite
12 34-046 Gasket Main Housing
13 35-0172 Lower Case Assembly
14 17-036 O-ring for Main Housing
screws
15 05-1117 Main Housing Screw
16 31-255 IRDA overlay
17 10-332 IRDA Lens
18 35-0237 Alarm Board Phd Lite
