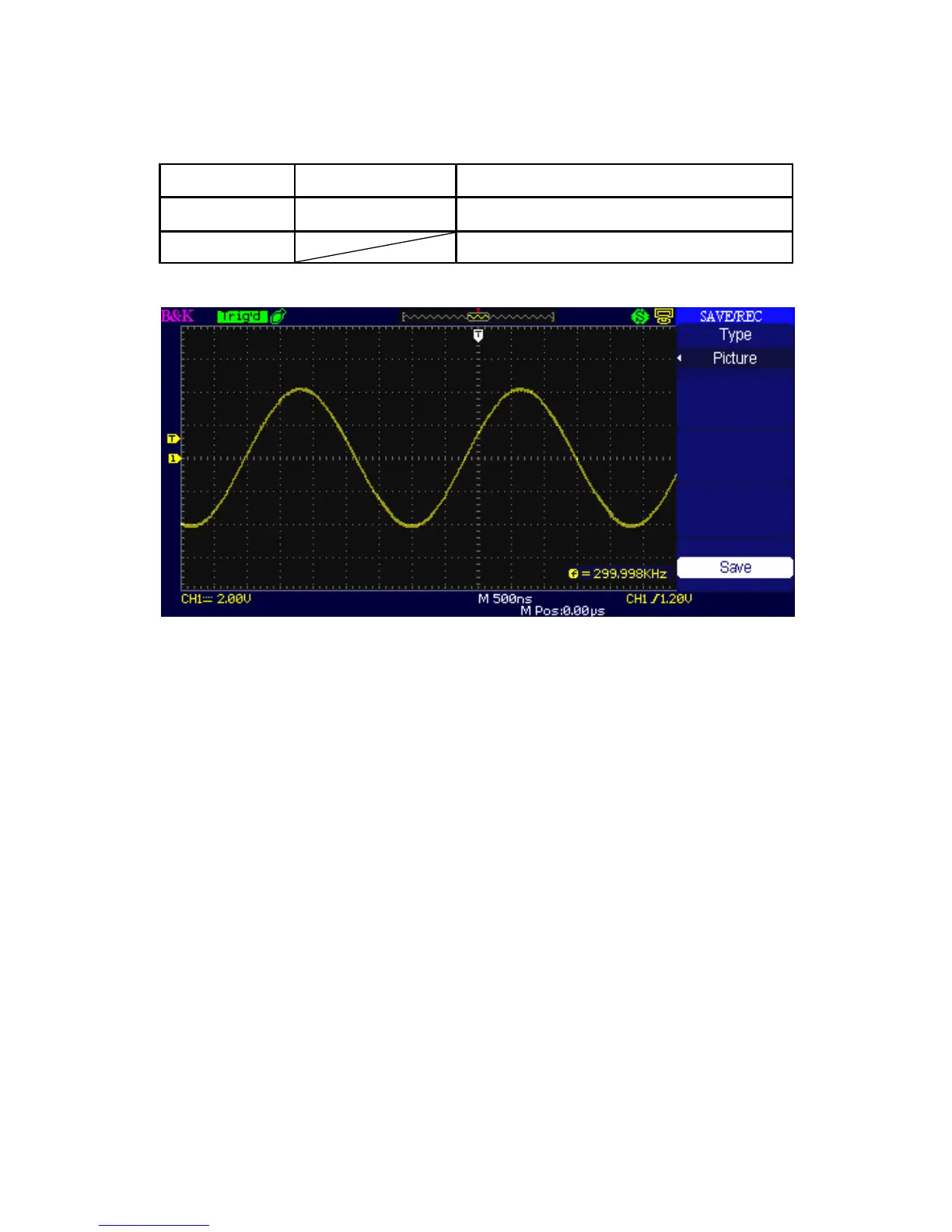

Figure 3.52 – Save Picture Screen
To save waveform images to USB flash drive, follow the steps
below:
1. Select the screen image that you want.
2. Press the “SAVE/RECALL” button to enter “SAVE/RECALL”
menu.
3. Press the “Type” option button to select “Picture”.
4. Insert a USB flash drive to the USB host port of the
oscilloscope and wait until the oscilloscope has initialized
the USB flash drive (about five seconds).
5. Press the “Print Key” option button to save the
screenshot image to the USB flash drive.
6. Alternatively, you can customize the file name to save
into by pressing the “Save” option.
7. The “SAVE ALL” menu will display. Select “New File” and
enter the filename.
