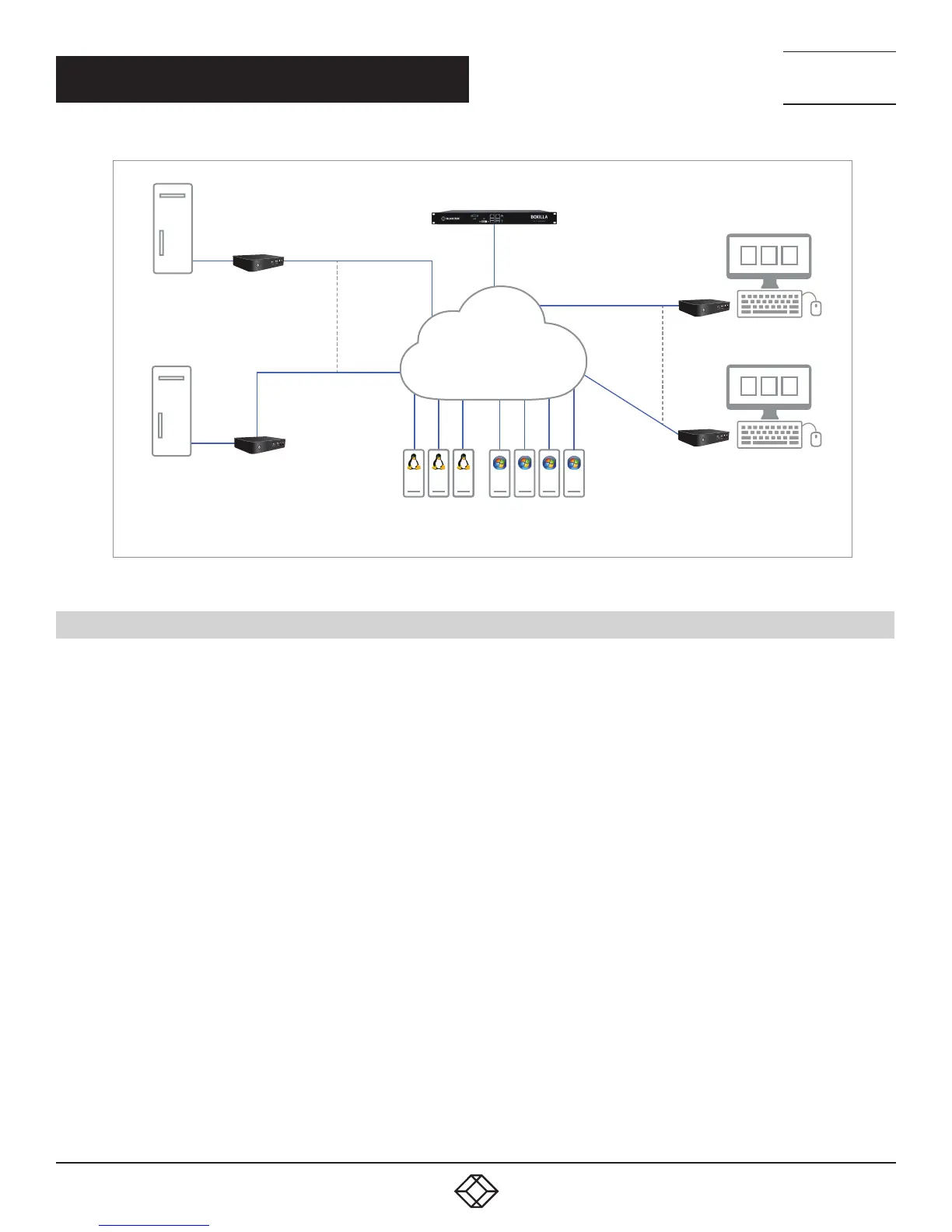

FIGURE 1. EMERALD OR INVISAPC SYSTEM EXAMPLE—INCLUDING PHYSICAL AND VIRTUAL DESKTOPS
2.1 OVERVIEW OF BOXILLA CONCEPTS
The Emerald family is composed of Receivers, Transmitters and Switches. The Emerald or InvisaPC family is composed of
Receivers, Transmitters and Managers. Boxilla is the Enterprise class Manager for Emerald or InvisaPC and Modular and Compact
DKM KVM Matrix Switches. The core design of the Emerald or InvisaPC architecture is that there is no single point of failure. This
means that even if Boxilla goes off-line, the Emerald or InvisaPC system will continue to function—allowing users to login, make
connections and operate the system as normal. When the Boxilla manager comes back on line, the various devices will update
Boxilla with their performance and security statistics from the period it was offline.
