Blackmagicdesign ATEM Series User Manual

连接
ATEM Talkback Converter 4K
首先，您需要开启电源，然后连接摄影机、耳麦和切换台。如果您想使用不带耳机的对讲功能，也可以连
接外接麦克风，比如鹅颈麦克风。
连接电源

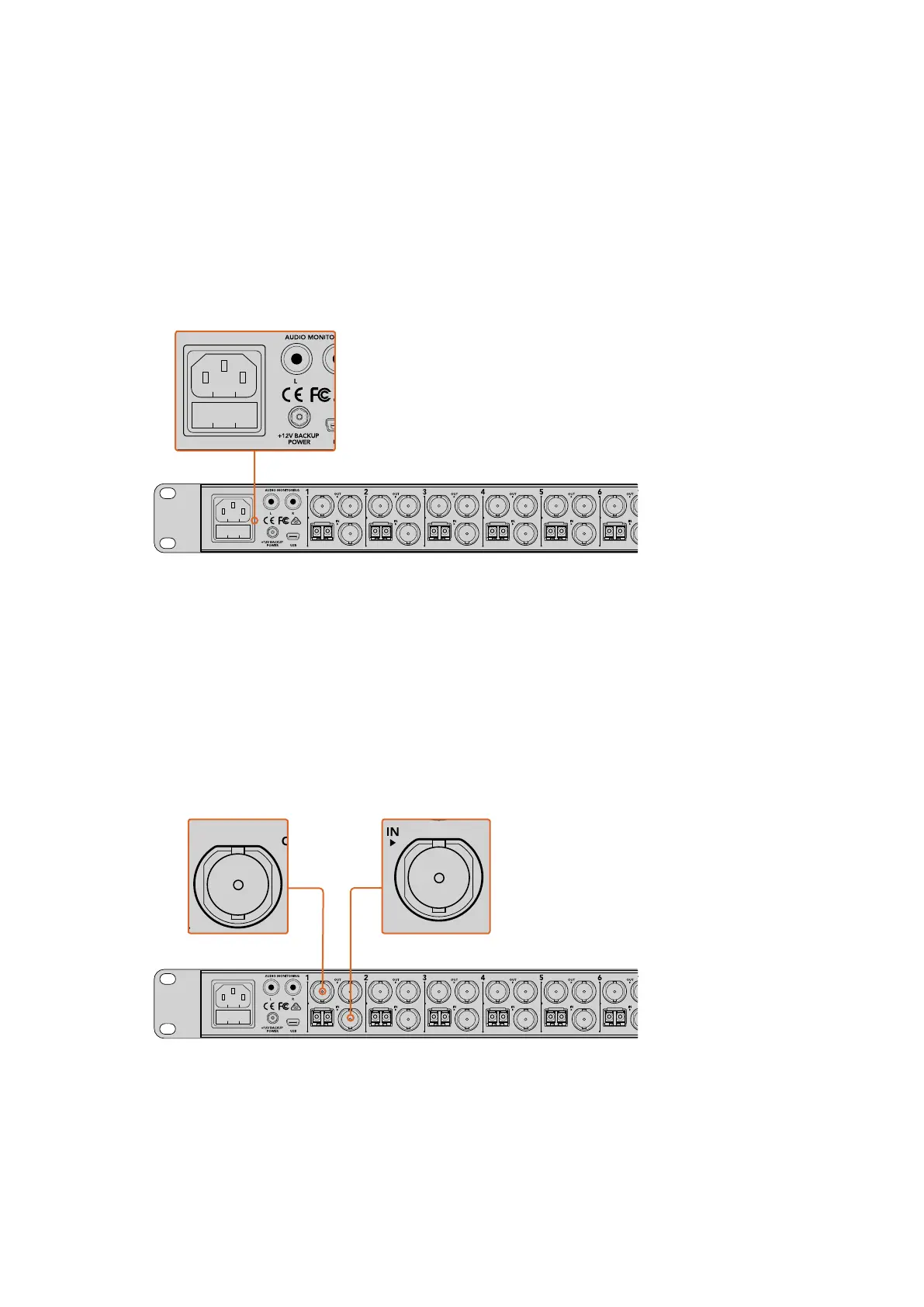

使用标准 IEC 线缆通过 ATEM Talkback Converter 4K 的主电源输入连接电源。您还可以将电源适配器
或外置摄影机电池连接至 12V 到 31V 电源输入上。两个电源输入能为您提供冗余电源连接方案选择，以便
在发生电源故障或意外掉电时有所应对。
PGM SDI MIC H/PHONE
SDI 1 OUT CAM SDI
CAM OPT
OUT/IN
SDI 2 OUT CAM SDI
CAM OPT
OUT/IN
SDI 2 OUT CAM SDI
CAM OPT
OUT/IN
SDI 4 OUT CAM SDI
CAM OPT
OUT/IN
SDI 5 OUT CAM SDI
CAM OPT
OUT/IN
SDI 6 OUT CAM SDI
CAM OPT
OUT/IN
SDI 7 OUT CAM SDI
CAM OPT
OUT/IN
SDI 8 OUT CAM SDI
CAM OPT
OUT/IN
PGM SDI MIC H/PHONE
SDI 1 OUT CAM SDI
CAM OPT
OUT/IN
SDI 2 OUT CAM SDI
CAM OPT
OUT/IN
SDI 2 OUT CAM SDI
CAM OPT
OUT/IN
SDI 4 OUT CAM SDI
CAM OPT
OUT/IN
SDI 5 OUT CAM SDI
CAM OPT
OUT/IN
SDI 6 OUT CAM SDI
CAM OPT
OUT/IN
SDI 7 OUT CAM SDI
CAM OPT
OUT/IN
SDI 8 OUT CAM SDI
CAM OPT
OUT/IN
通过主电源接口，或
12V
到
31V
电源接口均可连接电源。
连接摄影机
ATEM Talkback Converter 4K的后面板上设有8组摄影机接口，分别标有1-8号。
1
将摄影机分别连接到每个“
Cam SDI in
”接口上。
2
将
ATEM Talkback Converter 4K
的“
Cam SDI out
”连接到摄影机的节目
SDI
输入。
当搭配使用
ATEM Camera Converter和ATEM Talkback Converter 4K时，请务必注意：
对讲和
Tally信号只会通过光纤嵌入到SDI信号上。
3
将带有编号的
SDI
输出，例如“
SDI 1 Out
”，连接到切换台上相应的摄影机输入上。
PGM SDI MIC H/PHONE
SDI 1 OUT CAM SDI
CAM OPT
OUT/IN
SDI 2 OUT CAM SDI
CAM OPT
OUT/IN
SDI 2 OUT CAM SDI
CAM OPT
OUT/IN
SDI 4 OUT CAM SDI
CAM OPT
OUT/IN
SDI 5 OUT CAM SDI
CAM OPT
OUT/IN
SDI 6 OUT CAM SDI
CAM OPT
OUT/IN
SDI 7 OUT CAM SDI
CAM OPT
OUT/IN
SDI 8 OUT CAM SDI
CAM OPT
OUT/IN
PGM SDI MIC H/PHONE
SDI 1 OUT CAM SDI
CAM OPT
OUT/IN
SDI 2 OUT CAM SDI
CAM OPT
OUT/IN
SDI 2 OUT CAM SDI
CAM OPT
OUT/IN
SDI 4 OUT CAM SDI
CAM OPT
OUT/IN
SDI 5 OUT CAM SDI
CAM OPT
OUT/IN
SDI 6 OUT CAM SDI
CAM OPT
OUT/IN
SDI 7 OUT CAM SDI
CAM OPT
OUT/IN
SDI 8 OUT CAM SDI
CAM OPT
OUT/IN
PGM SDI MIC H/PHONE
SDI 1 OUT CAM SDI
CAM OPT
OUT/IN
SDI 2 OUT CAM SDI
CAM OPT
OUT/IN
SDI 2 OUT CAM SDI
CAM OPT
OUT/IN
SDI 4 OUT CAM SDI
CAM OPT
OUT/IN
SDI 5 OUT CAM SDI
CAM OPT
OUT/IN
SDI 6 OUT CAM SDI
CAM OPT
OUT/IN
SDI 7 OUT CAM SDI
CAM OPT
OUT/IN
SDI 8 OUT CAM SDI
CAM OPT
OUT/IN
将摄影机连接到
ATEM

Talkback

Converter

4K
的摄影机
SDI
输入上。安装了光纤
SFP
模块后，
您还可以通过光纤将摄影机连接到
ATEM

Talkback

Converter

4K
。将
ATEM

Talkback

Converter

4K
的“
SDI

out
”连接到切换台。
