Mechanical Dock Leveler – M and FMC Group 03, Section 01, Page 9
Issue Date: 10/01/01, Rev. 0 (Part #038-550E)

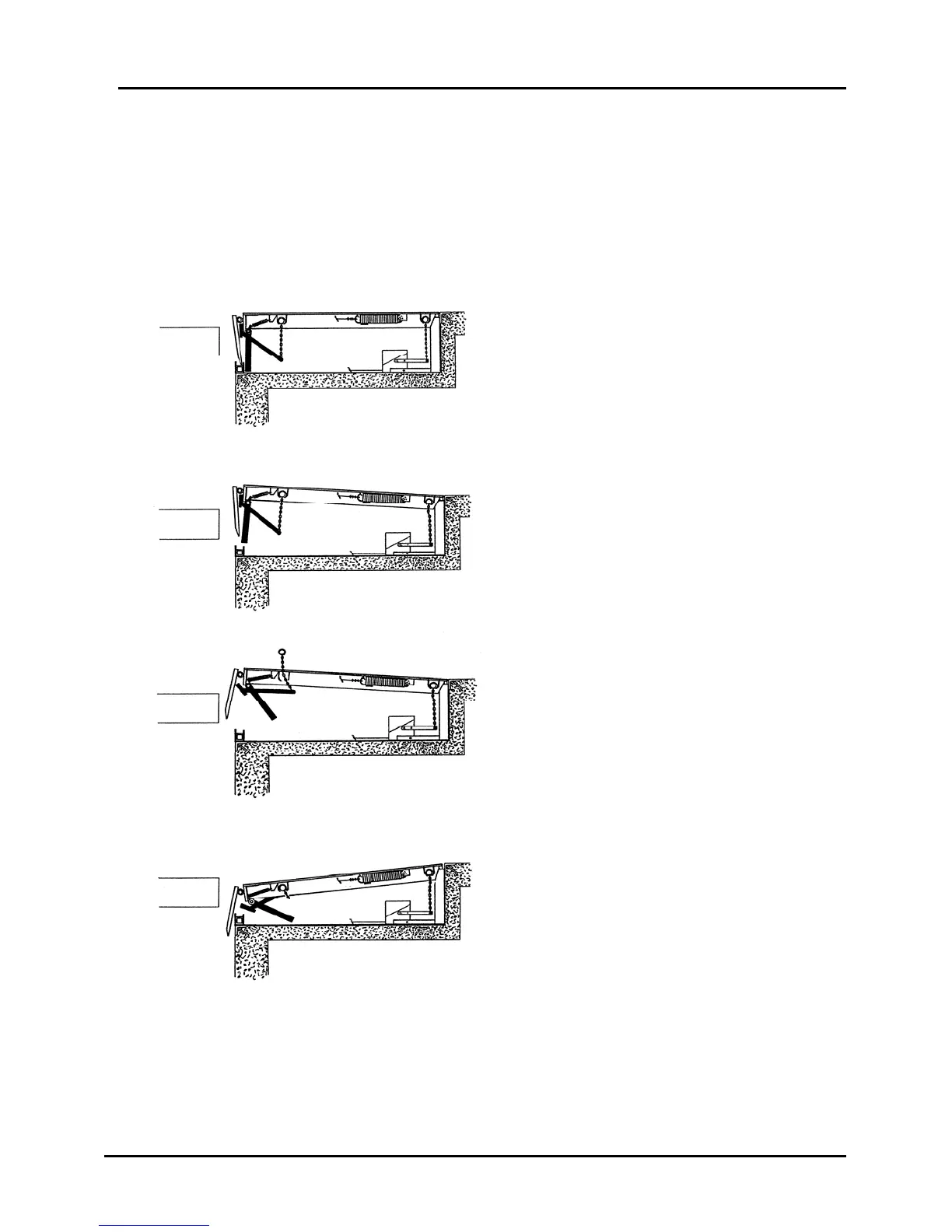

BELOW LEVEL FEATURE
Fall Safe support legs prevent
service of below dock height truck
bed and / or end load.
Raise dock leveler approximately
4”. Pull and hold control ring and
chain.
Pull and hold control ring and chain
located in front left corner of deck.
Legs retract and lip moves out
beyond lip keepers.
Hold tension on control chain and
walk the deck down. Support legs
will retract further, as required.
Deck will lower to below level stops
(not shown for clarity of other
components). End or below level
loads may be serviced.
A vehicle loadbed that is lower than dock height may be serviced by using
the below level feature.
