Blue Giant FMC - BACK FRAME WELDMENT Parts Lists

Mechanical Dock Leveler – M and FMC Group 12, Section 04, Page 1
Issue Date: 8/30/00, Rev. 0 (Part #038-550E)

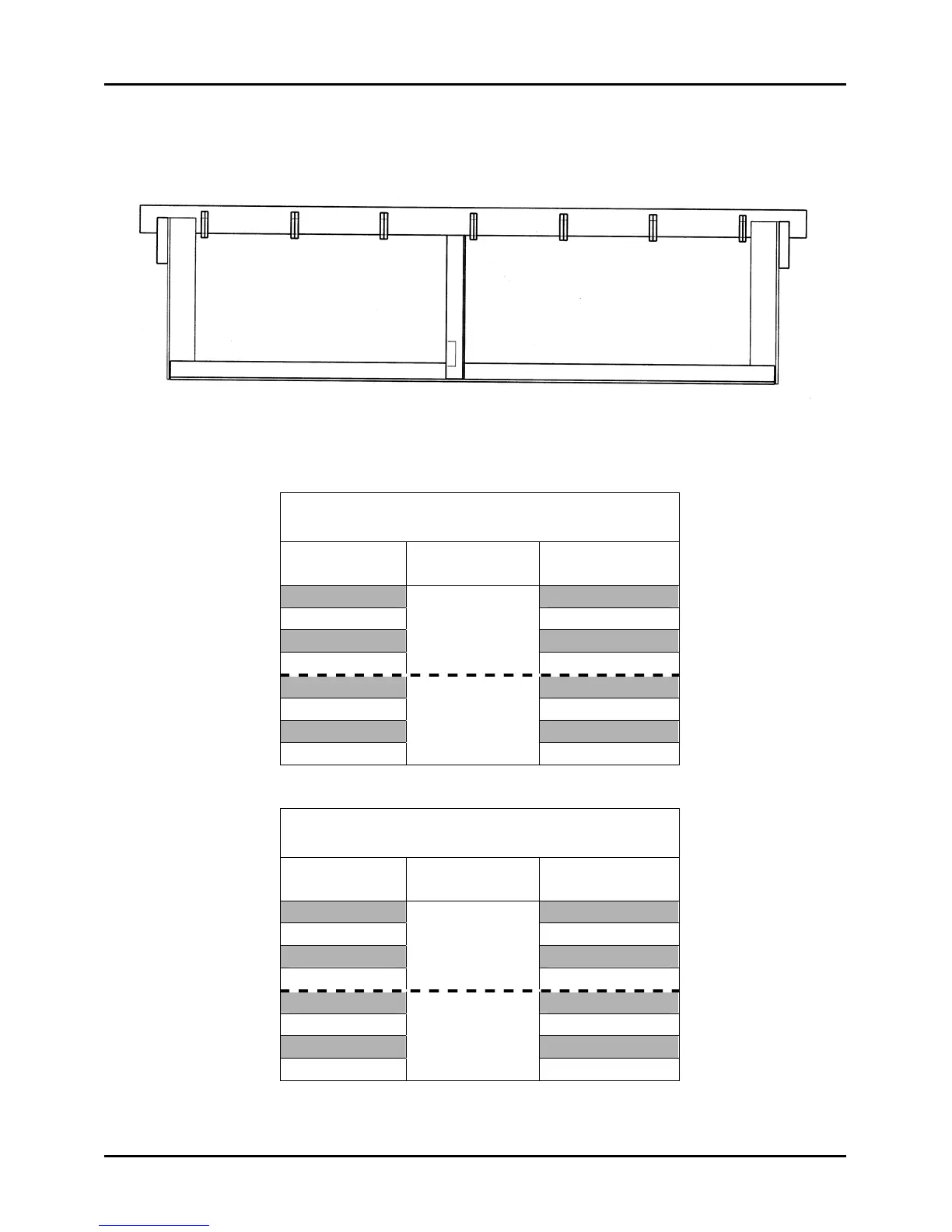

BACK FRAME WELDMENT
Parts Lists
Standard 19” Height Frame
Deck
Width Capacity
Assembly
Part No.
5’ 781-577
6’ 781-577-1
6’ – 6” 781-577-2
7’
30,000 lbs.
to
35,000 lbs
781-577-3
5’ 781-577-4
6’ 781-577-5
6’ – 6” 781-577-6
7’
40,000 lbs.
to
50,000 lbs
781-577-7
Optional 23” Height Frame
Deck
Width Capacity
Assembly
Part No.
5’ 781-577-8
6’ 781-577-9
6’ – 6” 781-577-10
7’
30,000 lbs.
to
35,000 lbs
781-577-11
5’ 781-577-12
6’ 781-577-13
6’ – 6” 781-577-14
7’
40,000 lbs.
to
50,000 lbs
781-577-15
