Blue Giant FMC - HOLD DOWN SYSTEM ILLUSTRATION & PARTS LIST

Mechanical Dock Leveler – M and FMC Group 12, Section 02, Page 1
Issue Date: 10/01/01, Rev, 0 (Part #038-550E)

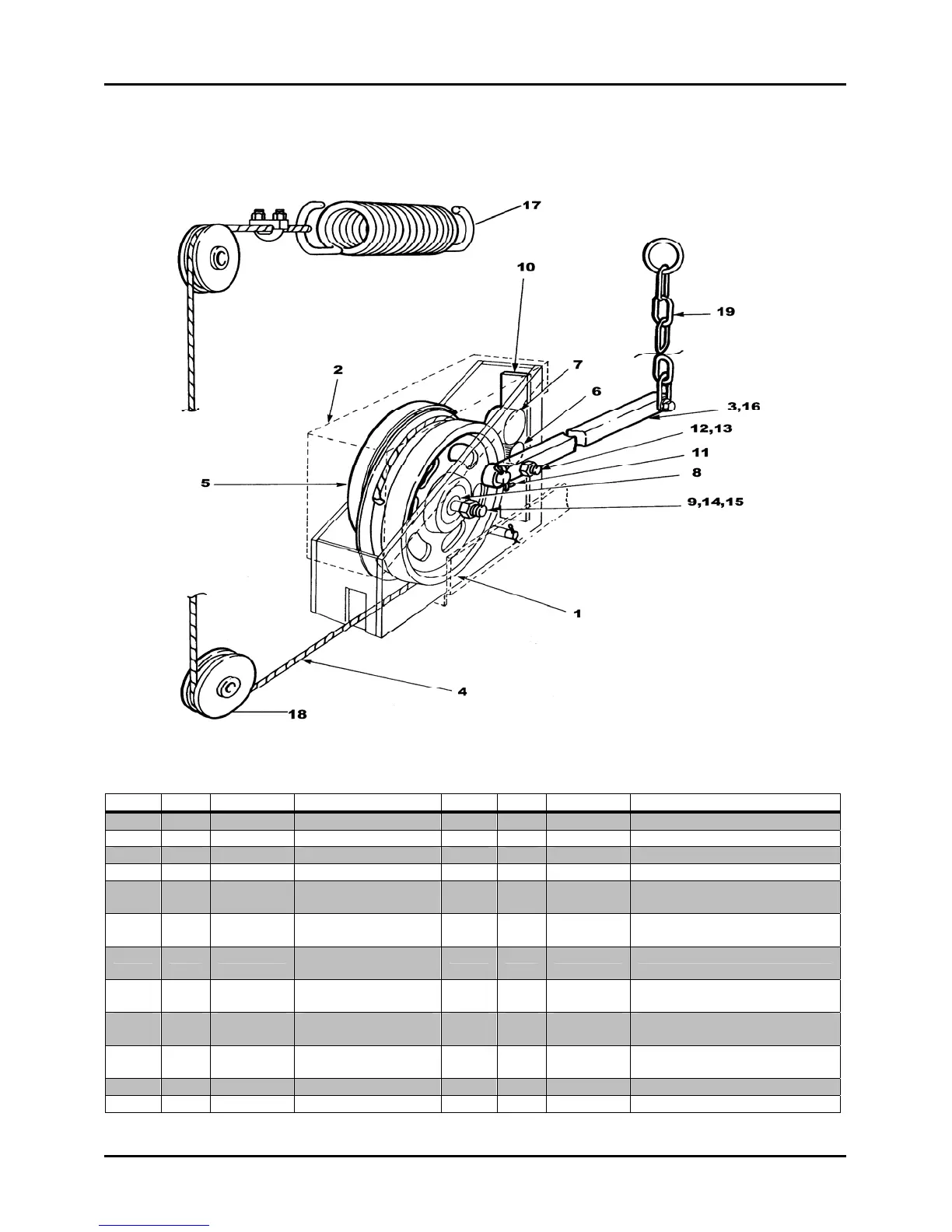

HOLD DOWN SYSTEM
ILLUSTRATION & PARTS LIST
ITEM QTY PART NO DESCRIPTION ITEM QTY PART NO DESCRIPTION
-- -- 788-037 Complete Assy 9 1 010-123 Hex Head Bolt
1 1 788-111 Rewind Wheel 10 1 113-089 Wear Strip
2 1 788-034 Cover Assembly 11 1 013-005 Spring Pin
3 1 788-055 Handle Assembly 12 1 113-090 Stud
4 1 788-118 Cable Assembly
- 6’ long Dock
13 1 011-508 Hex Nut
4 1 788-118 Cable Assembly
- 8’ long Dock
14 1 011-554 Nylock Nut
4 1 788-120 Cable Assembly
- 10’ long Dock
15 1 113-198 Sleeve
4 1 788-120 Cable Assembly
- 12’ long Dock
16 1 018-001 Bushing
5 1 113-143 Coil Spring 17 1 203-5011 Float Spring Assy – ‘C’ Series
25,000# Capacity Only
6 1 103-167 Lock Roller 17 1 203-5039 Float Spring Assy – All Others
Not Listed Above
7 1 113-085 Counter Weight 18 2 793-092 Cable Roller Assy
8 2 018-500 Bearing 19 1 788-197 Pull Chain Assy
