Group 08, Section 02, Page 2 Mechanical Dock Leveler – M and FMC
Issue Date: 10/01/01, Rev, 0 (Part #038-550E)
LOCK ROLLER and WEAR STRIP REPLACEMENT – cont’d
9) Place the hold down box cover, two
bolts, positioning the cover 1/16”
maximum above the rewind wheel
top surface. The box cover acts as
a cable retainer to prevent the hold
down cable jumping off the rewind
wheel, but must not interfere with
rewind wheel rotation.
10) Exit pit area. Remove safety stand
and lower maintenance strut.
Grasp the leading edge of the lip
and pull the deck down to
approximately 6” above dock
height. Lift the lip approximately 2”
to release the lip lock and then
lower to its hanging position.
See Figure 8.
11) Walk the deck down to stored
position. Cycle the unit up and
down several times, stopping the
deck at numerous positions above
and below dock height to assure
the hold down system will hold the
deck at any position.
The lip is heavy, handle with
care and be alert to pinch points

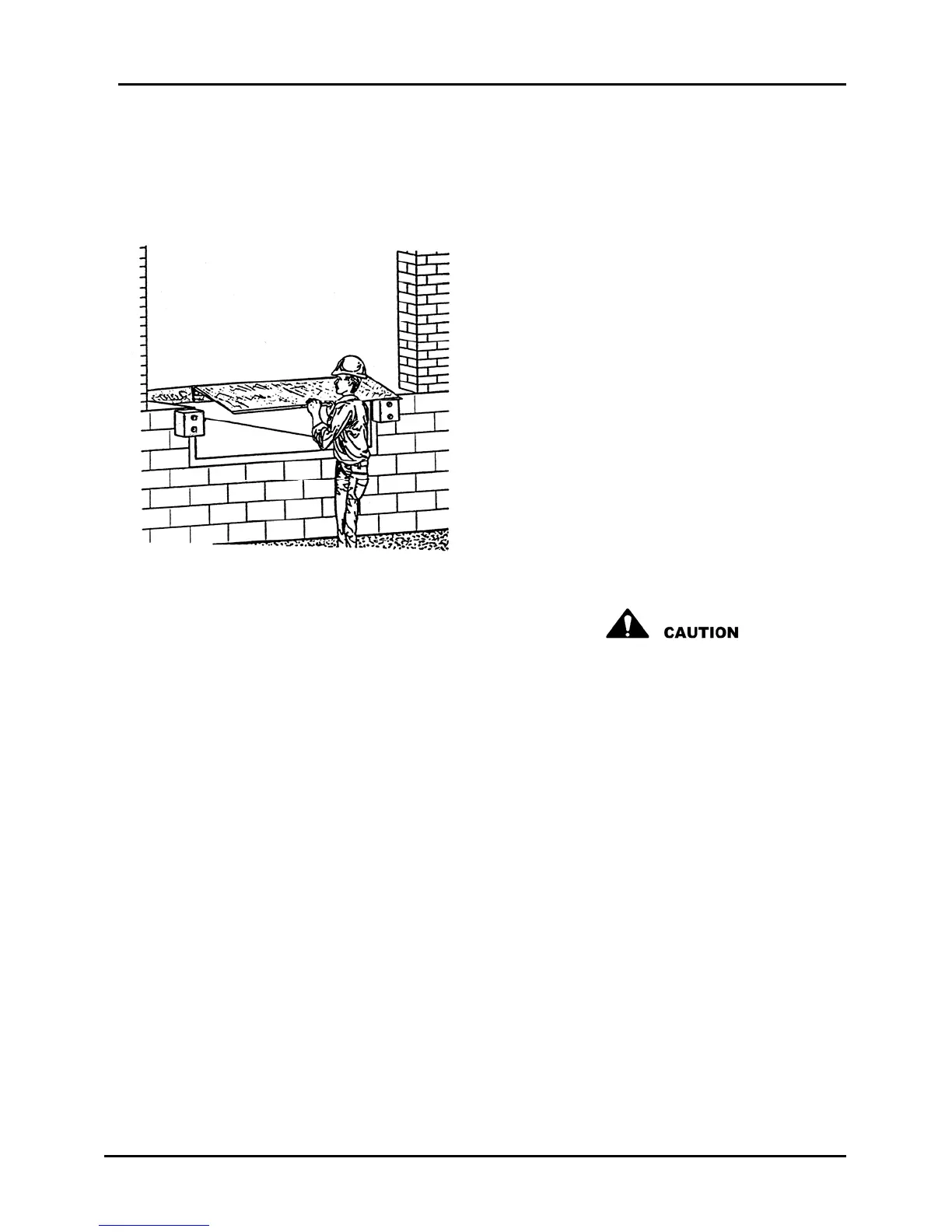

Figure 8
To Next Page
