Mechanical Dock Leveler – M and FMC Group 12, Section 04, Page 1
Issue Date: 8/30/00, Rev. 0 (Part #038-550E)

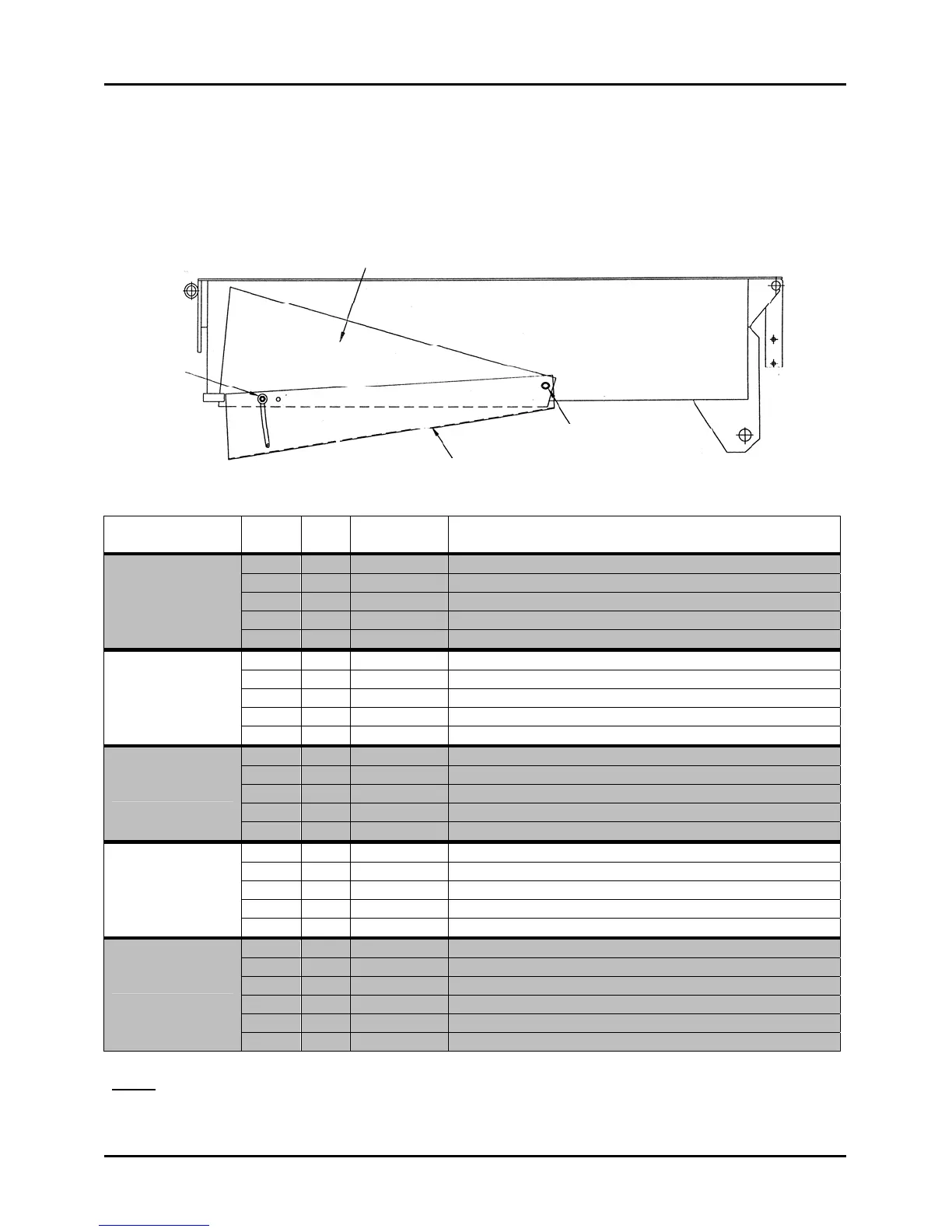

SAFETY SIDE SKIRTS
Illustration and Parts List
Used Prior to Serial Number 0043500
8, 9, 10
1, 2
5, 6, 7
3, 4
NOMINAL
DECK LENGTH
ITEM
QTY
PART NO.
DESCRIPTION
1 1 113-575 Lower Section - Left Side
2 1 113-574 Lower Section - Right Side
3 1 788-645 Upper Section - Left Side
4 1 788-644 Upper Section - Right Side
6 Feet
- 1 202-5005 Complete Assembly - 2 Upper & 2 lower
1 1 113-553 Lower Section - Left Side
2 1 113-552 Lower Section - Right Side
3 1 788-623 Upper Section - Left Side
4 1 788-622 Upper Section - Right Side
8 Feet
- 1 202-5005-1 Complete Assembly - 2 Upper & 2 lower
1 1 113-538 Lower Section - Left Side
2 1 113-537 Lower Section - Right Side
3 1 788-646 Upper Section - Left Side
4 1 788-647 Upper Section - Right Side
10 Feet
- 1 202-5005-2 Complete Assembly - 2 Upper & 2 lower
1 1 113-572 Lower Section - Left Side
2 1 113-571 Lower Section - Right Side
3 1 788-643 Upper Section - Left Side
4 1 788-642 Upper Section - Right Side
12 Feet
- 1 202-5005-3 Complete Assembly - 2 Upper & 2 lower
5 1 011-135 Capscrew - Button Head
6 1 011-543 Nut - Self-Locking
7 1 012-211 Washer - Flat
8 1 010-039 Capscrew - Hex
9 1 011-552 Nut - Self-Locking
All
10 1 012-252 Washer - Flat
Note: Sectional Safety Skirts, as shown above, not used on all units.
