THE FUEL SYSTEM
11111111111111111111111111 11'1"'11"'11111'1"
'11"
1"""" """'1"""'11'11""'11"""11'1"1
•

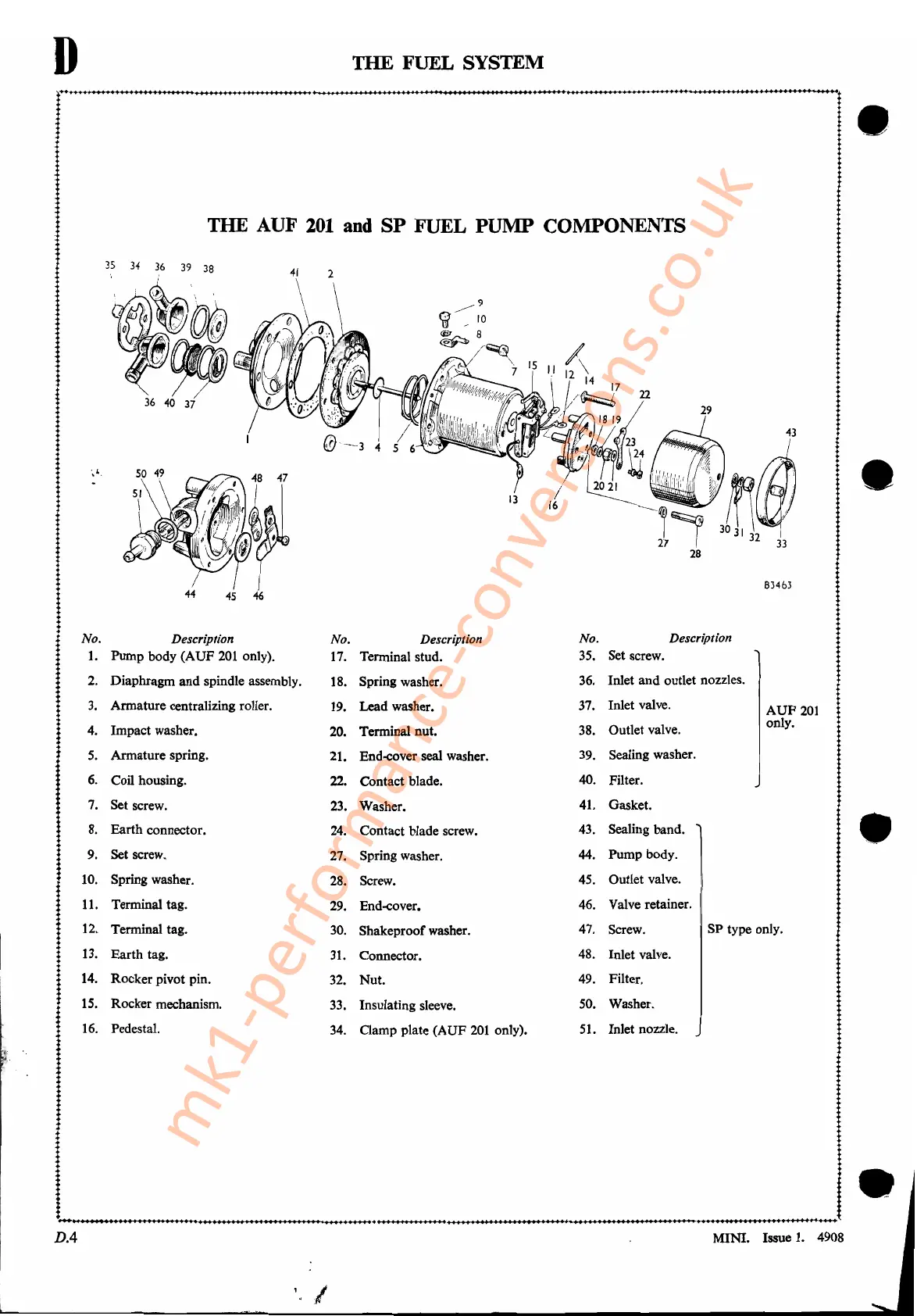

THE AUF 201 and SP FUEL PUMP COMPONENTS
•
29
83463
16
;<
1I 12 \
\
.14
17
/~ 22
~ 1819
8 ~r ~ 43
wr: ~ ' •...
----- • ~ ;.'
1'1 303132jJ
28
No. Description
35. Set screw~
36. Inlet and outlet nozzles.
No. Description
1. Pump body (AUF 201 only).
2.
Diaphragm and spindle assembly.
3. Armature centralizing roller.
4.
Impact washer.
5.
Armature spring.
6. Coil housing.
7. Set screw.
8.
Earth connector.
9. Set screw.
10. Spring washer.
11. Terminal tag.
12. Terminal tag.
13.
Earth tag.
14. Rocker pivot pin.
15. Rocker mechanism.
16. Pedestal.
No. Description
17. Terminal stud.
18. Spring washer.
19.
Lead washer.
20. Terminal Dut.
21. End-cover seal washer.
22. Contact blade.
23. Washer.
24. Contact blade screw.
27. Spring washer.
28. Screw.
29. End-cover.
30. Shakeproof washer.
31. Connector.
32.
Nut.
33. Insulating sleeve.
34. Oamp plate (AUF 201 only).
37. Inlet valve.
38. Outlet valve.
39. Sealing washer.
40. Filter.
41. Gasket.
43. Sealing band.
44. Pump body.
45. Outlet valve.
46. Valve retainer.
47. Screw.
48. Inlet valve.
49. Filter.
50. Washer.
51. Inlet nozzle.
AUF 201
only.
SP type only.
•
•
